DSP2540X DrayTek VigorSwitch P2540x




Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $20 or Express - $30

Want The Best Prices?

Request a quote

L2+ Managed PoE GbE Switch with 6 x 10GbE SFP+ slots, 48 x GbE ports, 1 x console port, Auto Surveillance & Voice VLAN, ONVIF-Friendly, Energy-Efficient Ethernet, and Central Switch Management

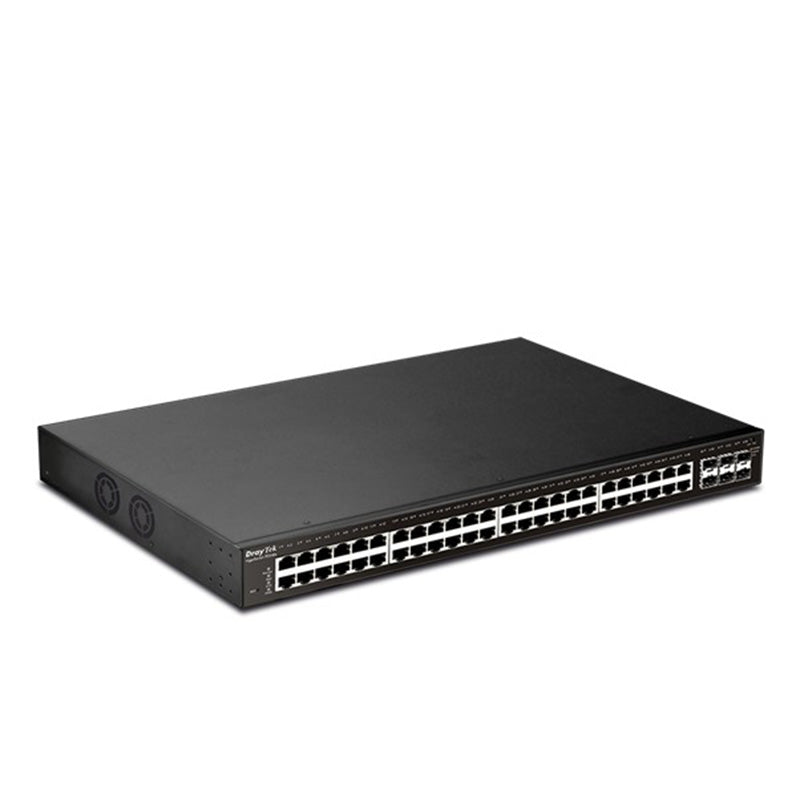

The DrayTek VigorSwitch P2540x is a Layer 2+ Managed 10GbE PoE switch. It has 48 x GbE PoE+ ports providing 400W power budget and 6 x 10GbE SFP+ slots.


Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, the VigorSwitch P2540x improves network efficiency and helps your network to work continuously even when the gateway is offline, making it ideally utilised as the core switch in SME/SMB.



L2+ Managed PoE Gigabit Switch: 48 x Gigabit Ethernet Ports with PoE+; 6 x 10GbE SFP+ slots & Up to 216 Gbps switching capacity
PoE ports 802.3at and 802.3af compliant providing up to 30W per port
PoE power budget of 400 watts
802.1q tagged VLANs (MAC address, and protocol)
Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
ONVIF (Open Network Video Interface Forum) compliant
QoS with 8 queues for traffic prioritisation
Enterprise-Level security features: 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping & Access Control (IPv4, IPv6 and MAC address)
Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
Authentication by local database, multiple RADIUS, and TACACS+ server
IEEE 802.3az (Energy-Efficient Ethernet) Compliant
Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
Port Mirroring & Link Aggregation
1 x RJ-45 console port
Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
Compliant with VigorConnect free software for local network management
Support VigorACS 2 Central Management System for remote network management
2 years back to base warranty

  • DrayTek VigorSwitch 2540X Series
  • View the Ports

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
