TL-FC311B-2 TP-Link Gigabit WDM Media Converter

Price:

$0.00$39.79

SKU: TL-FC311B-2


Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote


TP-Link TL-FC311B-2 Gigabit WDM Media Converter - IEEE 802.3u 1550nm 2KM (Compatible with TL-FC311A-2)

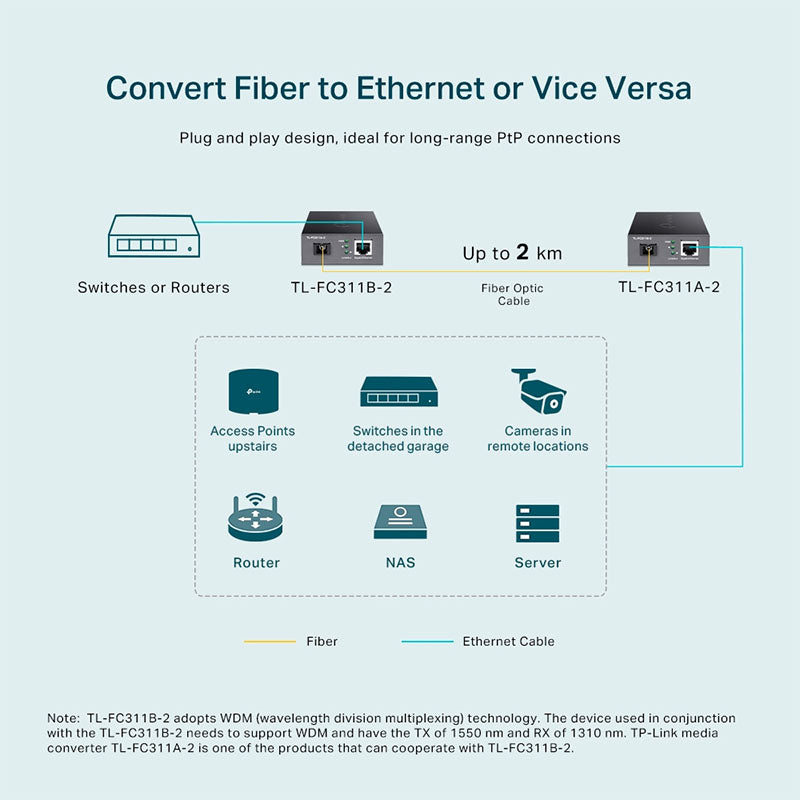

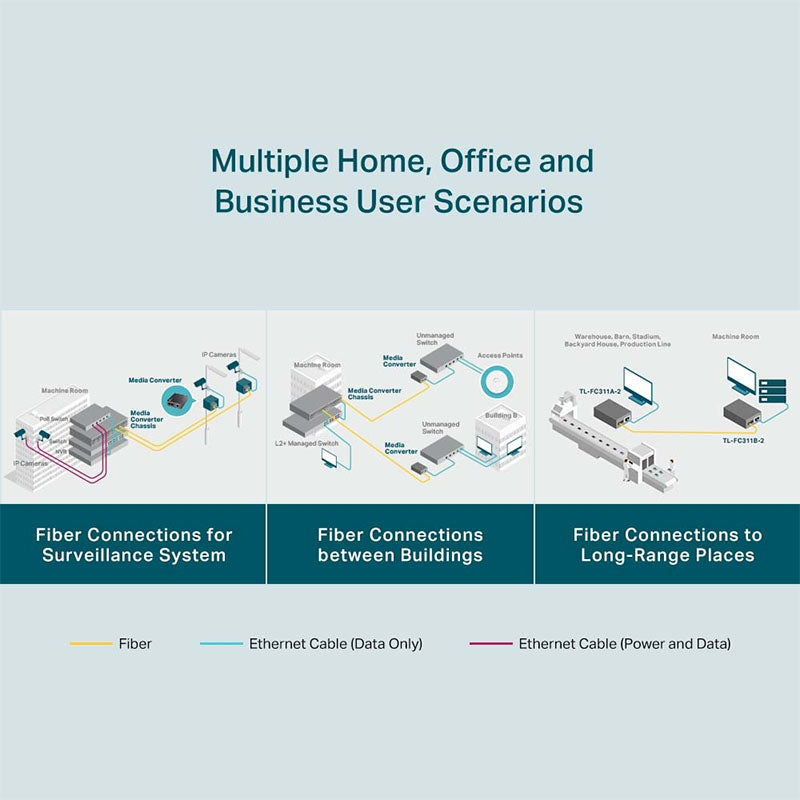

The TP-Link TL-FC311B-2 Gigabit WDM Media Converter provides a gigabit RJ45 port and a gigabit SC fibre port, which can convert between electrical and optical signals. Long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking.

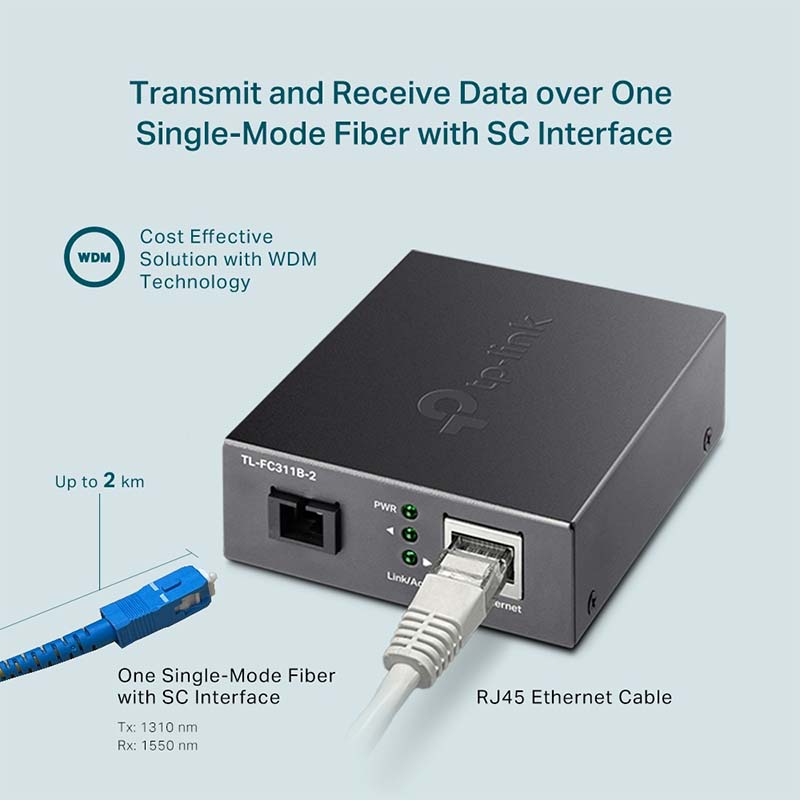

TL-FC311B-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single-mode fibre, which saves half of the cable deployment cost for customers.



TL-FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fibre. Therefore, the terminal device used in conjunction with the TL-FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm.



TP-Link another media converter  TL-FC311A-2 is one of the products that can cooperate with  TL-FC311B-2.



Features:

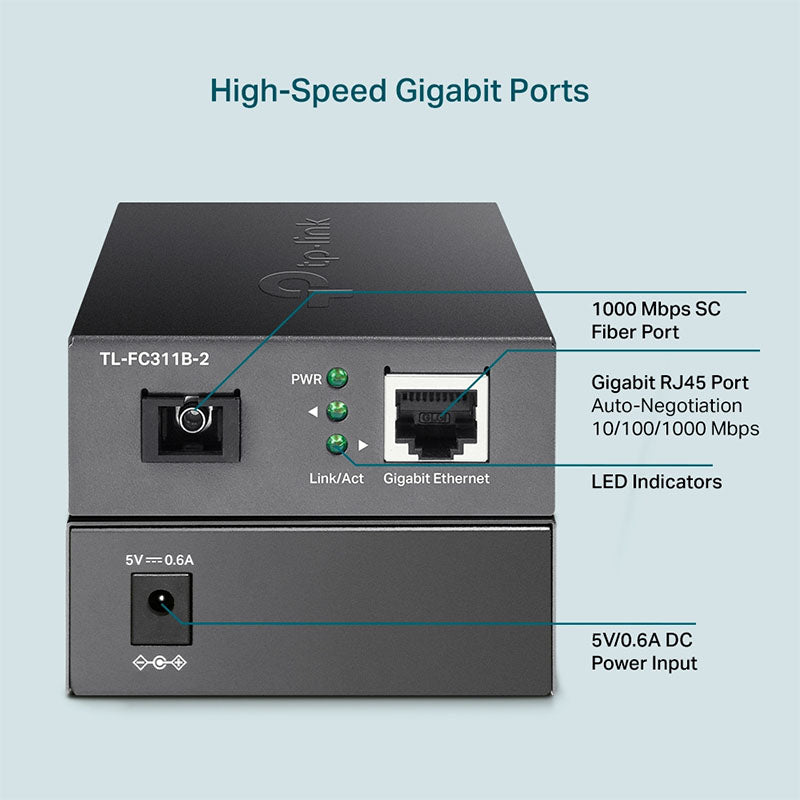

One (1) 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fibre
Extends fibre distance up to 2 km

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
