Dual-band 802.11ax (AX3600) Access Point with 4x4 MU-MIMO, Mesh Wi-Fi, 2.5G PoE PD port, and ceiling mount housing


Ceiling or Wall Mounted AX 3600 Mesh Wireless PoE Access Point VigorAP 1060C is a high-performance ceiling mounted Mesh Wireless solution, offering up to 3.6Gbps Dual-Band wireless performance, and up to 2.5Gb Ethernet connectivity. Its third dedicated radio helps with auto channel selection, and Wireless Intrusion Detection Systems (WIDS).


A high performance WiFi 6 product with combined speeds up to 3600Mbps. The VigorAP 1060C raw power and WiFi 6's improvements in lag, efficiency and interference compared to WiFi 5 give speed benefits for both 2.4GHz and 5GHz connected WiFi 6 clients.


DrayTek's Mesh system intelligently manages and links wireless VigorAPs, with guest network and VLAN support. Root AP allows to add further Vigor APs with a total number of 50.


The DrayTek Wireless app simplifies setting up your network. Optionally configure and monitor through one of DrayTek's management platforms - VigorACS cloud, VigorConnect, Router AP Management, or directly via the AP's Web Interface.


The VigorAP-1060C can be powered through its 2.5Gb Ethernet boosting performance interface with standard IEEE 802.3af PoE, for a tidier and more convenient installation. The AP-1060C third radio is dedicated to assist with rogue AP detection, auto channel and power management. It assists with Zero-Wait DFS feature reducing the time needed scan DFS channels.

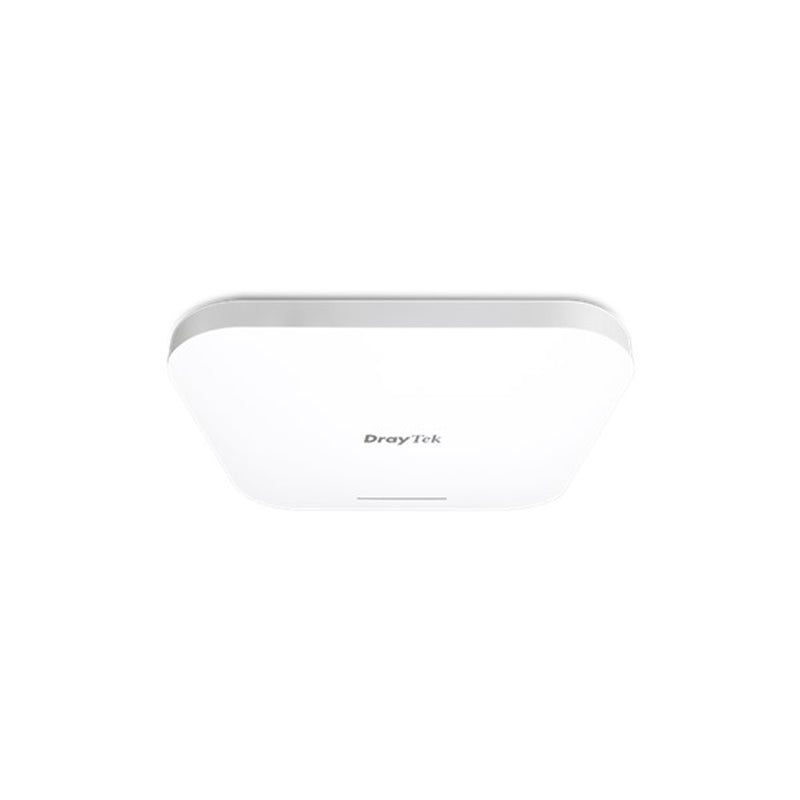

The VigorAP 1060C with its matte finish blends well with most home and office interiors. Ceiling and wall mounting capable (mounting base included)



1 x 2.5G PoE PD port
Dual-band 802.11ax with 4×4 MU-MIMO
4x Internal PiFA Single-Band (2.4G)
4x Internal PiFA Single-Band (5G)
1x Internal PCB DB (for scanning radio)
Wi-Fi speeds up to 1800 Mbps for 5 GHz band and 750 Mbps for 2.4 GHz band
Built-in RADIUS server
16 SSIDs for each Wi-Fi band with unique VLAN setting, Access Control, and Station Control
AP-assisted Roaming
Airtime Fairness
Band Steering
Plug-n-Play Meshing
Operation Mode: AP / Mesh Root/ Mesh Node/ Range Extender
Ceiling-mount housing
Supports Central AP Management
Supports VigorACS 2 Central Management System for remote management
Supports VigorConnect free software for local network management
2 years back to base warranty
