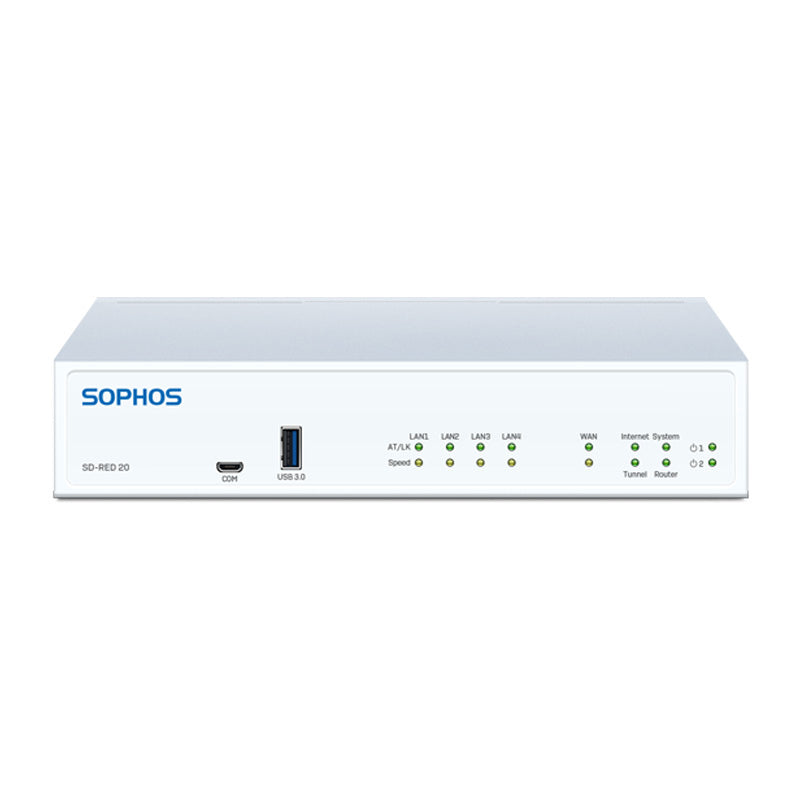

Sophos SD-RED 20




Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $20 or Express - $30

Want The Best Prices?

Request a quote

Zero-touch edge and branch connectivity
SD-RED offers a uniquely simple solution to extend network connectivity to your remote locations and branch offices – no matter where in the world they are. Replace expensive MPLS connections to reduce your costs and take advantage of other Sophos products, such as Intercept X, for added SD-WAN functionality in combination with XG Firewall.


Plug-and-protect deployment
Sophos SD-RED makes extending your secure network to other locations easy. It requires no technical skills at the remote site; simply enter the device ID into your Sophos firewall appliance and ship it. As soon as the device is plugged in and connected to the internet it will contact your firewall and establish a secure dedicated VPN tunnel. It’s really that simple.


Choose your RED
Sophos SD-RED devices are built on the latest enterprise-class, high-speed networking platforms. They work with your Sophos SG UTM/XG Firewall appliance (hardware, software, virtual, or cloud). The range of Sophos APX Series Access Points is also compatible with Sophos SD-RED for secure, high-speed wireless connectivity.


To use a Sophos SD-RED you will need an active Network Protection subscription for either Sophos SG UTM or Sophos XG Firewall. To use Wi-Fi with SG UTM, you will additionally need a valid UTM Wireless Protection subscription.



For networks in the range of 1-10 users/devices
Max Throughput: 250 Mbps

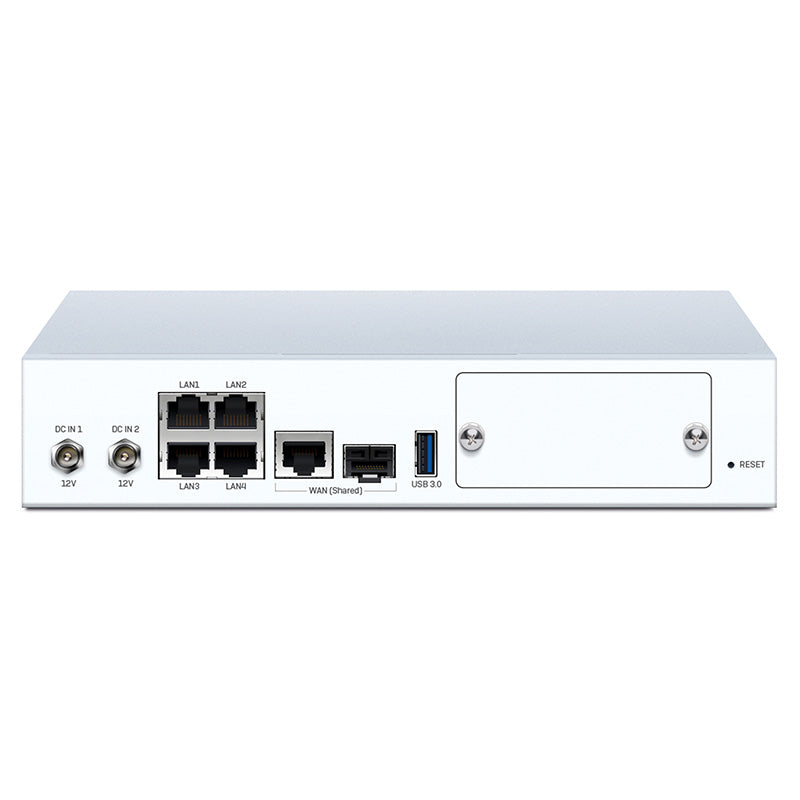

Ethernet And WAN Interfaces: Four (4) GE copper; One (1) SFP (shared with WAN); Two (2) WAN (WAN1 shared with SFP)
Expansion Slots: 1
Optional Modules (sold separately): WiFi Module; 3G/4G Module; SFP Transceivers
Swappable Components: Optional 2nd power supply (sold separately)
Standard Warranty: 5-Years

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
