LAP-GPS Ubiquiti airMAX Lite GPS AP
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with affordable pricing from Ubiquiti.
Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
Features:
GPS Sync support
Lightweight, low-cost solution
High-performance 90 degree antenna
Up to 450+ Mbps data throughput
Frequently asked questions5 questions
What is the LAP-GPS designed for?
How is the LAP-GPS powered, and is a power supply included?
What frequency range and antenna does it use?
Can it operate in harsh outdoor conditions?
What operating modes does it support?
Specifications21 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | 361 x 129.6 x 71.3 mm / (14.2 x 5.1 x 2.8") |
| Weight | 752 g (1.66 lb) |
| Wind Loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

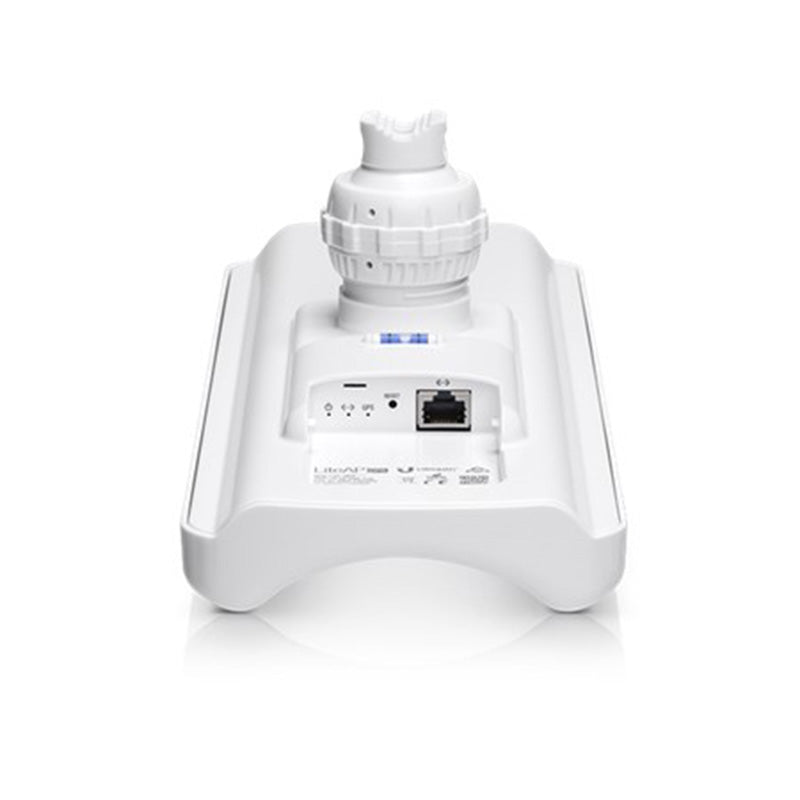

| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, Anatel: 06555-19-08356 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Antenna Gain | 17 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
