Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
WAVE-AP
WAVE-AP Ubiquiti UISP Wave Access Point
$1,006.98 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
Features:
60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio
30° sector coverage
5 GHz 800+ Mbps weather-resilient backup radio
(1) 2.5 GbE and (1) 10G SFP+ WAN ports
15 client capacity:
— Wave Long-Range (8 km link range)
— Wave Nano (5 km link range)
Integrated GPS & Bluetooth
Frequently asked questions5 questions
What is the WAVE-AP designed for?
It is a 60 GHz point-to-multipoint access point using Ubiquiti Wave Technology, with a 30° sector. It delivers up to 5.4 Gbps total throughput (2.7 Gbps duplex) and is configured through UISP, with Bluetooth to simplify setup in the UISP Mobile app.
How many stations can it connect, and over what distance?
The listing states a 15-client capacity, while the technical specifications show 31 supported clients. Range is up to 8 km to a Wave Pro or Wave Long-Range, 5 km to a Wave Nano, and 1.3 km to a Wave Pico.
What happens if the 60 GHz link is interrupted?
It includes a weather-resilient 5 GHz Wi-Fi 6 (802.11ax) backup radio rated at 800+ Mbps to help keep the connection up. The backup radio has 12 dBi antenna gain and supports 20, 40 and 80 MHz channel widths.
What ports and power options does it have?
It has one 2.5GbE RJ45 port and one 10G SFP+ port. Power is passive PoE, and a 48V DC, 0.65A 2.5GbE PoE adapter is included. Maximum power consumption is 24W.
Can it be used outdoors on a pole?
Yes. It has an IPX6 weatherproof rating and operates from -40 to 60° C. It pole-mounts on diameters of 25 to 76 mm and is rated for 98 N wind loading at 200 km/h.
Specifications45 specifications · 6 sections
| Mechanical | |
|---|---|

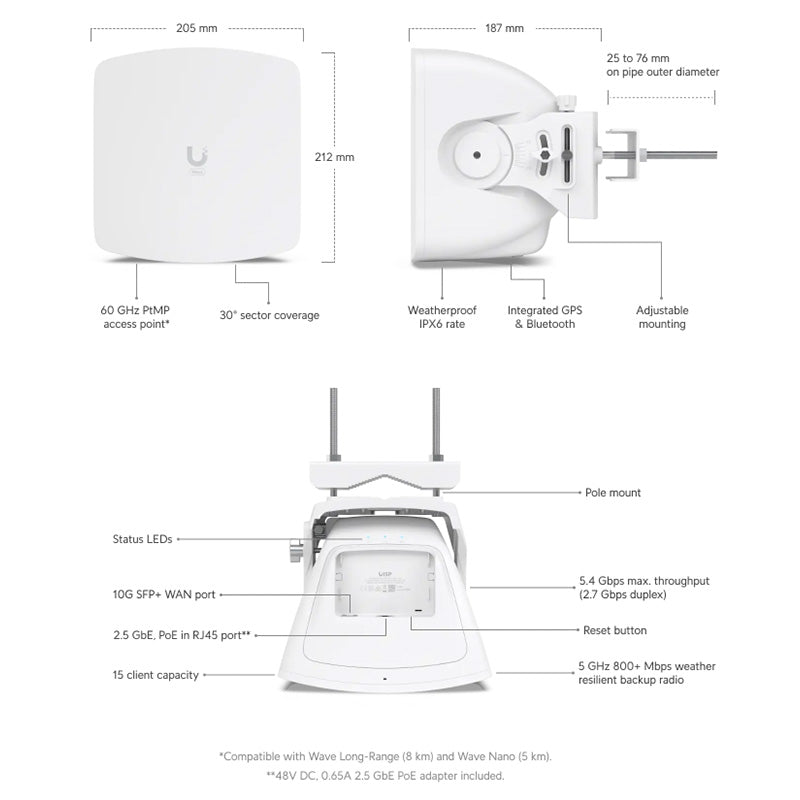

| Dimensions | 212 x 205 x 187 mm / (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.1 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | ⌀ 25 to 76 mm (1 to 3") |
| Wind Loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 2.5GbE RJ45 port (100/1000/2500) / (1) 10G SFP+ port (1/10) |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A 2.5GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing white: Ethernet traffic detected / Flashing blue: SFP+ traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtMP access point |
| Network | Bridge mode |
| Application Requirements · UISP | Version 1.5.7 and later |
| System | |
| Total Throughput | 5.4 Gbps |
| Supported Clients | 31 |
| Max. Range | Connecting to a Wave Pro: up to 8 km (5 mi) / Connecting to a Wave Long-Range: up to 8 km (5 mi) / Connecting to a Wave Nano: up to 5 km (3.1 mi) / Connecting to a Wave Pico: up to 1.3 km (0.8 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 24 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 30° / Elevation: 3 dB 3° |
| Electrical Downtilt | 0° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 12 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 3 dB 35° / Elevation: 3 dB 60° |
| Cross-Pol Isolation | 10 dB |
| Electrical Downtilt | 0° |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model WAVE-AP · Ubiquiti's spec sheet
