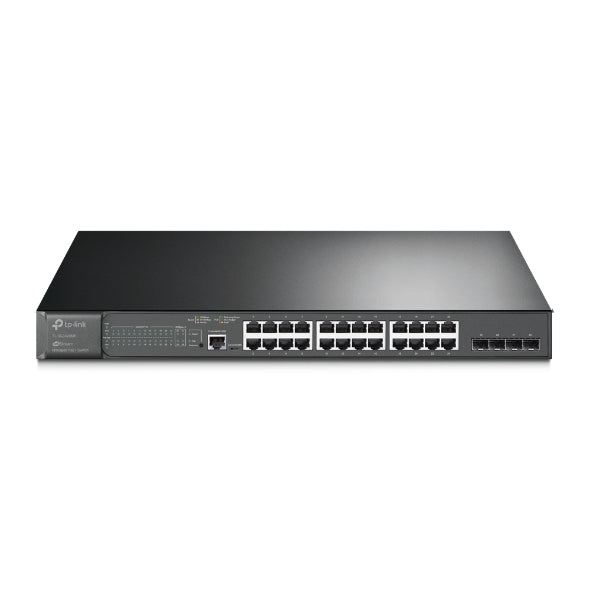

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+



384 W PoE Budget: 24— 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 24— gigabit PoE+ ports and 4— gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities



HARDWARE FEATURES

Interface 24— 10/100/1000Mbps RJ45 Ports

4— Gigabit SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) Standard: 802.3at/af compliant

PoE+ Ports: 24 Ports, up to 30 W per port

Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 — 13.0 — 1.7 in (440 — 330 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 31.0 W (110 V/60 Hz) (no PD connected)

463.8 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation 105.78 BTU/h (110 V/60 Hz) (no PD connected)

1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)



PERFORMANCE

Switching Capacity 56 Gbps

Packet Forwarding Rate 41.66 Mpps

MAC Address Table 8K

Jumbo Frame 9 KB
