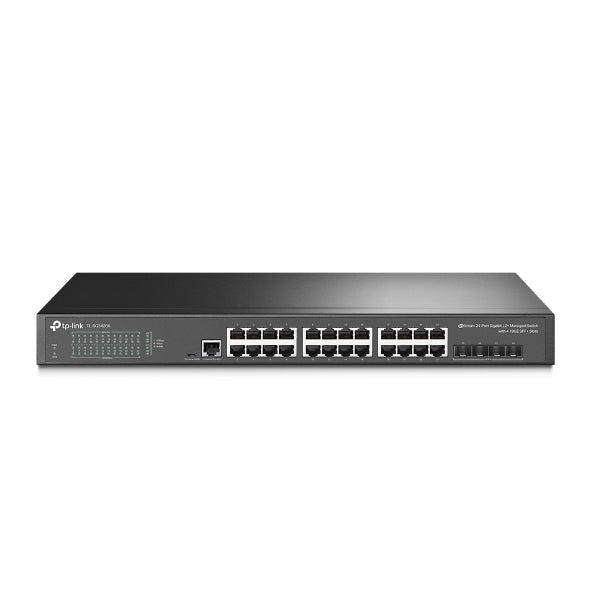

TP-Link TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots



10G Lightning-Fast Uplink: 4— 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

Gigabit Speeds: 24— gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities



HARDWARE FEATURES

Interface 24— 10/100/1000 Mbps RJ45 Ports

4— 10G SFP+ Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity Fanless

Power Supply 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) 17.3 — 7.1 — 1.7 in (440 — 180 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 23.6 W (110V/60Hz)

Max Heat Dissipation 80.353 BTU/h (110 V/60 Hz)



PERFORMANCE

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB



SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark
