TP-Link SG3452P Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, Integration with Omada SDN Controller,Static Routing, 802.1Q VLAN, QinQ

We are just not quite the same as many of the other online stores.  I know it is easy to say that, but we just aren't.

The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.

This allows us to purchase stock from suppliers from locations where they have it available.    We are then able to import those products directly, along with providing localised Warranty and Replacement as required.

We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.

We list on each product our expected shipments and ones that we have already sent out to customers.   Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.

Want to know when new product stock is released? why not sign up here to our alerts.

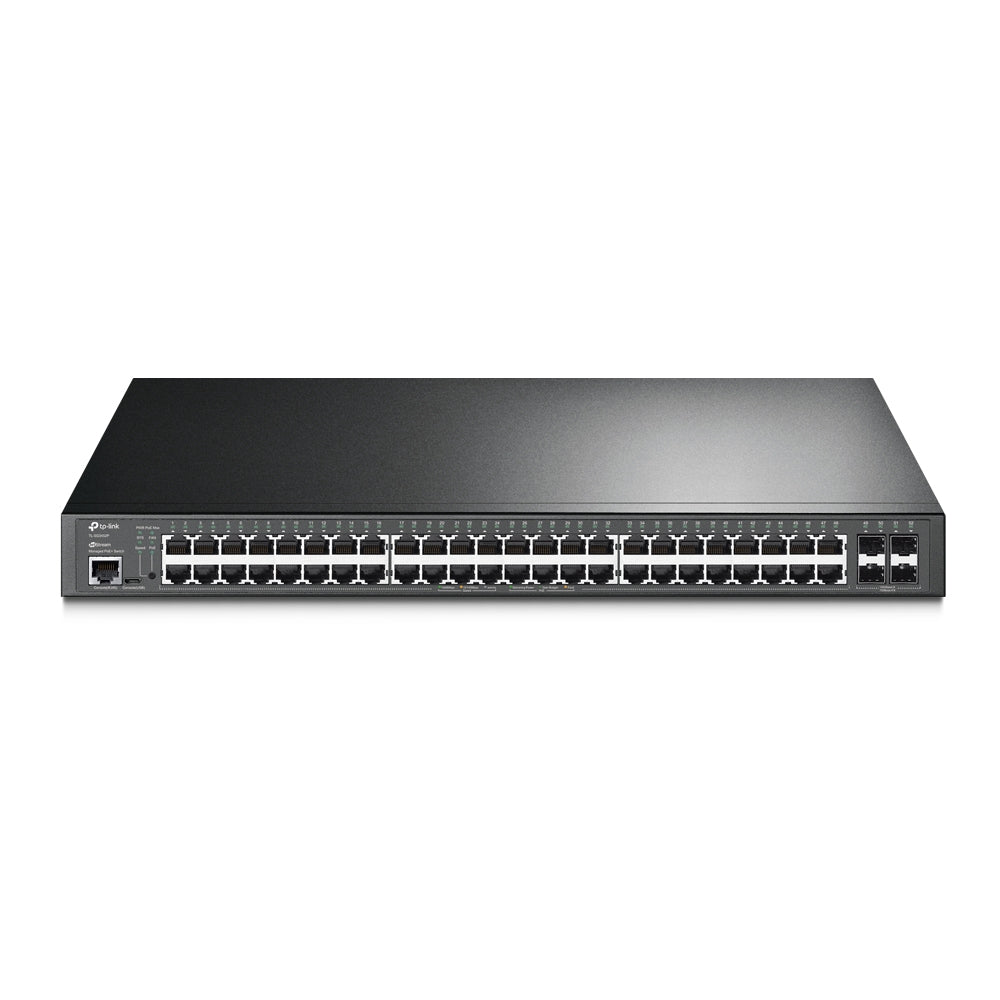

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 384W PoE Budget, Integrated into Omada SDN



384 W PoE Budget: 48— 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 48— gigabit RJ45 ports and 4— gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.



HARDWARE FEATURES

Interface 48— 10/100/1000 Mbps RJ45 Ports

4— Gigabit SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity 3

Power Supply 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) Standard: 802.3at/af compliant

PoE+ Ports: 48 Ports, up to 30 W per port

Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 — 13.0 — 1.7 in (440 — 330 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 52.53 W (110 V/60 Hz) (no PD connected)

485.4 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation 179.13 BTU/hr (110 V/60 Hz) (no PD connected)

1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity 104 Gbps

Packet Forwarding Rate 77.4 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance
