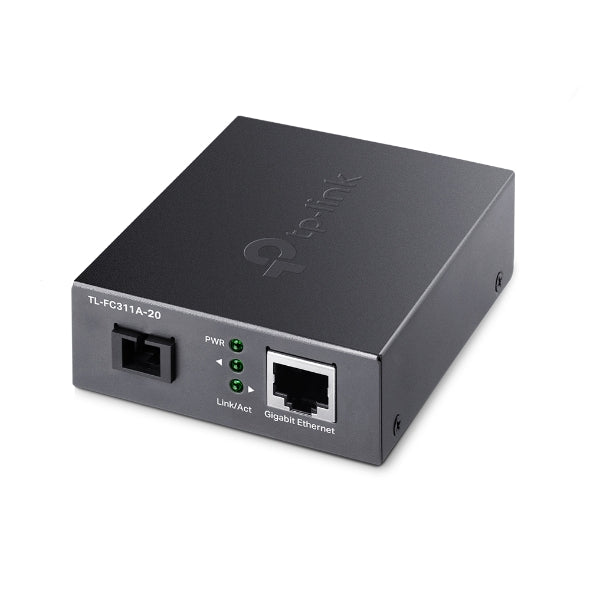

TP-Link TL-FC311A-20 Gigabit WDM Media Converter



1— 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Adopts WDM technology, transmitting and receiving data on one single fibre

Extends fibre distance up to 20 km (for TL-FC311A-20 & TL-FC311B-20)



NETWORK

Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

ENVIRONMENT

Operating Temperature 0ËšC to 50ËšC (32ËšF to 122ËšF)

Storage Temperature -40ËšC to 70ËšC (-40ËšF to 158ËšF)

Operating Humidity 10% to 90% RH non-condensing

Storage Humidity 5% to 90% RH non-condensing



HARDWARE FEATURES

Interface 1— Gigabit SC Fiber Port

1— 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media Single-mode Fiber

UTP category 5, 5e cable (maximum 100m)

Power Supply External Power Adapter: 5 V/0.6 A

LED PWR, Link/Act

Dimensions ( W x D x H ) 3.7—2.9—1.1 in (94.5—73.0—27.0 mm)

Wave Length 1550 nm TX, 1310 nm RX



MEDIA CONVERTER & MODULE

Fiber Type 9/125 μm single-mode fiber
