SonicWall SonicWave 432o Outdoor Access Point

Price:

$3,156.30

SKU: 01-SSC-2538

If you can't find the item you are after in stock, please chat to us.  Supply chain issues mean these are often ordered directly from SonicWall for each customer with a lead time of around 14 days.


Chat 7am to 10pm - 7 days

We love what we do!

Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote


SonicWall wireless network security products provide you with an enhanced wireless user experience by delivering the performance, range and reliability of 802.11ac and 802.11n wireless technologies with the SonicWave series access points. Benefit from advanced, industry-leading, patented security and wireless features. Leverage ease of deployment and management, at a low total cost of ownership.

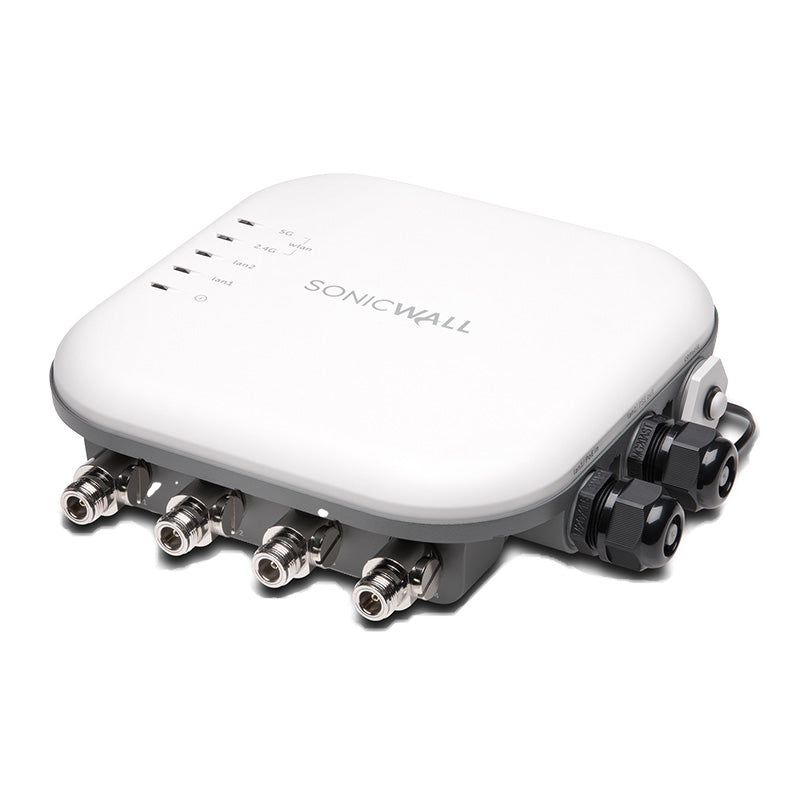

The SonicWall SonicWave 432o is the latest generation in SonicWall’s evolutionary wireless access points. The SonicWave 432o extends your wireless LAN past the traditional boundaries of indoor locations.

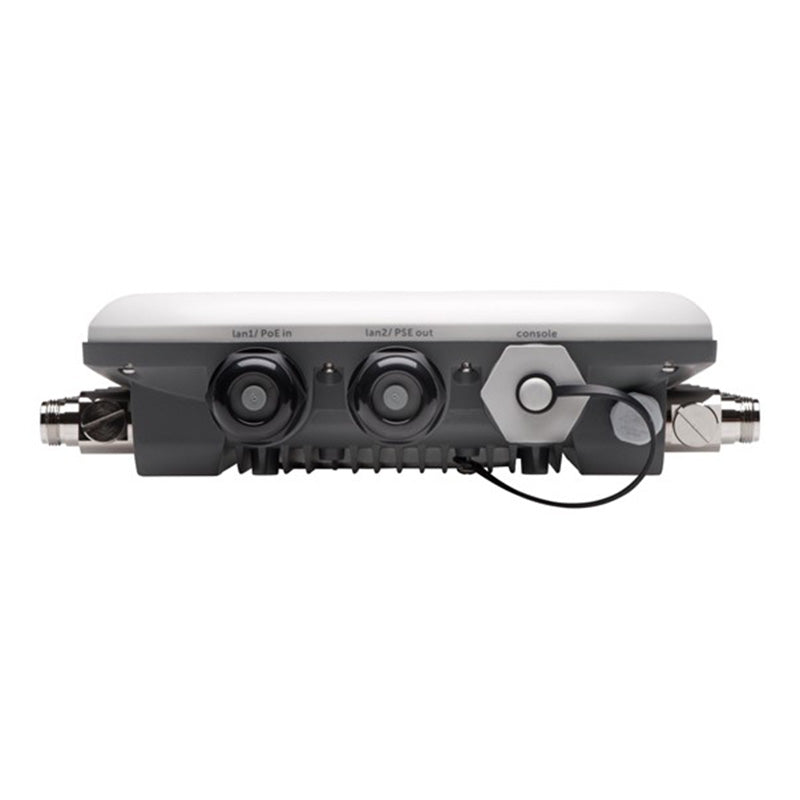

With state of the art design and construction, it is resistant to harsh outdoor environments and extreme temperature changes. The unit is designed specifically for outdoor use and can be attached to either a pole or wall. Waterproof connectors are supplied to ensure watertight seals for connecting the Ethernet cables to the device.



The SonicWave 432o also provides physical layer enhancements for higher throughput with a maximum data rate of 1.3 Gbps. To achieve this, the SonicWave 432o uses:

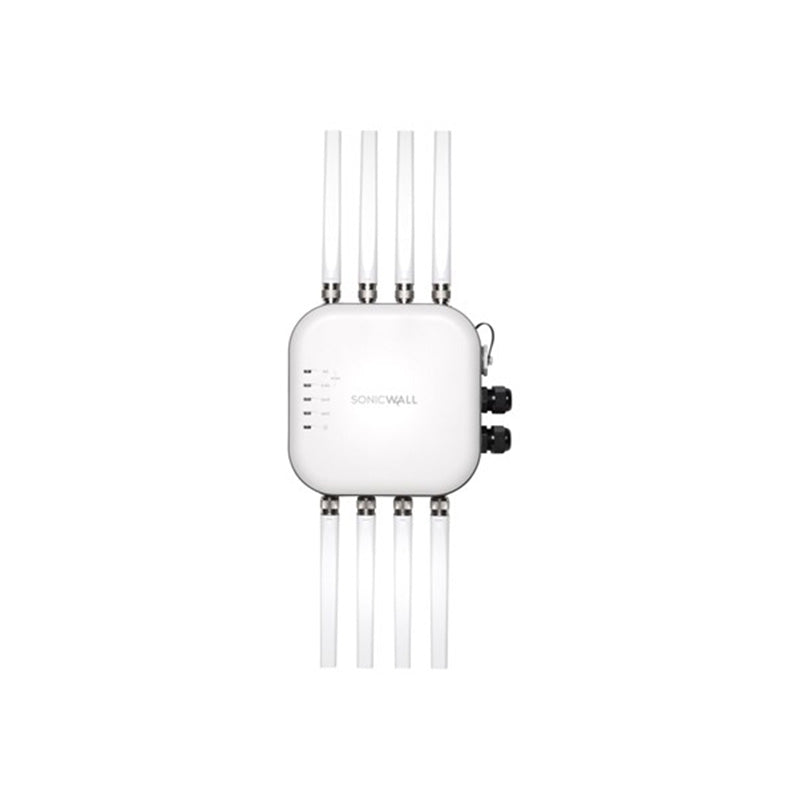

More antennas

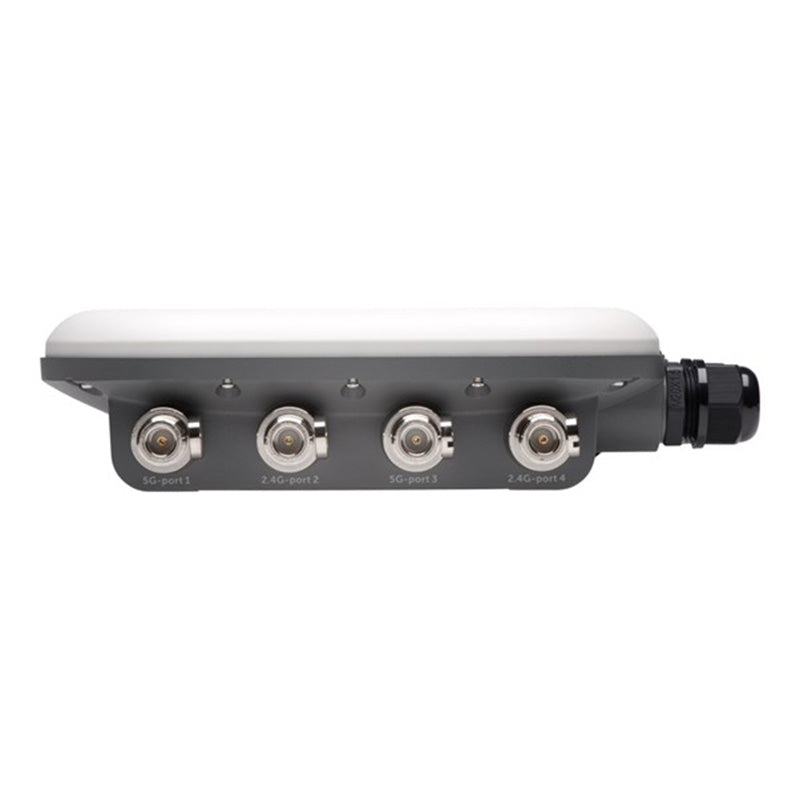

Four antennas for the 5 GHz radio, and four more for the 2.4 GHz radio
Wider channels
80 MHz‐wide channels for the 802.11ac radio module, while continuing to support 20/40 MHz channels. This allows for dynamic per packet negotiation of channel widths so that when there is interference, the SonicWave can temporarily fall back to 40 or 20MHz channels.
More spatial streams
4X4 multiple‐input and multiple‐output, (MIMO) for the 802.11ac radio module, where the capacity of a radio link is multiplied using multipath propagation.



Because of the unique market and functionality targeted by this product, the SonicWave 432o requires specially trained professionals to configure and install the product.

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide


subscriptions & accessories

SonicWall Parts & Accessories

SonicWave 641

SonicWave 681

SonicWave 432o

SonicWall SonicWave 641  Indoor Point
SonicWall SonicWave 681  Indoor Point
SonicWall SonicWave 432o Outdoor Access Point

  • Which Model?
  • More protection?
  • Thinking  firewall?

SonicWave Wireless Access Points from SonicWall provide your business with an enhanced user experience by delivering the performance, range and reliability of 802.11ac Wave 2 and 802.11ax technologies. Benefit from advanced, industry-leading security and wireless features. Leverage ease of deployment and management at a low total cost of ownership.


SonicWave 641

SonicWave 681

SonicWave 432o

Radios & Streams

Wi-Fi 6 4x4
Dedicated 3rd scanning Radio

Wi-Fi 6 4x4 (2.4Ghz)
Wi-Fi 6 8x8 (5Ghz)
Dedicated 3rd scanning Radio

Outdoor

Wi-Fi 5 4x4
Dedicated 3rd scanning Radio

Number Of Antennas

8 Internal

12 Internal

8 External N-Type Connectors

Maximum Data Rate

4800 Mbps (5 Ghz)
1147 Mbps (2.4 Ghz)

4800 Mbps (5 Ghz)
1147 Mbps (2.4 Ghz)

1733 Mbps (5 Ghz)
574 Mbps (2.4 Ghz)

Ports

1 x 2.5 GbE (PoE+)

1 x 5 GbE (PoE+)

1 x 1 GbpE (PoE+)
1 x 2.5 GbE

Power Consumption

23W

34W


21.2W

Mounting Option (Included)

Ceiling Mounting Kit

Ceiling Mounting Kit

Pole Mounting Kit

Mounting Options (Sold Separately)

Universal Standing Bracket (WG9017)

Universal Standing Bracket (WG9017)

N/A

Max Connected Clients (Per Radio)

256

256

128

Max SSIDs

8

8

8

Our Serving suggestion

Environment

Medium Density / Retail / Schools / Offices

Medium Density / Retail / Schools / Offices

High Density Outdoors / Manufacturing

Sonicwall SEcure wireless videos

SonicWave 600 Series Access Points

Ideal in complex multi-device situations, the 600 Series boosts wireless performance with the power of ultra-high-speed Wi-Fi 6.


With this series, you gain ‘always-on, always-secure’ access point operations across complex enterprise environments while simplifying the user experience.


All SonicWave access points are integrated with the cloud-delivered Wireless Network Manager (WNM).

SonicWall Wireless Network Manager

Leverage the ultimate flexibility and reliability of the cloud. SonicWall Wireless Network Manager (WNM) is a highly intuitive, scalable and centralized wireless and switching network management system. It unifies multiple tenants, locations and zones, providing integrated management for thousands of SonicWave access points and SonicWall Switches.


From a single pane of glass, WNM is capable of delivering rich analytics, powerful features and simplified onboarding via the cloud. This cloud-based infrastructure simplifies access, control and troubleshooting capabilities for organizations of any size. Wireless Network Manager can be deployed and accessed across multiple regions from anywhere with an Internet connection, all without the cost of complex overlay management systems.
