DR3150 - TP-Link Omada Gigabit Desktop DSL Gateway
Description
Description
The TP-Link DR3150 Omada Gigabit Desktop DSL Gateway (SKU: DR3150) combines a built-in VDSL2 modem with a business-grade Omada VPN gateway in a compact desktop or wall-mountable unit. It supports VDSL2 35b with DSL speeds of up to 350 Mbps and is backwards compatible with VDSL2, ADSL2+, ADSL2 and ADSL lines. With Gigabit Ethernet ports, multi-WAN load balancing and a wide choice of VPN protocols, the DR3150 gives small and medium-sized businesses a single device for DSL connectivity, routing and secure remote access.
The DR3150 integrates with the Omada SDN platform for centralised cloud management. It supports automatic device discovery, intelligent network monitoring, abnormal event warnings and captive portal configuration. Zero-Touch Provisioning (ZTP) is available when using the Omada Cloud-Based Controller.
Key Features
- VDSL2 35b support for DSL access of up to 350 Mbps, with VDSL2/ADSL2+/ADSL2/ADSL compatibility

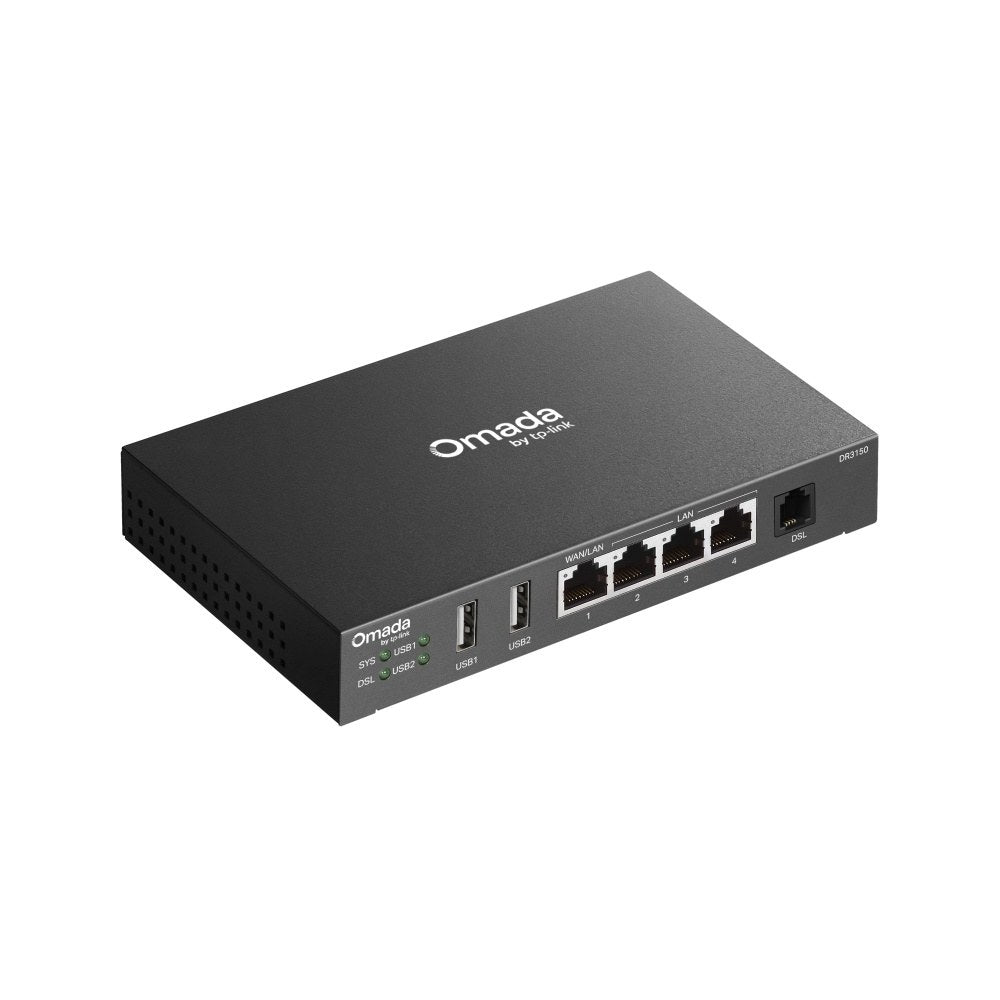

- 1× RJ11 DSL port and 4× Gigabit RJ45 ports (1× WAN/LAN, 3× LAN)
- 2× USB 2.0 ports, with one supporting LTE backup using a USB LTE dongle
- Load balancing on up to 2 WAN ports, with link backup and failover
- VPN support for IPSec, PPTP, L2TP, OpenVPN, WireGuard and GRE, including up to 20 IPSec tunnels and 50 OpenVPN tunnels
- Up to 50,000 concurrent sessions and 2,500 new sessions per second, with PPPoE NAT throughput of up to 940 Mbps
- Deep Packet Inspection (DPI) recognising 2466 application types, plus URL filtering, ACLs and attack defence
- Security features including DNS proxy (DNSSEC, DoH, DoT), ARP inspection and IP-MAC binding
- 802.1Q VLAN, Quality of Service, IGMP proxy for IPTV and IPv6 support
- Management via web interface, SNMP, syslog and TR-069

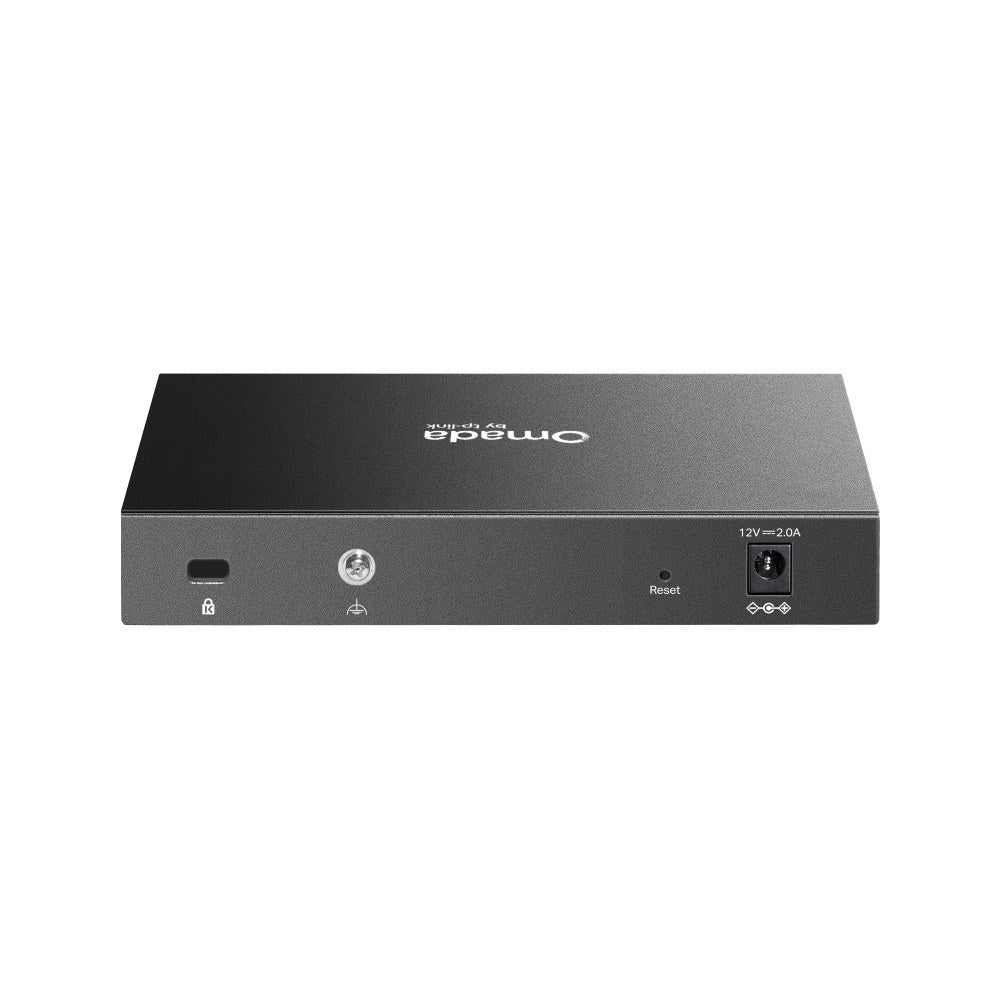

- Desktop or wall mounting in a compact 158 × 101 × 25 mm chassis, powered by a 12 V/2 A DC adapter
Ideal for: small and medium-sized businesses, branch offices and remote sites that need a reliable DSL gateway with secure site-to-site and remote-access VPN and the option of centrally managed Omada networking.
What's in the Box
DR3150 gateway, power adapter, Ethernet cable, phone cable, external splitter, rubber feet and quick installation guide.
Compatible Products
Omada Controllers
Manage the DR3150 using the Omada Cloud-Based Controller, an Omada Hardware Controller or the Omada Software Controller for unified configuration across gateways, switches and access points.
DSL Lines
Works with VDSL2 (including profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a and 35b), ADSL2+, ADSL2 and ADSL connections.
USB LTE Dongles
One USB port supports an LTE dongle for mobile broadband backup.
Note: maximum wired rates are physical rates. Actual throughput will vary depending on network conditions, client limitations and environmental factors. Some features are available only in Standalone or Controller mode.
Click HERE to access the Datasheet
