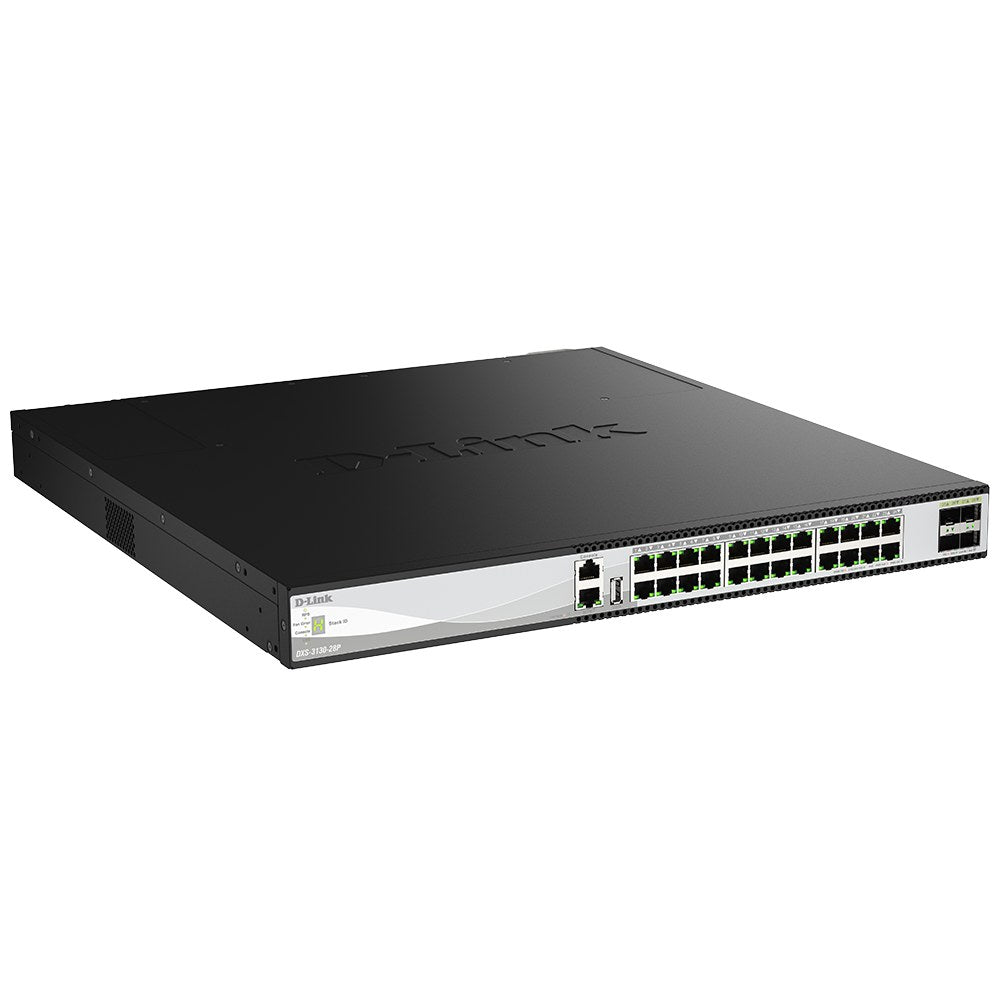

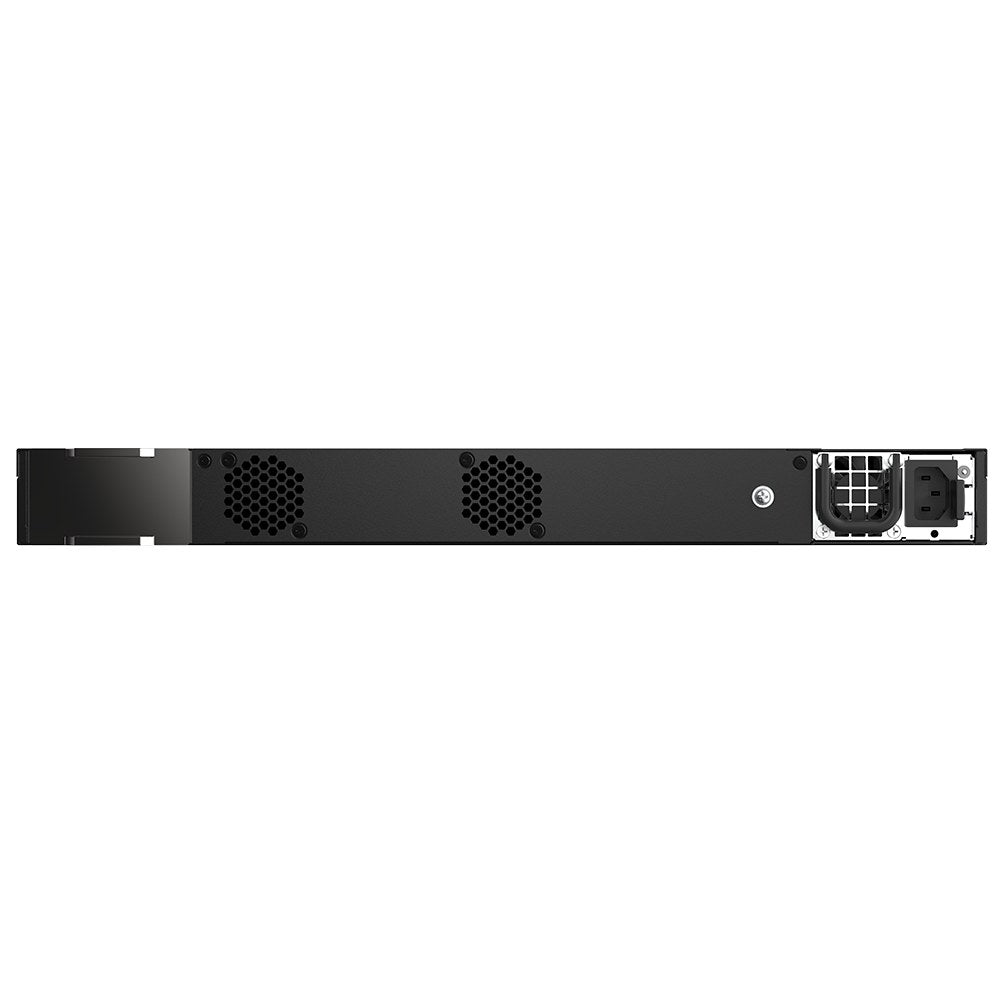

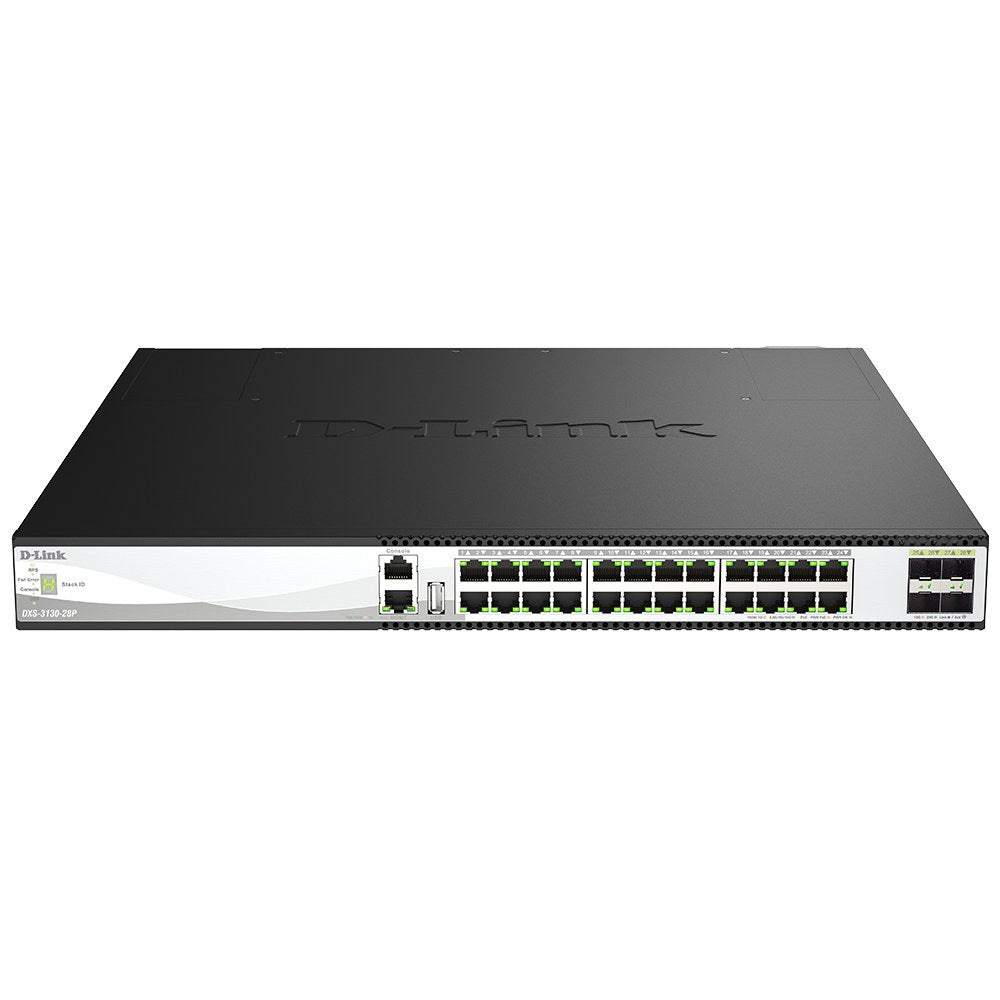

The D-Link DXS-3130-28P is a high-performance Layer 3 stackable managed switch engineered for demanding enterprise, data centre, and metro network environments. This powerful switch is equipped with 24 PoE ports, supporting 802.3af, 802.3at, and 802.3bt 60W PoE++ standards, plus 4 10/25G SFP28 ports for enhanced speed and versatility. It offers a default power budget of 790 watts, which can be expanded to 1440 watts with dual power supplies, making it ideal for powering high-performance Wi-Fi 6/6E/7 access points, IP cameras, and other bandwidth-intensive PoE++ devices.

With a switching capacity of up to 680 Gbps and a forwarding rate of 506 Mpps, the DXS-3130-28P delivers ultra-fast data transfer and low latency, perfect for mission-critical applications. You can scale your network by stacking up to 9 switches into a single physical or virtual unit, simplifying management, improving redundancy, and allowing control of the entire stack through one IP address. Physical stacking provides up to 200 Gbps stacking bandwidth per device for maximum throughput.

Advanced PoE Features: The DXS-3130-28P supports Perpetual PoE and Fast PoE technologies. Perpetual PoE delivers uninterrupted power to connected powered devices (PD) even when the power sourcing equipment (PSE) switch is booting, whilst Fast PoE enables the switch to supply power to connected endpoint devices in a relatively short time without waiting for the operating system to fully load. PD-Alive auto-reboots unresponsive IP devices to ensure continuous operation and monitors their status.

Enterprise-Class Layer 3 Routing: The DXS-3130 Series enhances enterprise networking with advanced Layer 3 features, including dynamic IPv4/IPv6 routing (OSPFv2/v3, RIPv1/v2/ng) and VRRP for high availability. The switch supports up to 128 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM, enabling flexible inter-VLAN routing and intelligent traffic management.

Robust Security & Network Protection: The switch includes Access Control Lists (ACLs) for precise traffic filtering, along with 802.1X port-based authentication and support for RADIUS and TACACS+ for secure user access. To prevent Layer 2 attacks, the switches offer DHCP snooping, IP source guard, and ARP inspection. The DXS-3130-28P supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control, with individual policies such as VLAN membership, QoS policies, and ACL rules assigned to each host after authentication.

Mission-Critical Reliability: The DXS-3130-28P ensures continuous uptime with redundant power and stacking, with 50ms ERPS recovery minimising downtime, loop back detection blocking storm-affected ports, and VRRP providing seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks. The switches feature redundant, hot-swappable power supplies and fans for continuous operation and failover protection.

Optimised Traffic Management: The DXS-3130-28P switch prioritises mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming, ensuring smooth performance for time-sensitive applications.

Flexible Management: The DXS-3130 Series supports multiple interfaces, including an intuitive web UI, Command Line Interface (CLI), SNMP v1/v2c/v3, and RMON. The switches integrate seamlessly with D-Link Nuclias Network Controller to enable centralised monitoring and control across the network. A USB 2.0 port enables direct booting of images and uploading of configuration files, as well as convenient storage of syslog files on a USB 2.0 device.

Key Features

• 24 x 10G/Multi-Gigabit (100M/1G/2.5G/5G/10GBASE-T) PoE++ ports
• 4 x 10/25G SFP28 uplink ports for high-speed fibre connectivity
• IEEE 802.3af/at/bt PoE++ support - up to 60W per port
• 790W PoE power budget (expandable to 1440W with dual PSUs)
• Perpetual PoE and Fast PoE with PD-Alive monitoring
• 680 Gbps switching capacity, 506 Mpps forwarding rate
• Physical stacking up to 9 units (200 Gbps per-device bandwidth)
• Advanced Layer 3 routing: OSPFv2/v3, RIPv1/v2/ng, VRRP
• 50ms ERPS (Ethernet Ring Protection Switching) recovery
• Redundant hot-swappable power supplies and fans
• 802.1X, RADIUS, TACACS+ authentication
• Multi-layer ACLs, DHCP Snooping, IP Source Guard, ARP Inspection
• 6kV surge protection on all Multi-Gigabit Ethernet ports
• Advanced QoS/CoS, traffic shaping, IGMP/MLD Snooping
• D-Link Nuclias Network Controller support

Ideal for: Enterprise core and aggregation networks, data centres, large-scale campus deployments, metro Ethernet networks, hospitals, smart buildings, surveillance systems, and any environment requiring high-density 10G PoE++ connectivity with advanced Layer 3 routing.

Compatible Products

D-Link DXS-3130-28 (Non-PoE Model): The non-PoE variant of this switch, offering the same high-performance 10G switching and Layer 3 capabilities without Power over Ethernet, ideal for fibre uplink aggregation.

D-Link DXS-3130-32S: A 32-port all-fibre 10G Layer 3 stackable switch for high-density SFP+ environments, perfect for backbone and distribution layers in larger networks.

D-Link DEM-410T SFP+ Transceivers: 10GBASE-T copper transceivers for flexible connectivity using Cat 6a structured cabling on SFP+ ports.

D-Link DGS-3130 Series: Gigabit Layer 3 stackable managed switches that complement the DXS-3130-28P at the access layer for a complete multi-tier network solution.

D-Link DMS-3130 Series: 2.5G Layer 3 stackable managed switches offering a mid-range multi-gigabit option for high-performance access deployments.
