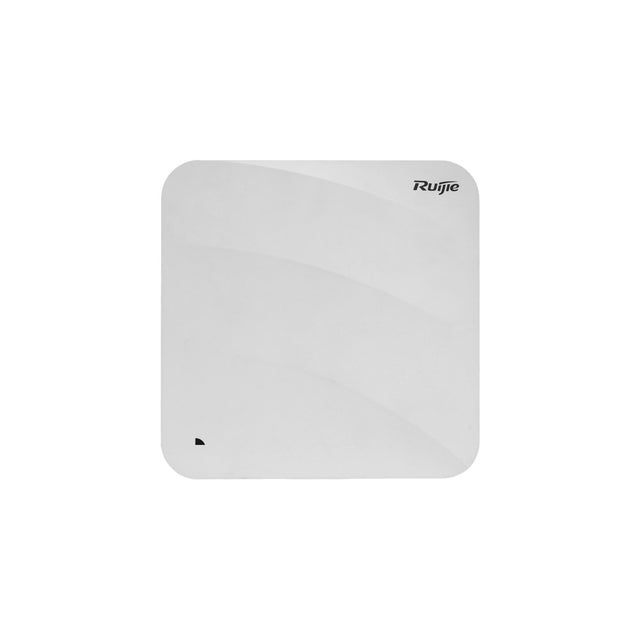

The Ruijie RG-AP840-L (SKU: RG-AP840-L) is a Wi-Fi 6 dual-radio indoor access point built for demanding, high-density wireless networks. Delivering a combined peak data rate of up to 5.378 Gbps, it pairs a 2.4 GHz 2x2 MU-MIMO radio with a 5 GHz 4x4 MU-MIMO radio for up to six spatial streams, with 160 MHz channel support for smoother wireless experiences. A 5 Gbps multi-gigabit uplink and flexible PoE power options make it simple to deploy in education, government, finance and business environments.

Thanks to OFDMA and MU-MIMO, the RG-AP840-L reduces airtime contention between clients and improves efficiency when many users and devices connect at once. Built-in omnidirectional antennas, 1024-QAM support and IEEE 802.11k/v/r roaming support help keep users connected as they move around your site.

Key Features

• Wi-Fi 6 (802.11ax) dual-band, dual-radio design: 2.4 GHz (2x2) plus 5 GHz (4x4), up to six spatial streams
• Combined peak data rate of up to 5.378 Gbps, with up to 4.804 Gbps on the 5 GHz radio
• 160 MHz channel width support for smoother wireless performance
• OFDMA and MU-MIMO to optimise multi-user, high-density access
• 5 Gbps wired uplink: one 100/1000/2500/5000BASE-T port plus a 5GE combo SFP port for flexible copper or fibre networking
• PoE powered (IEEE 802.3af/at/bt) or local 54 V DC power; 802.3bt (PoE++) delivers optimal performance
• PoE output capability when powered by 802.3bt, to support IoT devices such as IP phones and cameras
• Bluetooth 5.1 and 802.15.4 RF (ZigBee support) for IoT, location and asset-tracking services
• WPA3, Enhanced Open security, 802.1X and MSCHAPv2 for strong wireless security
• IEEE 802.11k/v/r support for roaming optimisation
• Flexible Fat, Fit and Cloud mode switchover, with Ruijie Cloud management for centralised monitoring
• Wall or ceiling mounting, with mounting bracket supplied and Kensington lock option
• Supplied with a 3-year warranty

Ideal for: schools, universities, government offices, financial institutions, hospitality venues and busy business premises that need reliable, high-capacity indoor Wi-Fi 6 coverage with simple PoE deployment and centralised management.

Technical Highlights

Operating temperature range of -10°C to +50°C, dimensions of 230 mm x 230 mm x 51 mm, and a main unit weight of 1.0 kg make the RG-AP840-L a neat, discreet fit for ceilings and walls.

Compatible Products

Wireless access controllers: The RG-AP840-L can be used with Ruijie's RG-WS series wireless access controllers for centralised management (each AP occupies one controller licence).

Cloud management: Manage the access point through the Ruijie Cloud platform.

PoE switches: Power the access point from any IEEE 802.3af/at/bt PoE switch or injector. For optimal performance, use an 802.3bt (PoE++) source.
