RLN8-410 - Reolink 8-Channel PoE Network Video Recorder (No HDD)
Description
Description
The Reolink RLN8-410 is a professional-grade 8-channel PoE network video recorder (NVR) designed for seamless 24/7 continuous surveillance. This powerful NVR effortlessly manages and records footage from multiple cameras, providing unified security monitoring for homes, offices, and small businesses. The rln8-410-no-hdd model is supplied without a pre-installed hard drive, giving you the flexibility to choose your own storage solution.
Ideal for: Homeowners and small business owners seeking a reliable, expandable surveillance system with local storage and no monthly fees.
Key Features
- 8 PoE ports providing power and data transmission through a single Ethernet cable for plug-and-play installation
- Supports up to 12 cameras (hardware version N7MB01): 8 PoE or plug-in Wi-Fi cameras plus 4 battery-powered Wi-Fi cameras, or 12 battery-powered Wi-Fi cameras
- Expandable storage up to 16TB (max. 8TB SATA and max. 8TB eSATA) for weeks of 24/7 continuous recording
- H.264 and H.265 video compression for efficient storage and bandwidth usage
- Wide resolution support from 720p up to 16MP (7680×2160) for ultra-high-definition playback
- Dual video outputs (HDMI and VGA) supporting resolutions up to 4K (3840×2160)
- Synchronous playback of up to 4 camera channels simultaneously
- Local and remote access via Reolink App or Client software for live viewing from anywhere
- 20 user accounts (1 admin, 19 users) with up to 12 simultaneous video streams
- 2 USB 2.0 ports for mouse or USB flash drive connectivity
- RCA audio output for connecting external speakers
- Compatible with most Reolink PoE cameras, plug-in Wi-Fi cameras, and battery-powered Wi-Fi models
Power over Ethernet (PoE) Technology

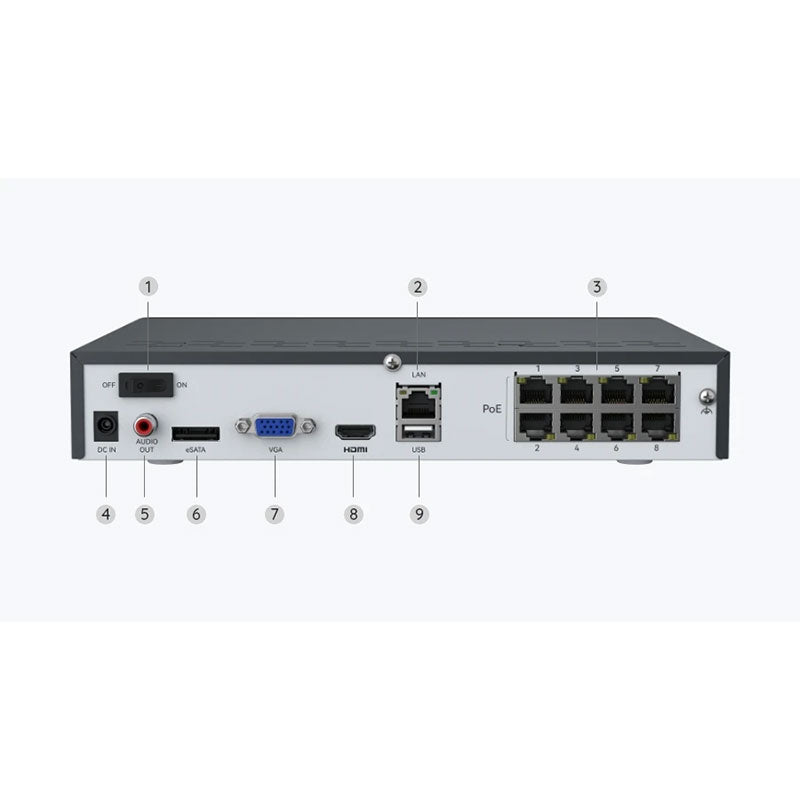

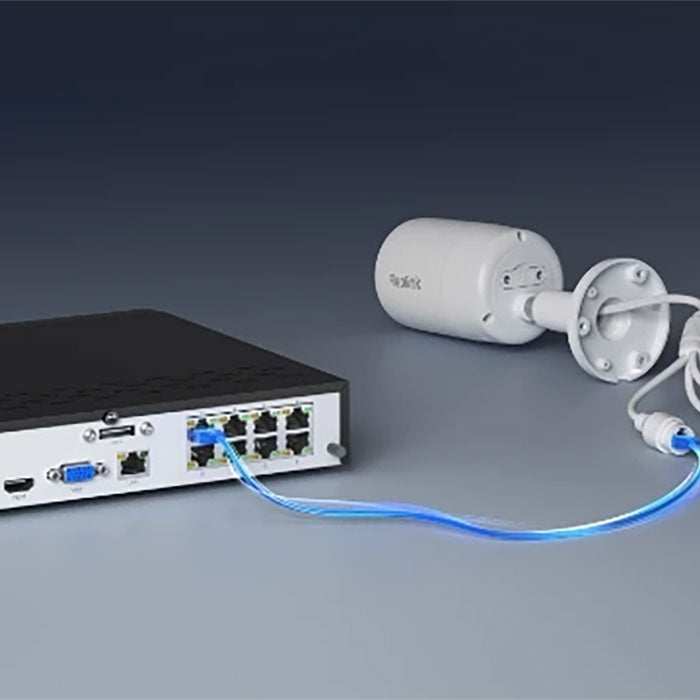

The RLN8-410 features 8 RJ-45 PoE ports that deliver both power and network connectivity to connected cameras through a single cable. Each port supports a maximum output of 25W, eliminating the need for separate power adapters and dramatically simplifying installation. Simply connect your Reolink PoE cameras to the NVR using standard Ethernet cables for instant plug-and-play operation.
Flexible Storage Options
This NVR model is supplied without a pre-installed hard drive, allowing you to select storage capacity based on your specific requirements. The unit includes 1 internal SATA interface supporting drives up to 8TB, plus 1 eSATA port for external HDD expansion (up to 8TB), giving you a total maximum capacity of 16TB. This expandable storage ensures you never run out of space for critical security footage.
Advanced Video Management
With support for the latest H.265 video compression, the RLN8-410 maximises storage efficiency while maintaining exceptional image quality. The NVR handles multiple high-resolution streams simultaneously and supports playback of recordings in resolutions ranging from standard 720p right up to 16MP ultra-HD. View live feeds or recorded footage on a connected monitor via HDMI or VGA, or access your system remotely through the Reolink App or desktop Client.
Versatile Camera Compatibility
The RLN8-410 works seamlessly with various Reolink camera types, providing outstanding flexibility for customised surveillance systems. Compatibility may vary depending on hardware version, so check the official Reolink NVR compatibility page for detailed information about supported camera models and features.
Compatible Products
Reolink PoE IP Cameras: The RLN8-410 is compatible with most Reolink PoE cameras including bullet, dome, and PTZ models in resolutions from 4MP to 16MP. Popular models include the RLC-810A, RLC-820A, RLC-520A, and RLC-410 series.
Reolink Wi-Fi Cameras: Connect plug-in Wi-Fi cameras to expand coverage in areas where running Ethernet cables is impractical. Compatible with non-battery Wi-Fi models when connected to the same network.
Reolink Battery-Powered Cameras: Hardware version N7MB01 supports up to 12 cameras including battery-powered Wi-Fi models, offering wireless flexibility for locations without power outlets.
Frequently Asked Questions
How many cameras can the RLN8-410 support?
The RLN8-410 has 8 channels and supports up to 8 cameras (excluding dual-lens models). Note that Reolink duo-lens cameras occupy two video channels. Hardware version N7MB01 can support up to 12 cameras total when including battery-powered Wi-Fi cameras.
Can I use a PoE switch to add more cameras?
Yes, there are three methods to connect a PoE switch with the RLN8-410. However, adding PoE switches will not expand the number of cameras supported by the NVR, since its video channels are fixed at 8.
Does the NVR need to connect to a router?
For remote access and Wi-Fi camera connectivity, the NVR must connect to the router via an Ethernet cable. However, you can view live streaming locally on a connected monitor or TV even without network connectivity.
Can I connect third-party cameras to the RLN8-410?
It is not recommended. Compatibility issues can occur with third-party cameras. For best results, use Reolink cameras designed to work seamlessly with Reolink NVRs.
How do I perform a hardware reset on the RLN8-410?
Keep the NVR powered on and locate the reset button or pinhole on the back of the device. Press and hold it for about 10 to 15 seconds until you hear a beep or the system begins to reboot. This will restore the device to factory settings.
