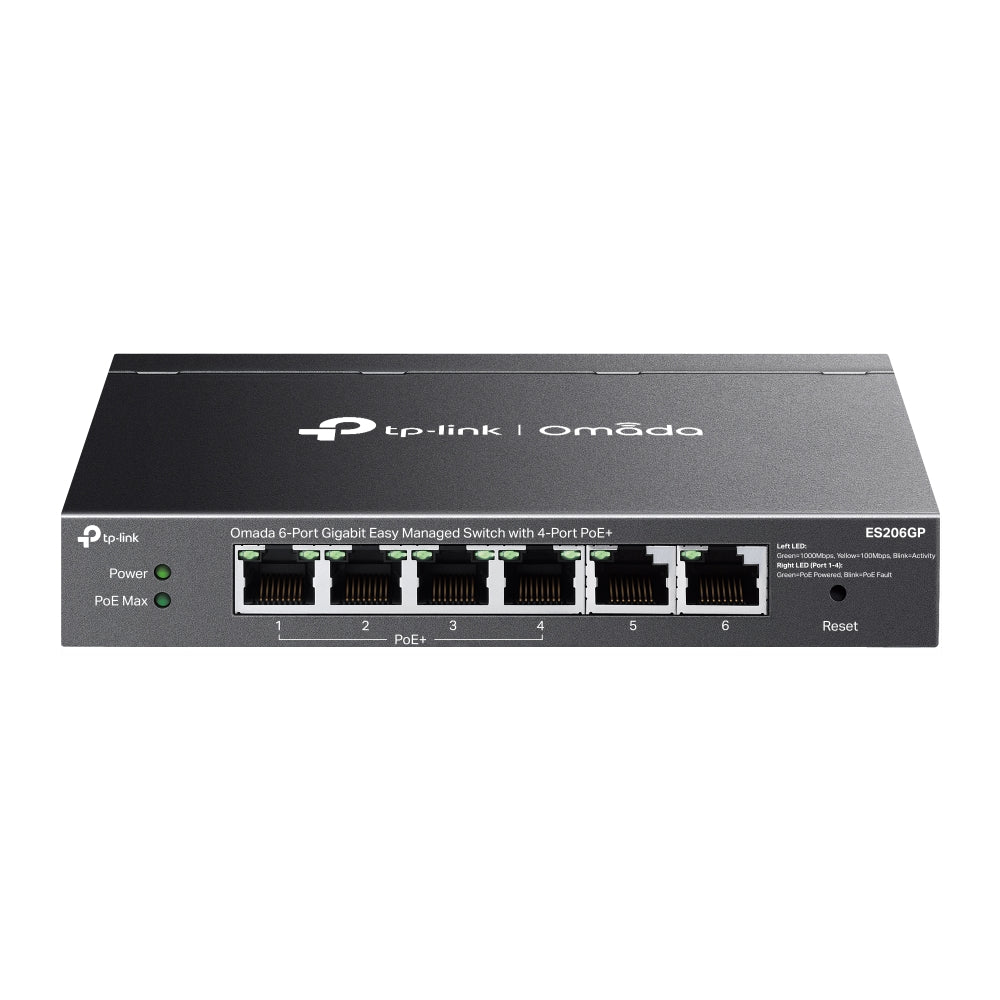

ES206GP - TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
Description
Description
The TP-Link ES206GP is an Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, designed to make it simple to power and connect access points, IP cameras and other network devices. With a 65W PoE budget and plug-and-play operation, the ES206GP is a practical choice for small business, retail and surveillance networks that want cloud-managed capability without complexity.
Housed in a durable metal casing with a fanless design for silent operation, the ES206GP suits desktop or wall-mounted installation. It integrates with the wider Omada ecosystem, so you can start in standalone mode and scale up to centralised management as your network grows.
Key Features
- 6× 10/100/1000 Mbps Gigabit RJ45 ports, including 4× 802.3af/at-compliant PoE+ ports
- 65W PoE power budget, with up to 30W available on each PoE port
- Easy to use: plug-and-play connectivity with simple configuration for additional features
- Centralised cloud management via the web or the Omada app (requires an Omada controller)
- Up to 250m PoE transmission (Extend Mode), PoE Auto Recovery (standalone mode), QoS and Port Isolation for reliable surveillance networking
- Automatic loop prevention, 802.1Q VLAN (up to 32 VLAN groups) and IGMP Snooping
- Fast PoE and Perpetual PoE support
- 12 Gbps switching capacity, 8.93 Mpps forwarding rate, 8K MAC address table and 15 KB jumbo frame support
- Fanless design for silent operation and durable metal casing
- Desktop or wall mounting, with a compact footprint of 158 × 100.7 × 25.4 mm
- Supports Zero-Touch Provisioning, batch configuration and batch firmware upgrades when used with the appropriate Omada controller
Ideal for
Small businesses, shops, offices and home offices, and installers deploying IP camera or Wi-Fi access point networks that need a quiet, compact, PoE+ switch with optional Omada cloud management.
Compatible Products
The ES206GP works with 802.3af/at PoE and non-PoE devices, such as IP cameras, wireless access points and IP phones. It integrates with the Omada ecosystem and can be managed using the Omada Hardware Controller, Omada Cloud-Based Controller or Omada Software Controller.
Package Contents
- ES206GP switch
- Power adapter
- Power cord
- Mounting feet
- Installation guide
Please note: PoE budget figures are based on laboratory testing. Actual available power may vary due to client limitations and environmental factors.
FAQs
Why can I configure fewer VLANs than expected on my Agile switch?
When an Omada Agile (ES Series) switch is used with an Omada Controller, the number of available VLANs may be 31 rather than the expected 32.
How do I find the IP address of my Omada devices?
By default, Omada devices use dynamic IP addresses and should obtain one automatically from a DHCP server. You can find it using the Omada app or the Discover Utility, in either standalone or controller mode.
Can the PoE ports connect to non-PoE devices?
Yes. The PoE ports can also connect to non-PoE devices, but will only transmit data.
What management modes does the ES206GP support?
The switch supports Standalone Mode, where it is configured and managed individually, and Controller Mode, where network devices are managed centrally. Switching from Standalone to Controller Mode will cause the switch's configuration to be lost.
