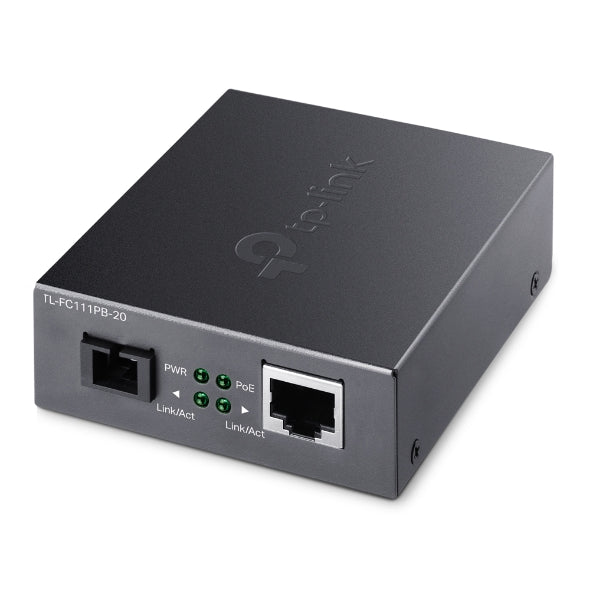

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE



Converts the data between fiber (optical signal) and copper (electric signal).

Extends fiber distance up to 20 km.

The 802.3af PoE output makes remote camera deployment easier and more convenient.

WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.

Wide operating temperature (0–50 ℃) with reliability.

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.



NETWORK

Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u



ENVIRONMENT

Operating Temperature 0–50 °C (32–122 °F)

Storage Temperature -40–70 °C (-40–158 °F)

Operating Humidity 10–90% RH non-condensing

Storage Humidity 5–90% RH non-condensing



HARDWARE FEATURES

Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)

Power Supply 48 V/0.5 A

LED PWR, Link/Act, PoE

Dimensions ( W x D x H ) (94.5—73.0—27.0 mm)

Wave Length 1310 nm TX, 1550 nm RX



ANTENNA

Connector Type 1— 10/100 Mbps PoE RJ45 port

1— 100 Mbps SC fiber port

MEDIA CONVERTER & MODULE

Fiber Type 9/125 μm single-mode fber (≤20 km)
