Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

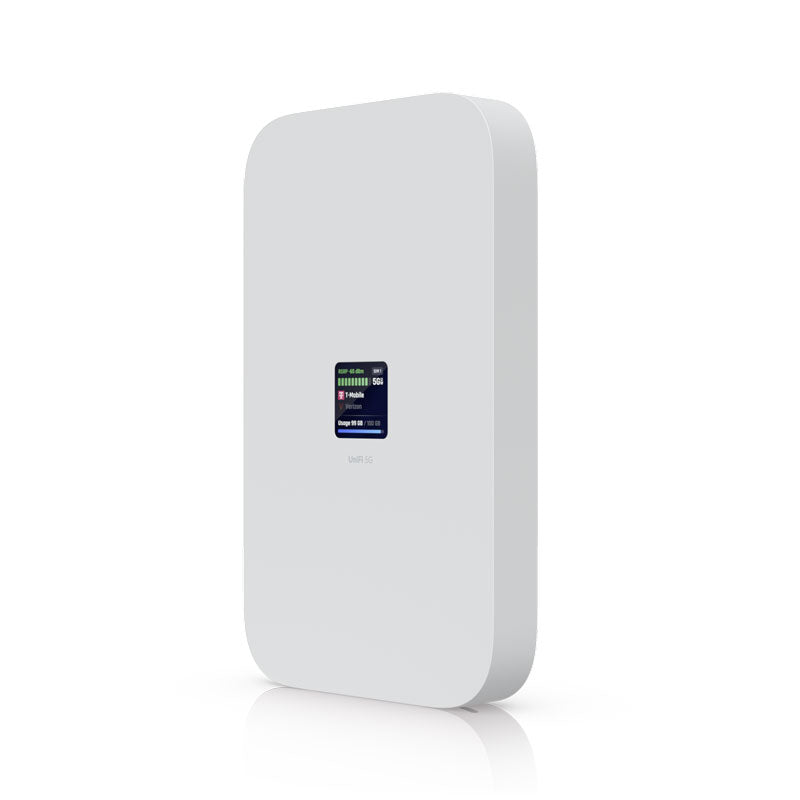

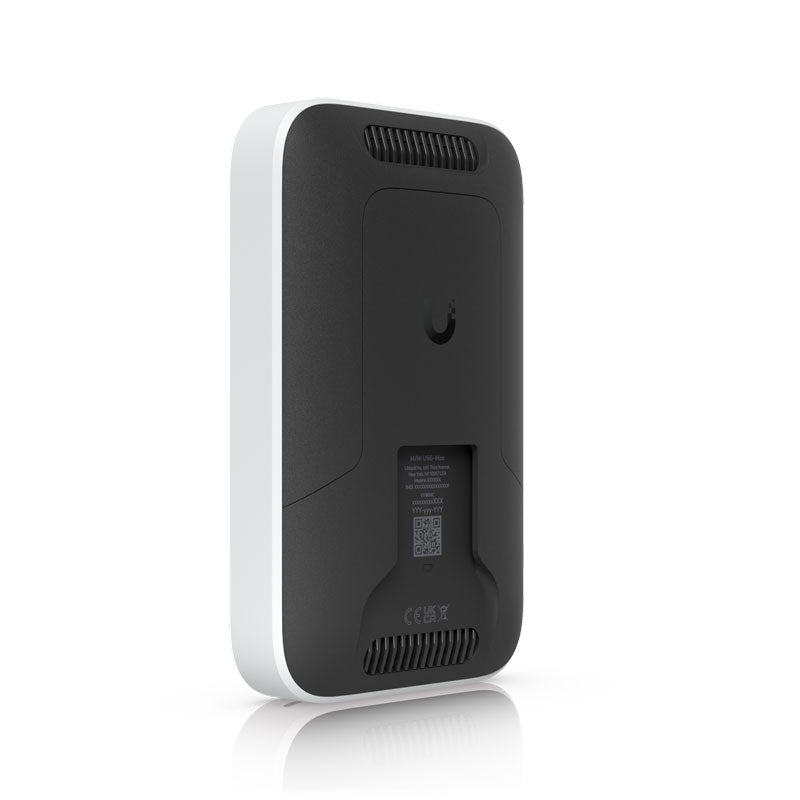

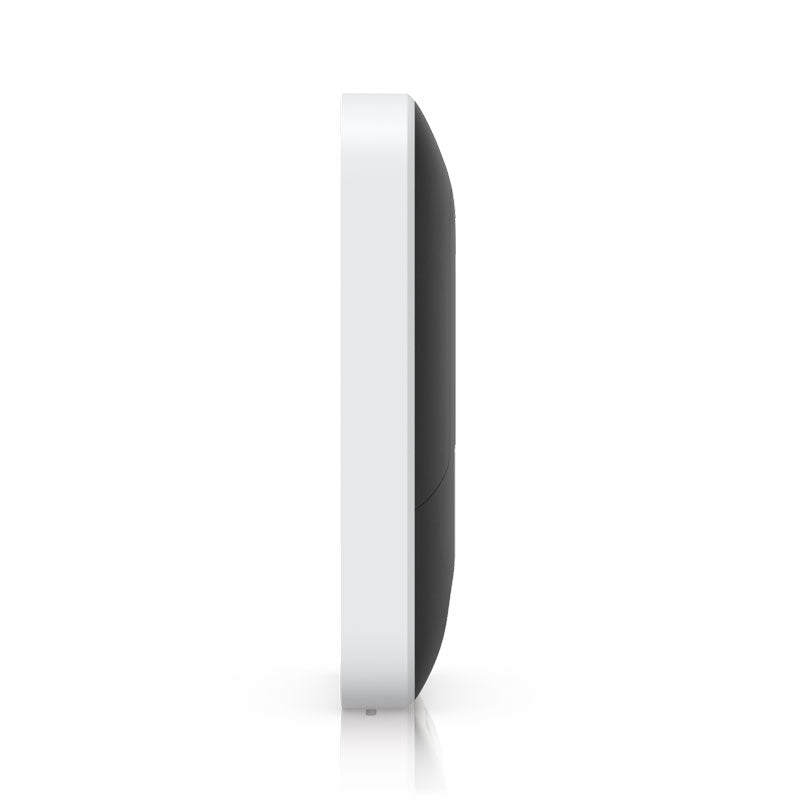

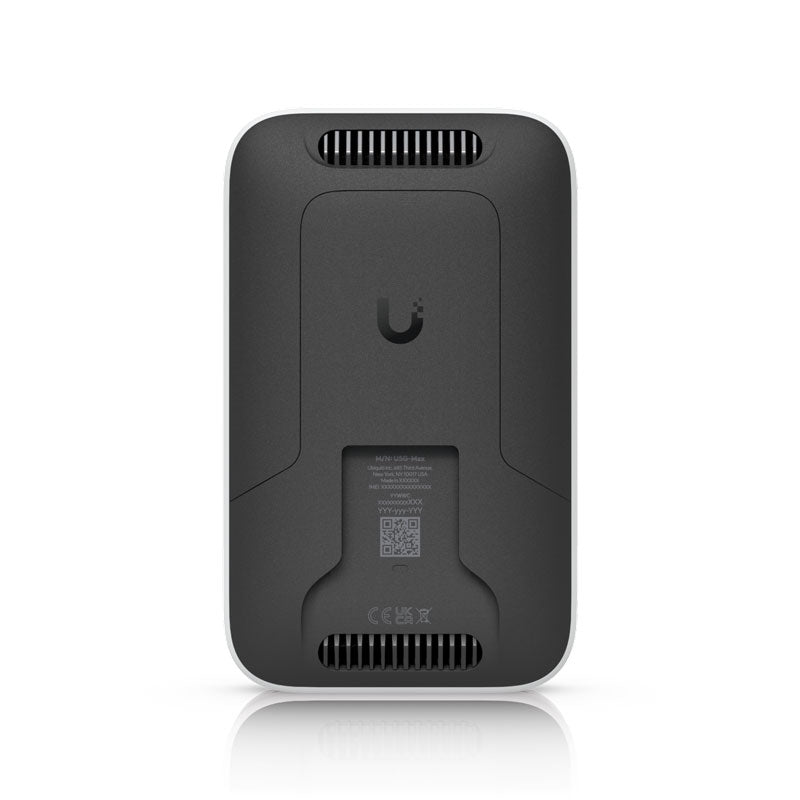

U5G-Max Ubiquiti UniFi 5G Max
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
UniFi 5G Max is a high-performance 5G modem designed to enhance any UniFi Cloud Gateway or UniFi Gateway with reliable cellular connectivity.
Featuring high-performance 5G (3.4 Gbps) modem, it is suitable for any Unifi deployment. Instantly adopted through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
It supports dual SIM, with a secondary physical or eSIM, enabling seamless failover for critical applications. Ideal if you need stable, high-performance WAN connectivity for your UniFi network and want seamless backup internet without interrupting your IP assignments.
Specifications25 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | Device: 200 x 38 x 20.2 mm / (7.9 x 1.5 x 0.8") / Table stand: 48.1 x 48 x 55.2 mm / (1.9 x 1.9 x 2.2") |
| Networking Interface | (1) GbE RJ45 port / 5G RedCap and LTE |
| SIM | (1) Nano-SIM (4FF) / (1) eSIM |
| PoE Interface | (1) PoE input |

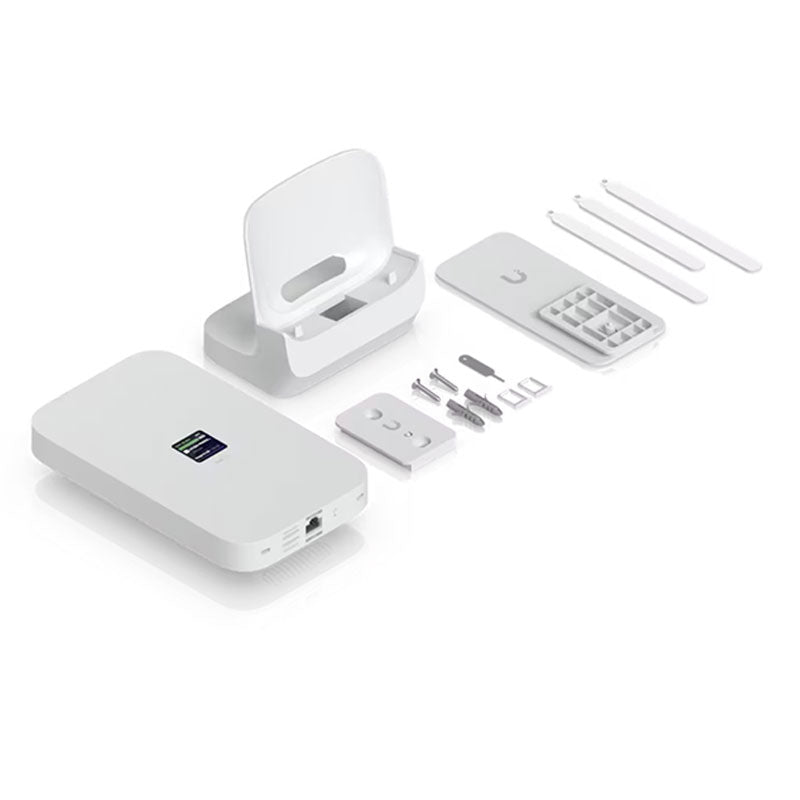

| Mounting | Desktop stand, wall, window mount (Included) |
| Mechanical | |
| Weight | Device: 122 g (4.3 oz) / Stand: 138 g (4.9 oz) / Wall mount: 66 g ( 2.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Galvanized steel, silicone rubber |
| Hardware | |
| Management | Ethernet |
| 5G NR · Category | 5G RedCap |
| 5G NR · Frequency Bands | n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41*, n48, n66, n71, n77, n78 |
| 5G NR · Max. TX Power | 23 dBm |
| 4G LTE · Frequency Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41,B42, B43, B48, B66, B71 |
| 4G LTE · Max. TX Power | HPUE power class 2: 26 dBm |
| Peak Data Speed · 5G SA | Downlink 220 Mbps / Uplink 120 Mbps |
| Peak Data Speed · 4G LTE | Downlink 195 Mbps / Uplink 100 Mbps |
| Antennas · Type | (2) Embedded omni-directional cellular antennas |
| Power Method | PoE |

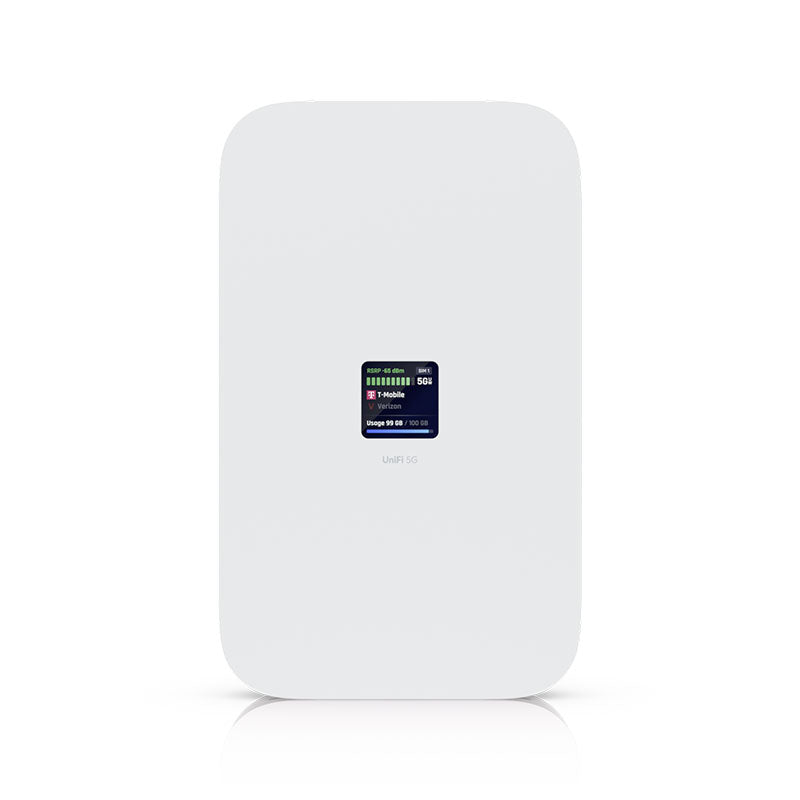

| Display | 1.14" status display |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile |
| Software | |
| Application Requirements · UniFi Network | Version 10.4.57 and later |
| Application Requirements · Mobile App | UniFi iOS™ version 10.35.0 and later / UniFi Android™ version 10.38.2 and later |
