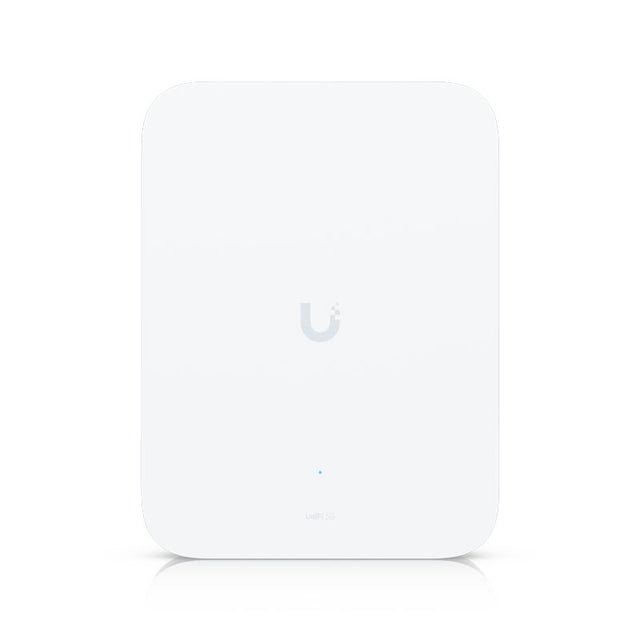

U5G-Max-Outdoor Ubiquiti UniFi 5G Max Outdoor
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

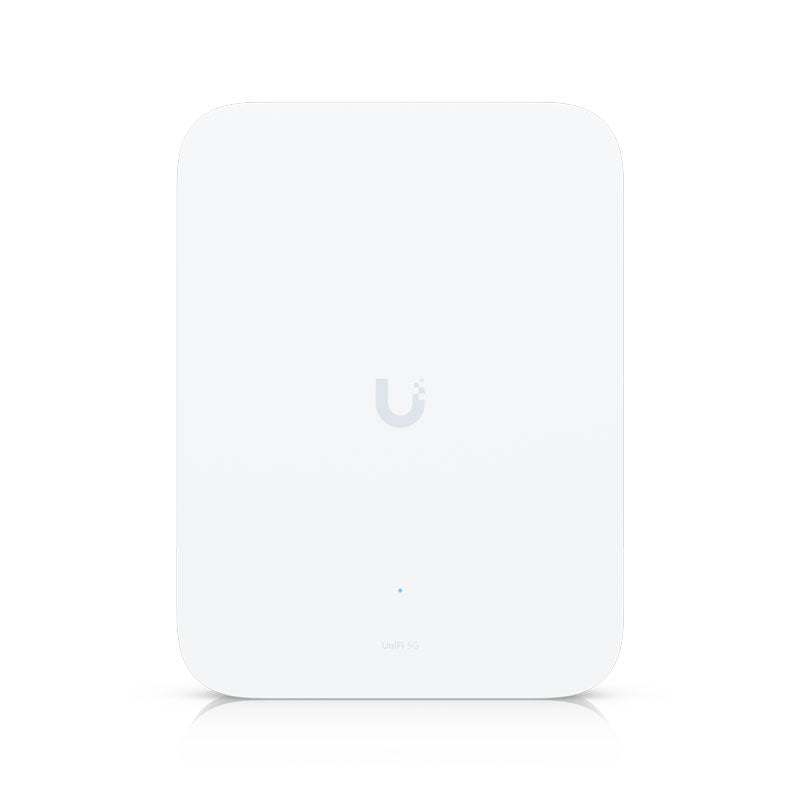

UniFi 5G Max Outdoor is a high-performance 5G solution for UniFi consoles and Cloud Gateways, specifically engineered for outdoor environments.

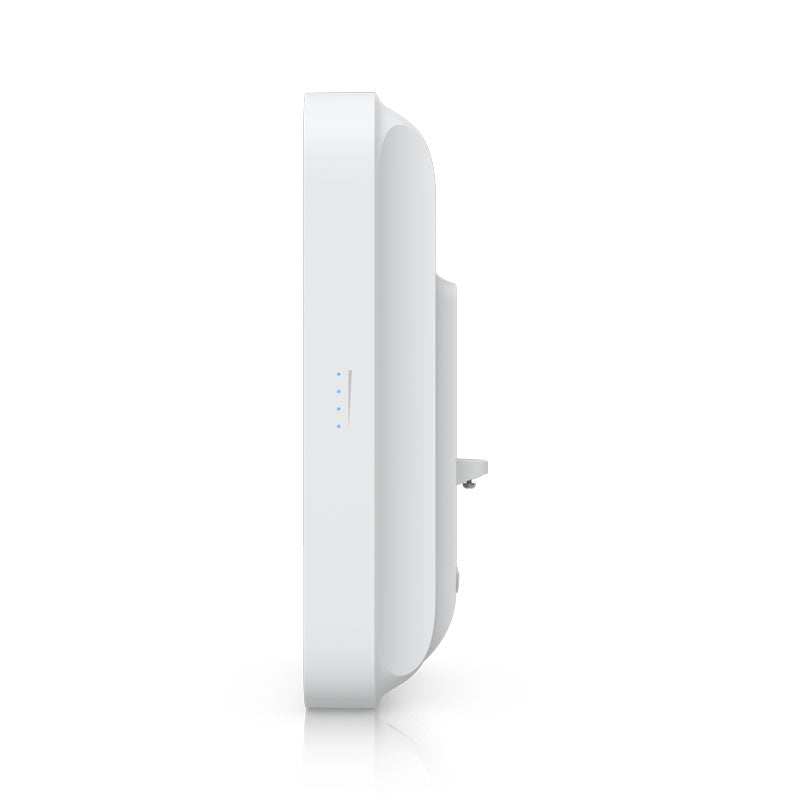

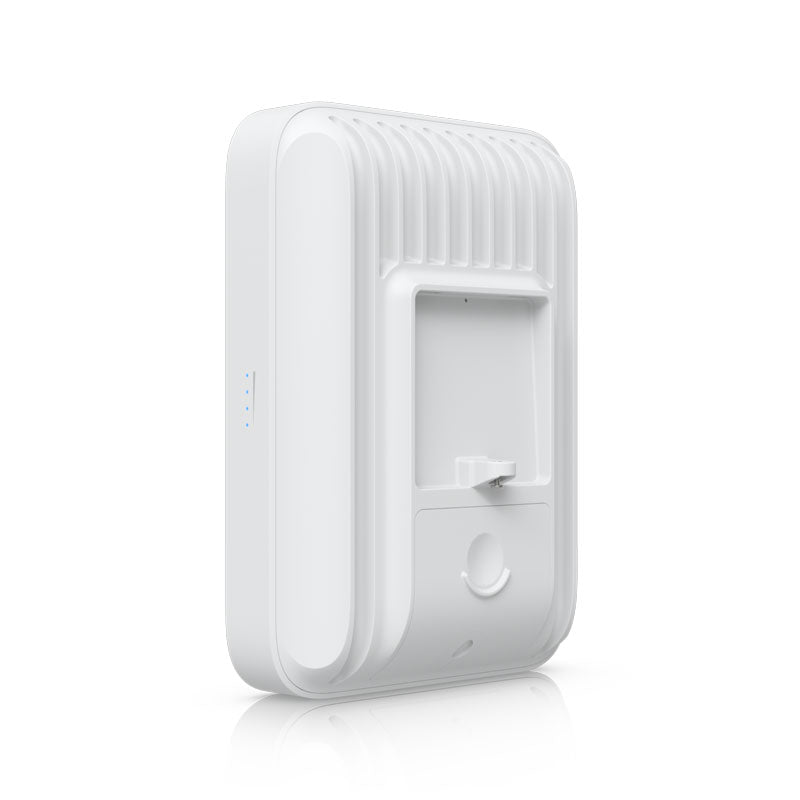

The full-performance 5G (3.4 Gbps) modem is designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover. The UniFi 5G Max Outdoor is designed with enhanced weatherproofing. It features a rugged, weather-resistant enclosure rated at IPX6 for protection against harsh conditions.

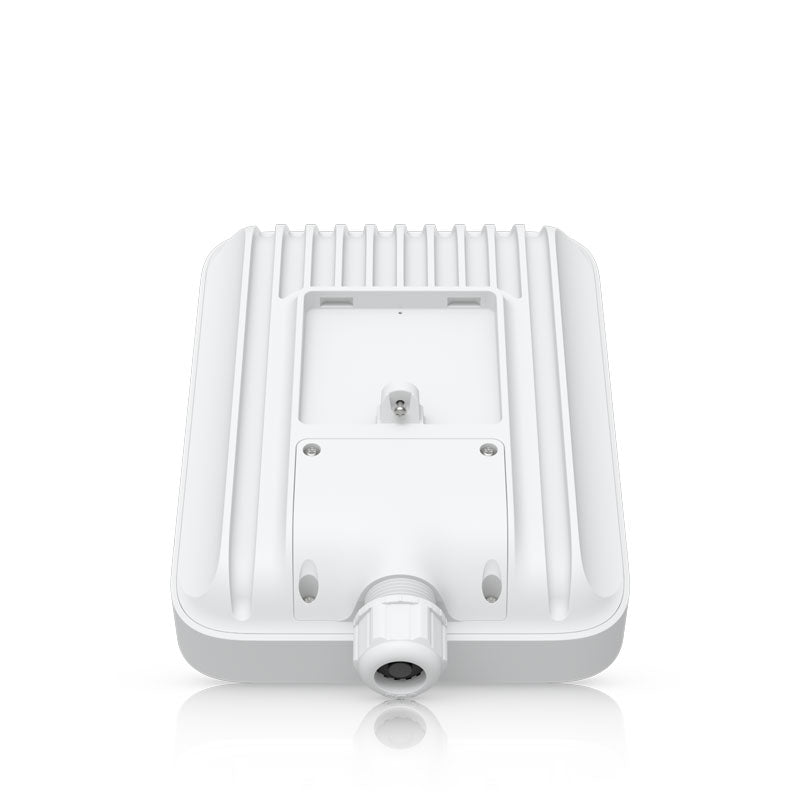

For greater protection against the elements, upgrade to an IP67 rating using the included cable-gland door kit. In addition, the UniFi 5G Max Outdoor features a built-in high-gain directional antenna operating on the n77/n78 bands. It delivers stronger, more consistent performance in outdoor environments by improving signal reception and extending coverage.
Options for power method, depending on how the device is connected:
- For LAN Connections: Power the device using any PoE switch or a PoE adapter (not included).
- For WAN Connections: Power the device using PoE adapter (not included). Please ensure a direct connection to your gateway.
Frequently asked questions4 questions
What is the UniFi 5G Max Outdoor designed for?
How weatherproof is it?
Does it have a built-in antenna?
How do I power the UniFi 5G Max Outdoor?
Specifications25 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | Device: 200 x 38 x 20.2 mm / (7.9 x 1.5 x 0.8") / Table stand: 48.1 x 48 x 55.2 mm / (1.9 x 1.9 x 2.2") |

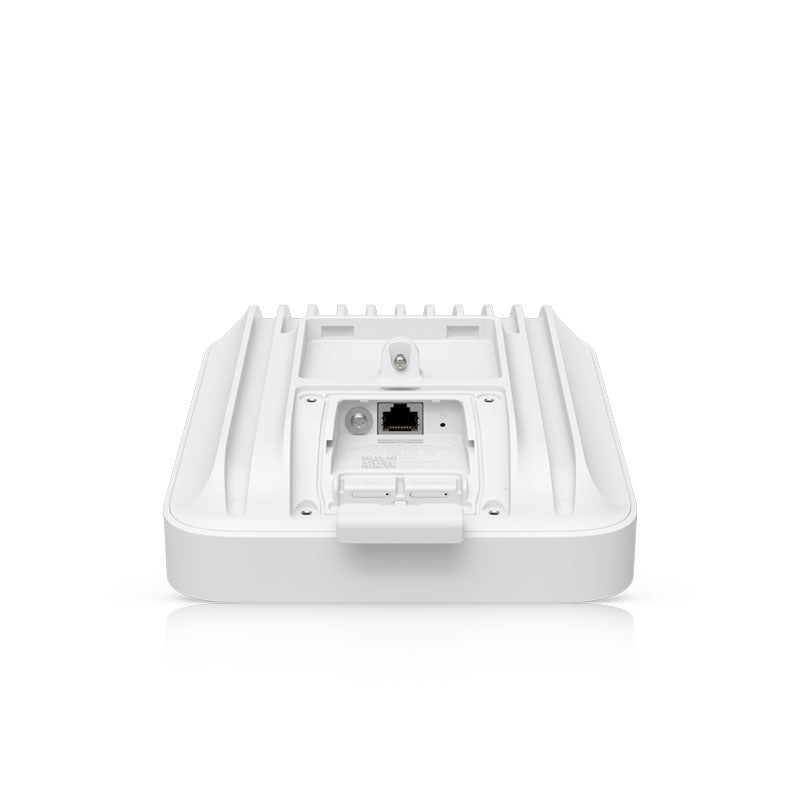

| Networking Interface | (1) GbE RJ45 port / 5G RedCap and LTE |
| SIM | (1) Nano-SIM (4FF) / (1) eSIM |
| PoE Interface | (1) PoE input |

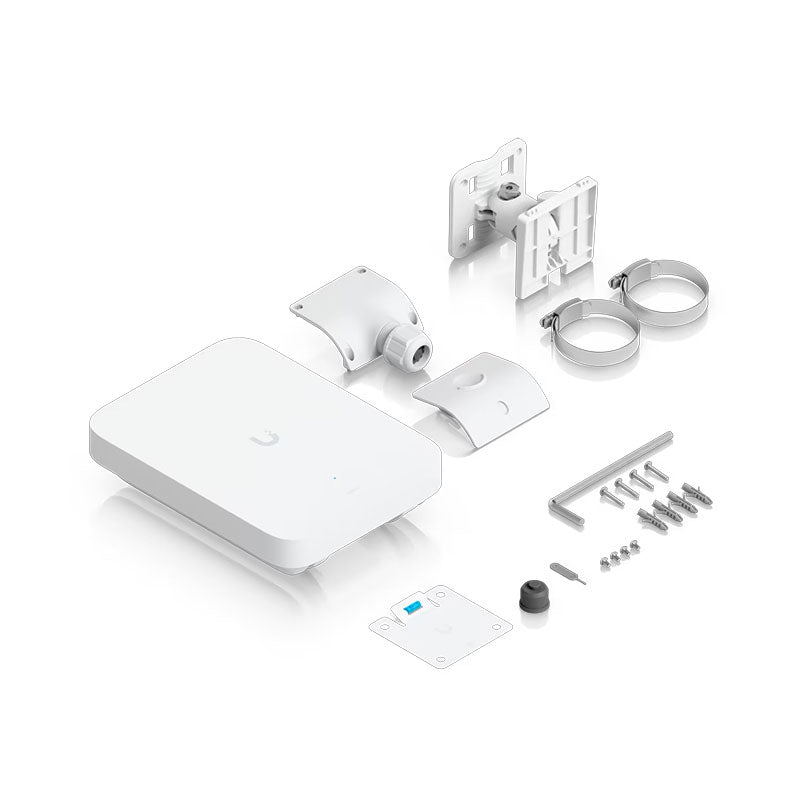

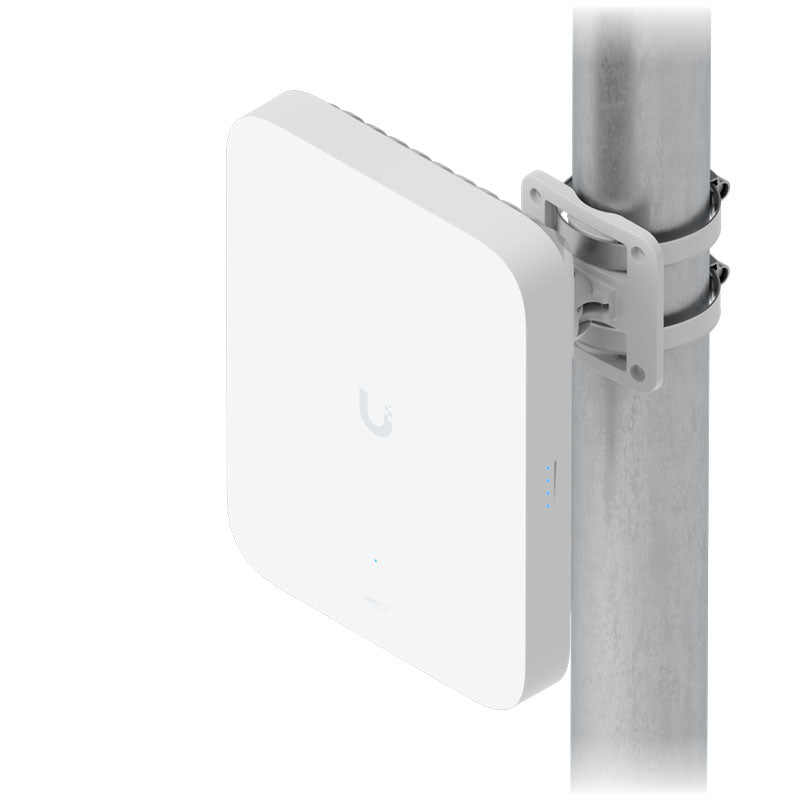

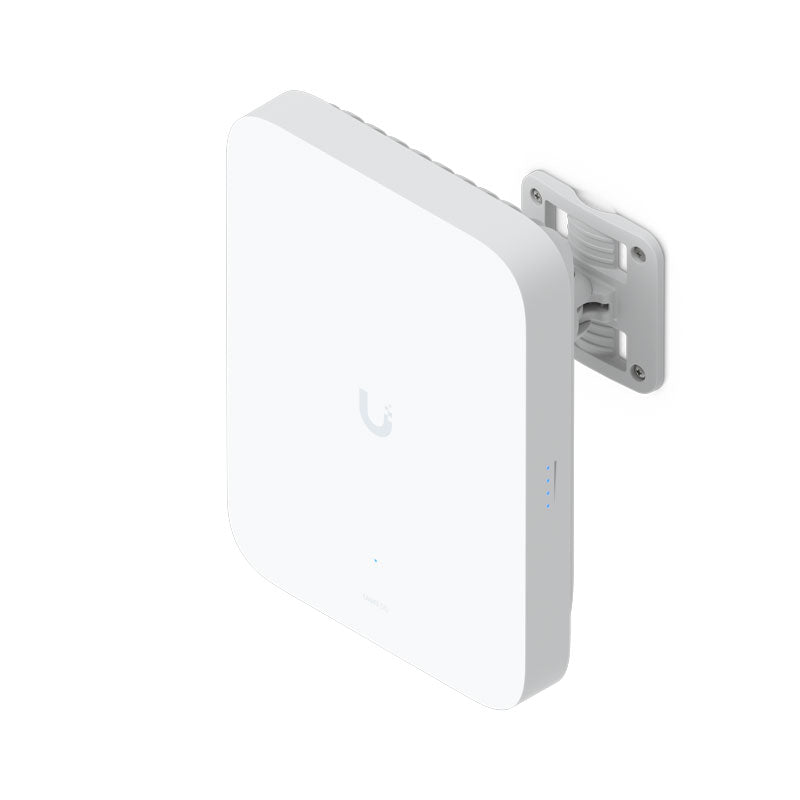

| Mounting | Desktop stand, wall, window mount (Included) |
| Mechanical | |
| Weight | Device: 122 g (4.3 oz) / Stand: 138 g (4.9 oz) / Wall mount: 66 g ( 2.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Galvanized steel, silicone rubber |
| Hardware | |
| Management | Ethernet |
| 5G NR · Category | 5G RedCap |
| 5G NR · Frequency Bands | n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41*, n48, n66, n71, n77, n78 |
| 5G NR · Max. TX Power | 23 dBm |
| 4G LTE · Frequency Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41,B42, B43, B48, B66, B71 |
| 4G LTE · Max. TX Power | HPUE power class 2: 26 dBm |
| Peak Data Speed · 5G SA | Downlink 220 Mbps / Uplink 120 Mbps |
| Peak Data Speed · 4G LTE | Downlink 195 Mbps / Uplink 100 Mbps |
| Antennas · Type | (2) Embedded omni-directional cellular antennas |
| Power Method | PoE |
| Display | 1.14" status display |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile |
| Software | |
| Application Requirements · UniFi Network | Version 10.4.57 and later |
| Application Requirements · Mobile App | UniFi iOS™ version 10.35.0 and later / UniFi Android™ version 10.38.2 and later |
