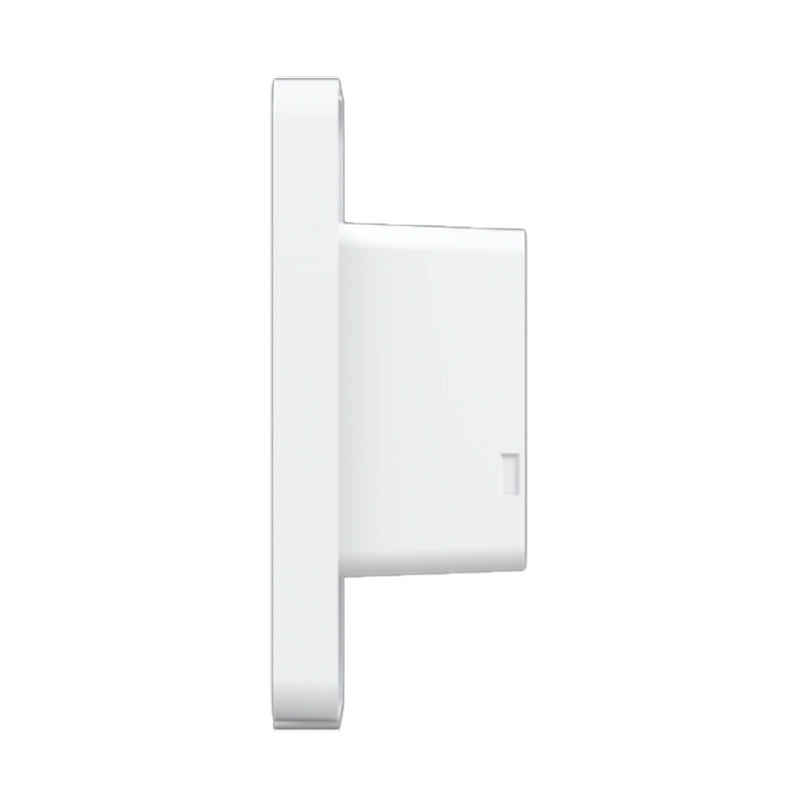

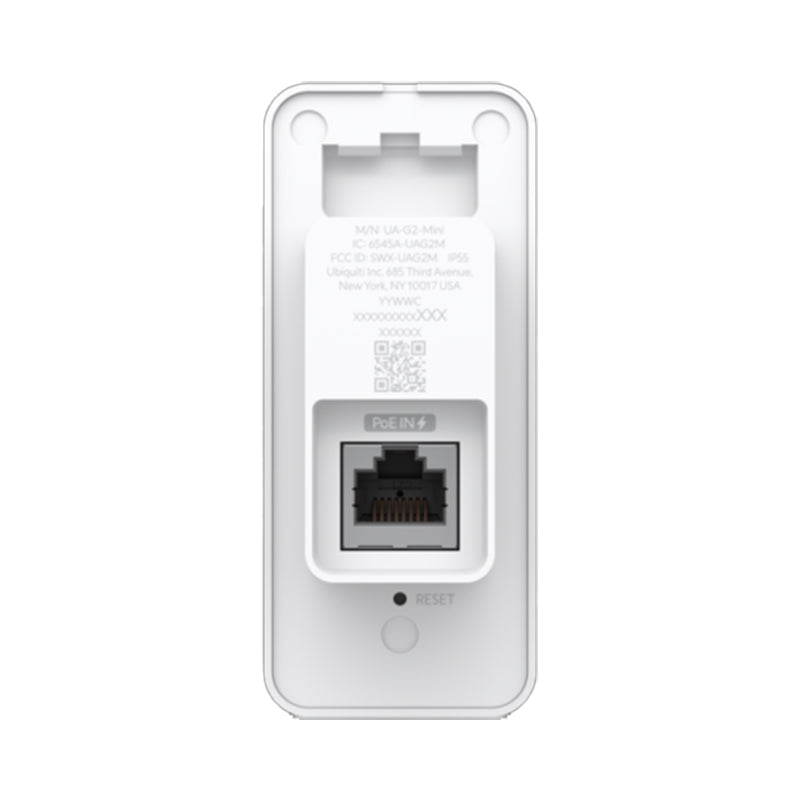

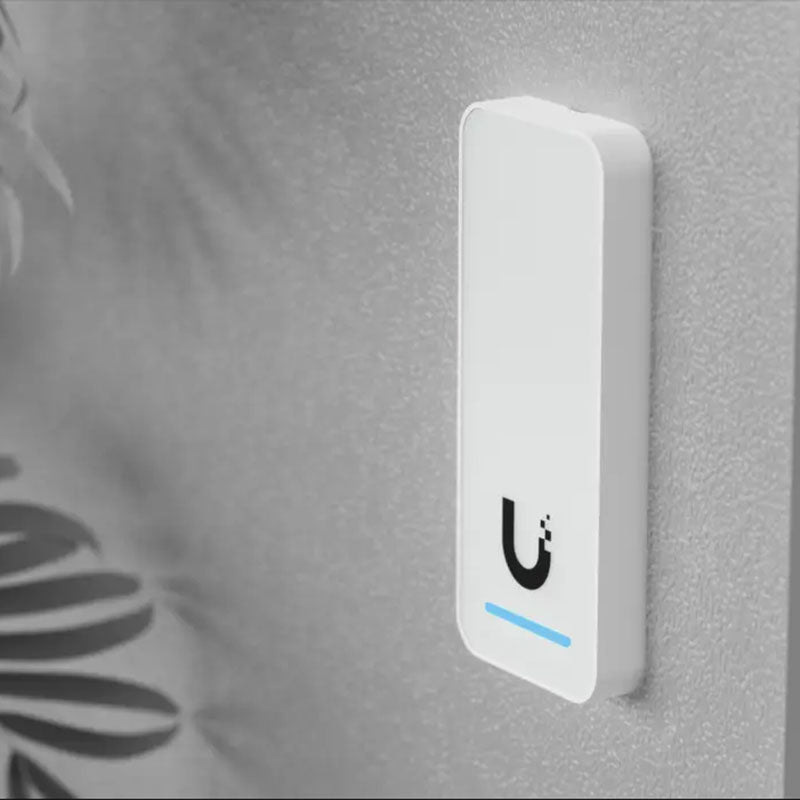

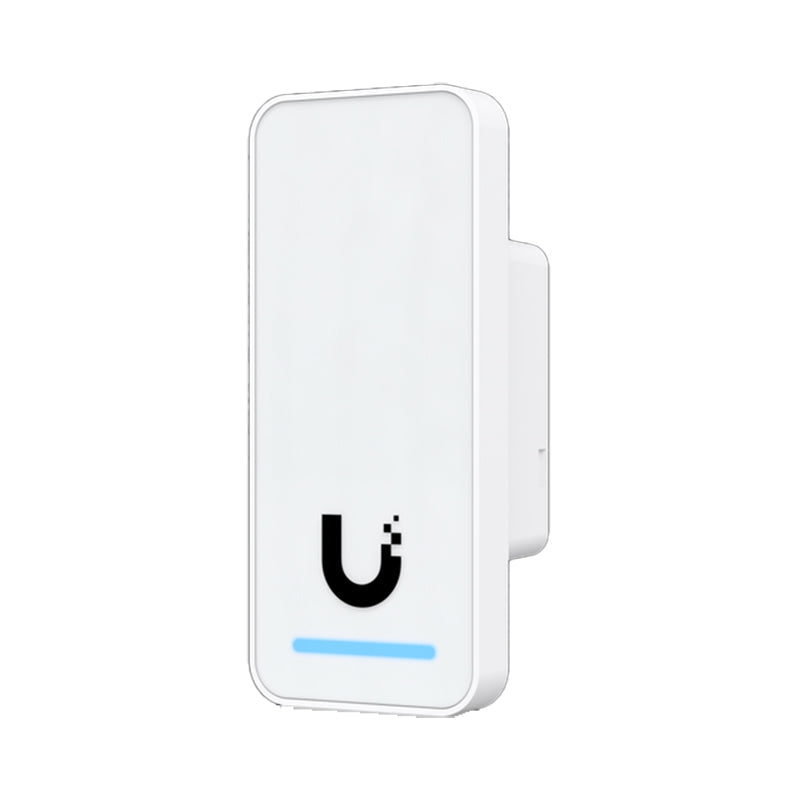

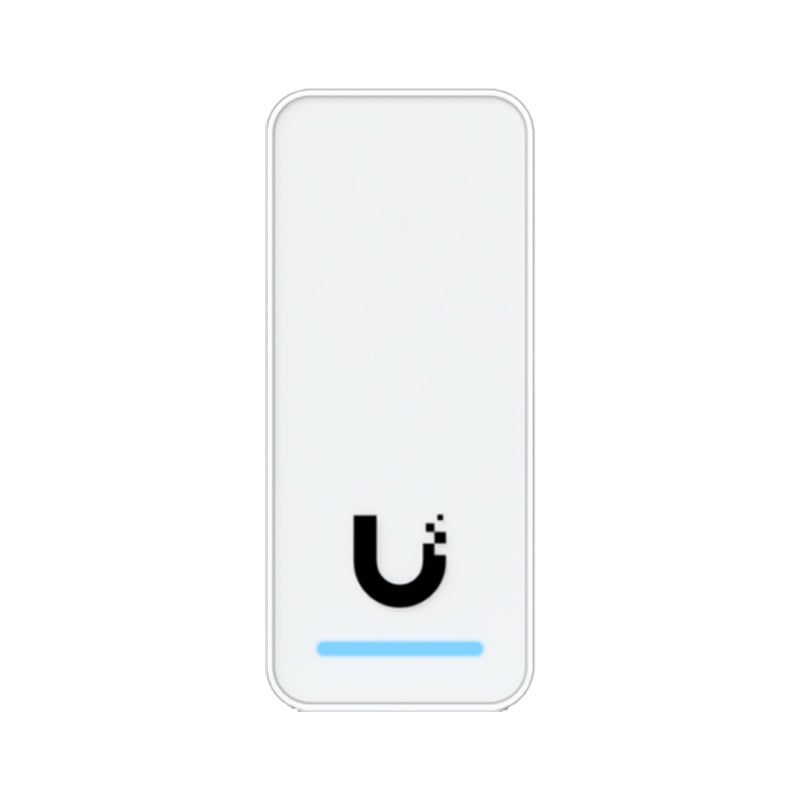

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

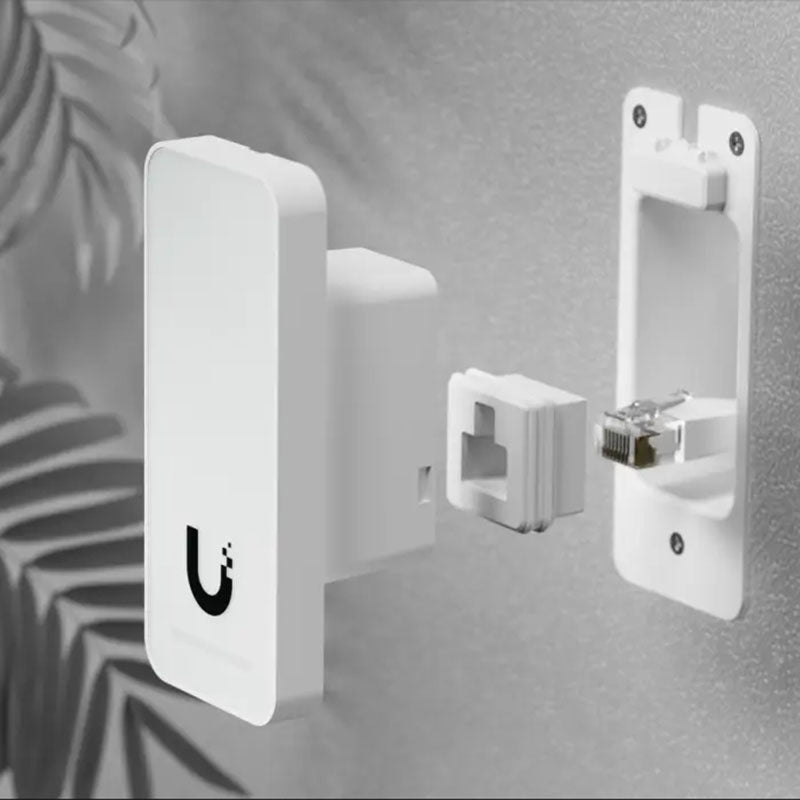

UA-G2 Ubiquiti UniFi Access Reader G2
Description
Description
Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.
The Ubiquiti UniFi Access G2 is a cutting-edge access control system that offers convenient and secure entry to your premises. With the ability to unlock using either an NFC card or the UniFi Identity mobile app, authorised individuals can easily gain access. The device boasts additional handwave unlock functionality, further enhancing accessibility.
The UniFi Access G2 features entry and exit greeting messages, allowing for personalised and informative interactions. By connecting to the UniFi Access Hub using Power over Ethernet (PoE), it ensures a seamless integration into your network infrastructure.
Its IP55 weather resistance rating enables reliable operation in a wide range of environmental conditions, spanning from -30 to 45°C.
Features:
Unlock using an NFC card or UniFi Identity mobile app
Additional handwave unlock functionality
Entry and exit greeting messages
Connects to UniFi Access Hub using PoE
IP55 weather resistance (-30 to 45° C)
Specifications30 specifications · 4 sections
| Overview | |
|---|---|

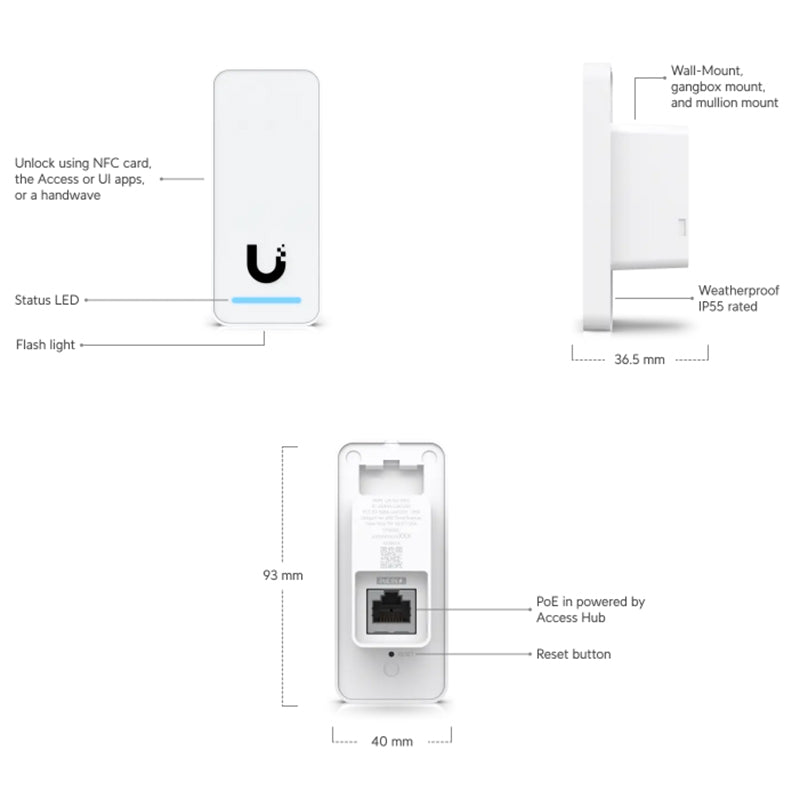

| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |

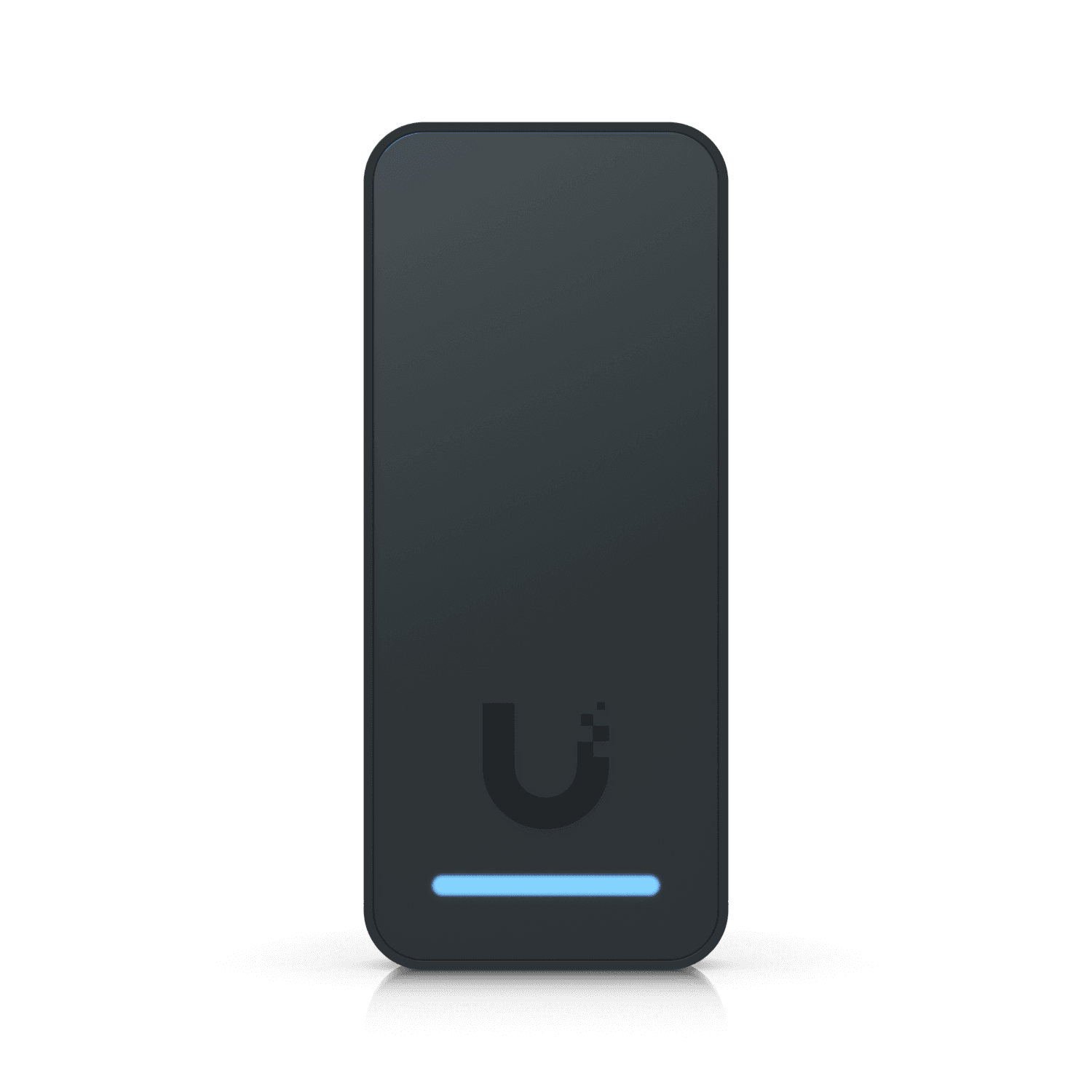

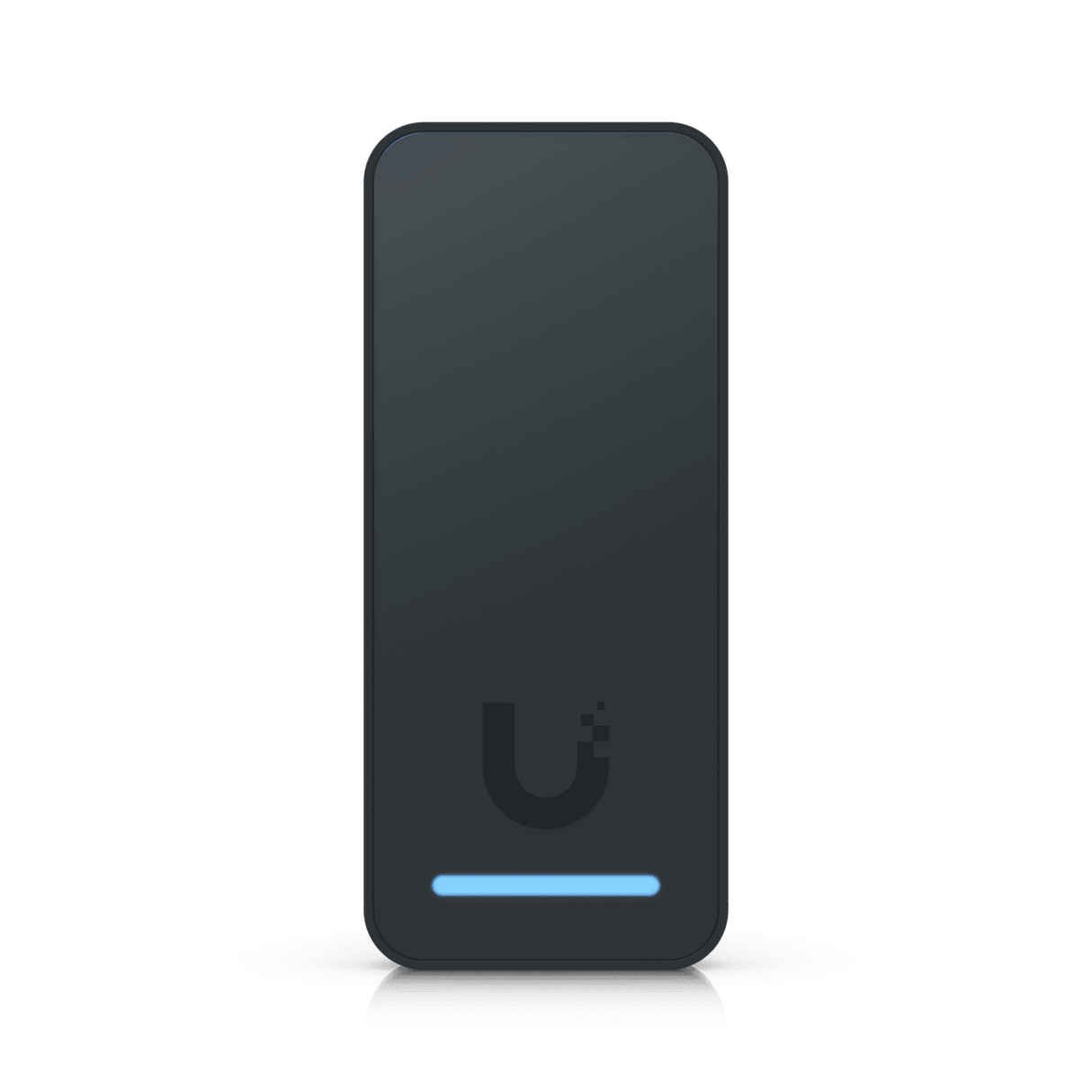

| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 |
| Ambient Operating Temperature | -30 to 45° C / (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
