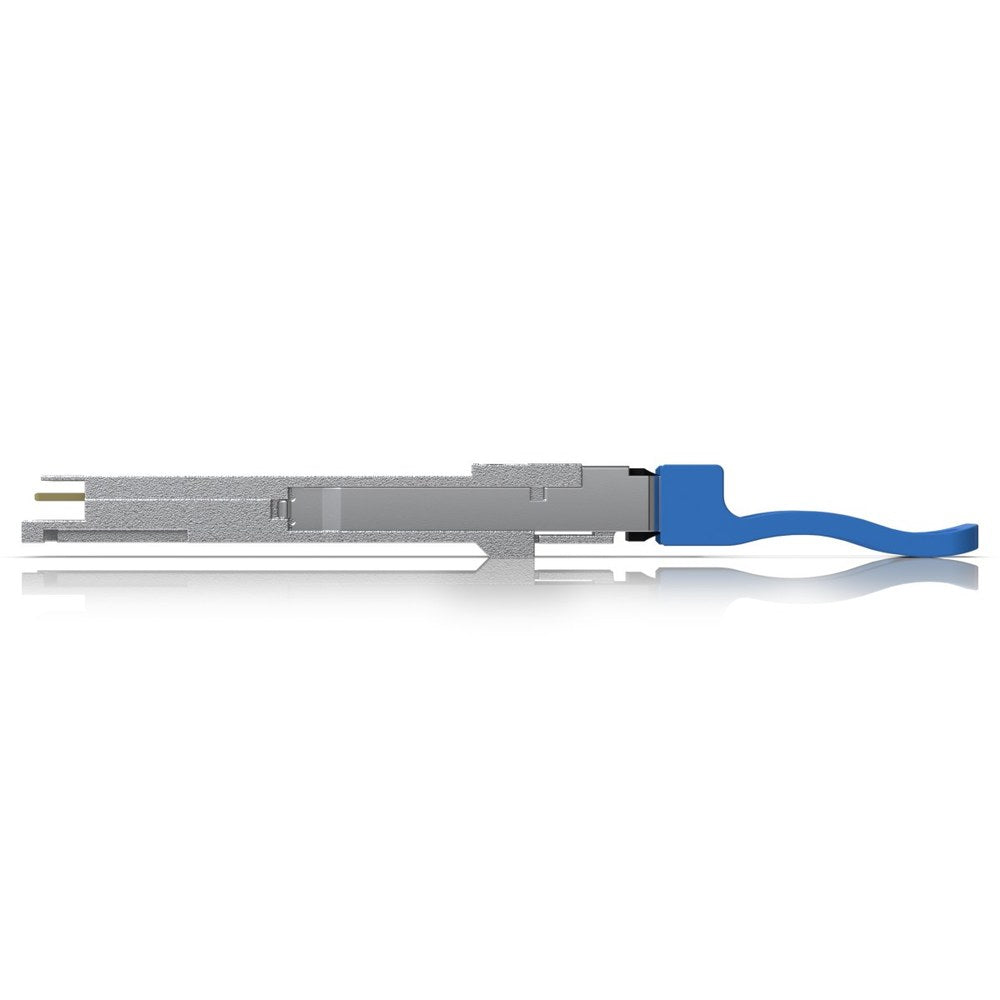

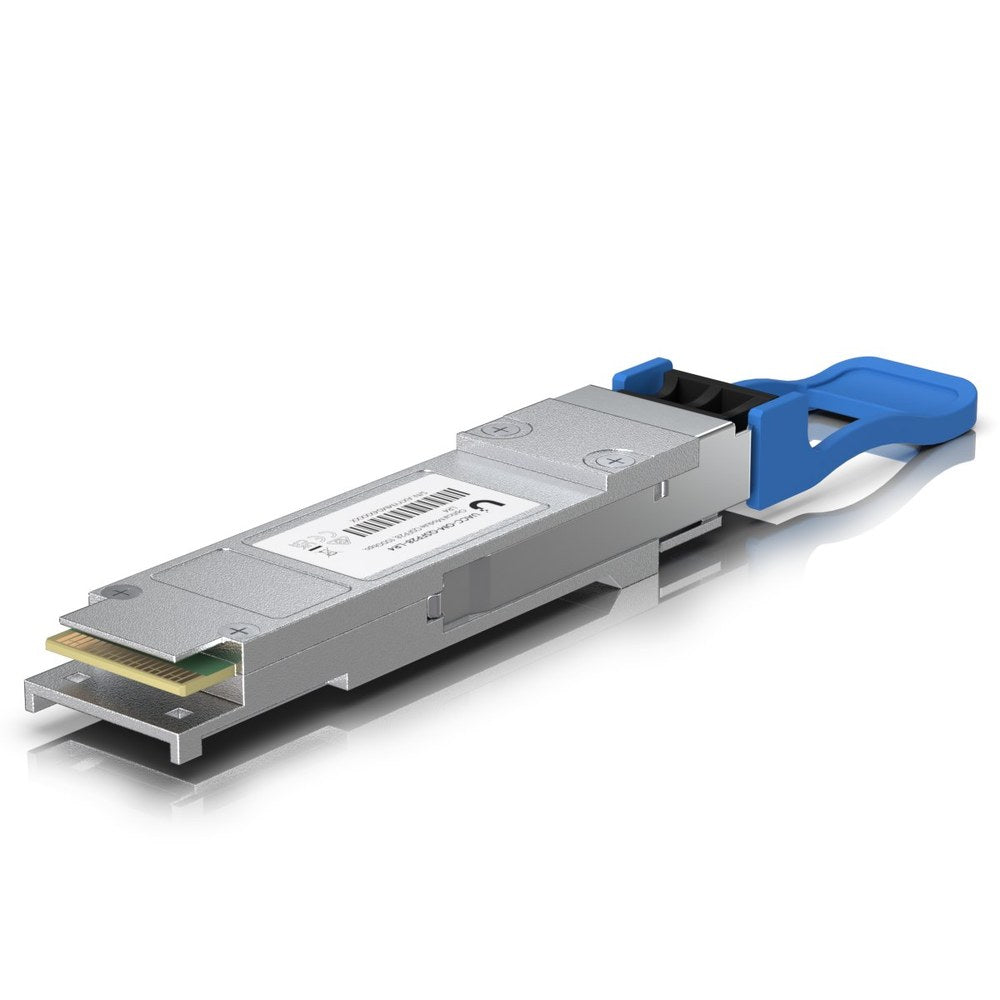

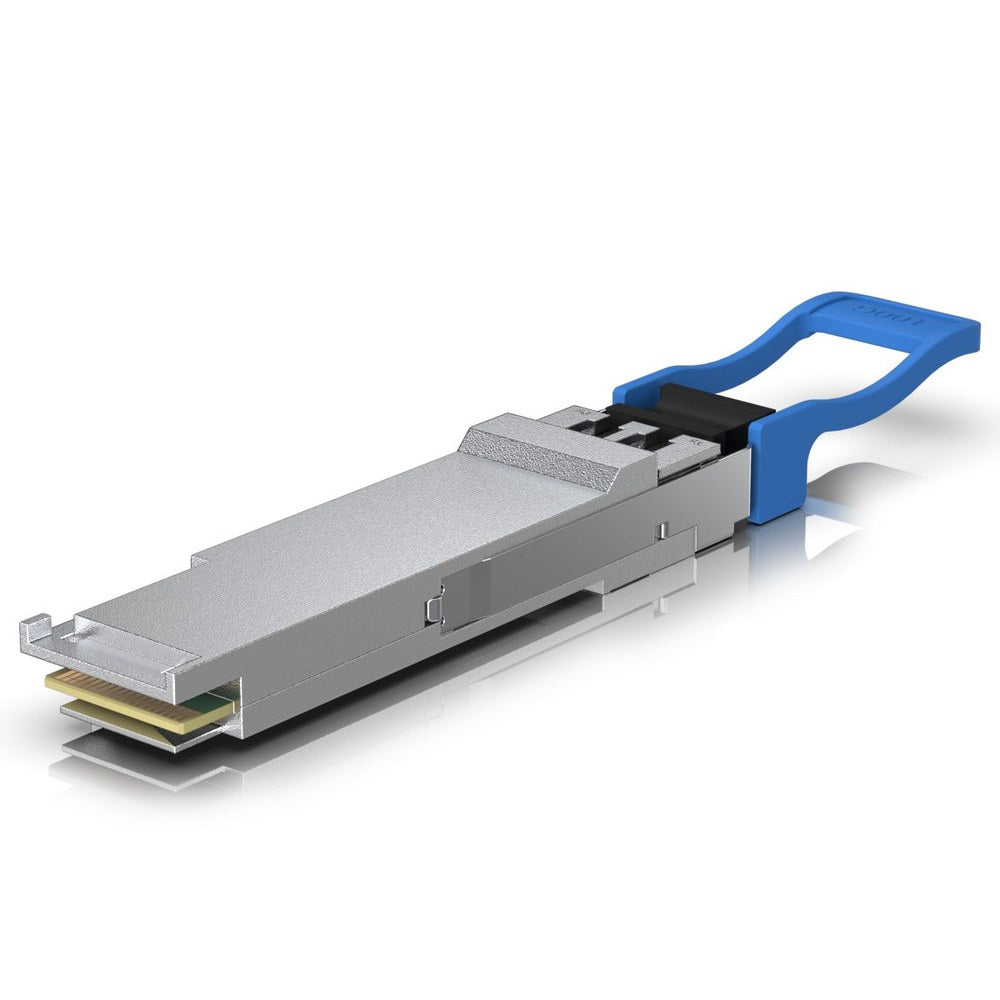

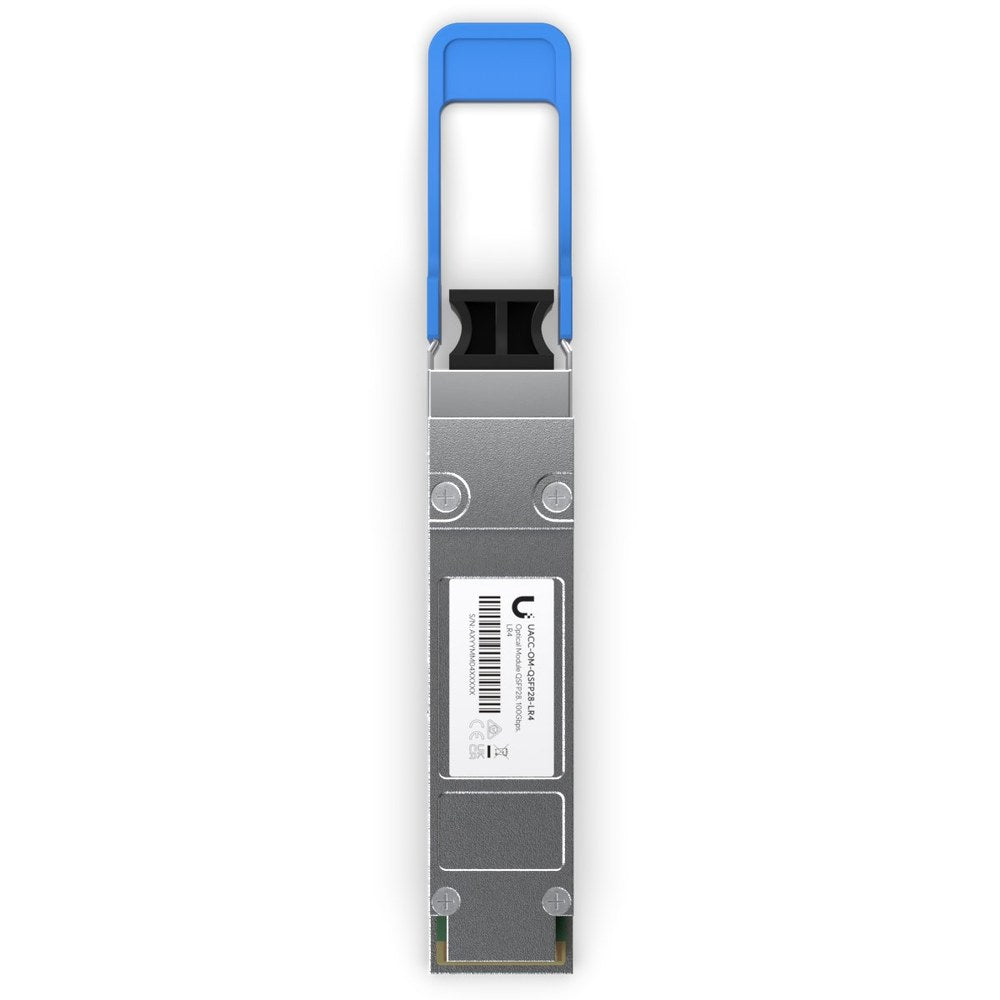

UACC-OM-QSFP28-LR4 - Ubiquiti 100G LR4 Single-Mode Optical Module

The Ubiquiti 100G LR4 Single-Mode Optical Module (UACC-OM-QSFP28-LR4) is a high-performance QSFP28 transceiver designed to deliver 100 Gbps connectivity over distances of up to 10 km using single-mode fibre. With its duplex LC UPC connector, this optical module is engineered for demanding network environments requiring reliable, high-speed uplinks and long-distance fibre connections.

Built for enterprise-grade performance, the UACC-OM-QSFP28-LR4 supports maximum data rates of 100 Gbps and is compatible with both QSFP28 and QSFP+ interfaces. Operating across multiple wavelengths (1295 / 1300 / 1304 / 1309 nm for both TX and RX), this module delivers exceptional transmission quality for backbone connectivity, aggregation networks, and high-capacity data centre deployments. With a power consumption of just 4 W and an ambient operating temperature range of 0 to 70° C, this transceiver is optimised for continuous, efficient operation in rack-mounted environments.

• 100 Gbps data rate for ultra-fast network performance
• 10 km maximum transmission distance over single-mode fibre
• QSFP28 form factor compatible with QSFP28 and QSFP+ interfaces
• Duplex LC UPC connector for secure, reliable fibre connections
• TX/RX wavelengths: 1295 / 1300 / 1304 / 1309 nm
• Power consumption: 4 W
• Operating temperature: 0 to 70° C (32 to 158° F)
• Supports high-density aggregation and long-distance uplinks

Ideal for: Network administrators, IT professionals, and system integrators building or expanding enterprise networks with high-speed 100G fibre infrastructure, data centres requiring long-distance connectivity, and large-scale UniFi deployments with aggregation switches.

Compatible Products

The UACC-OM-QSFP28-LR4 is designed for use with Ubiquiti switches featuring 100G QSFP28 ports. Compatible products include:

Enterprise Campus Aggregation (ECS-Aggregation) – 1.8 Tbps Layer 3 aggregation switch with 48x 25G SFP28 ports and 6x 100G QSFP28 uplinks, supporting MC-LAG for high availability.

Enterprise Audio/Video Fiber (EAV-Fiber) – Enterprise AV switch with 20x 10G SFP+ ports and 2x 100G QSFP28 uplinks, supporting PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio protocols.

Enterprise Audio/Video XG 24 PoE (EAV-XG-24-PoE) – Enterprise AV switch with 24x 10G PoE+++ ports and 4x 100G QSFP28 uplinks, ideal for Pro AV applications with deterministic media synchronisation.

Note: Fibre cable is not included and must be purchased separately. This is a Class 1 laser product; do not look into the ends of the fibre optic cable or module while powered.
