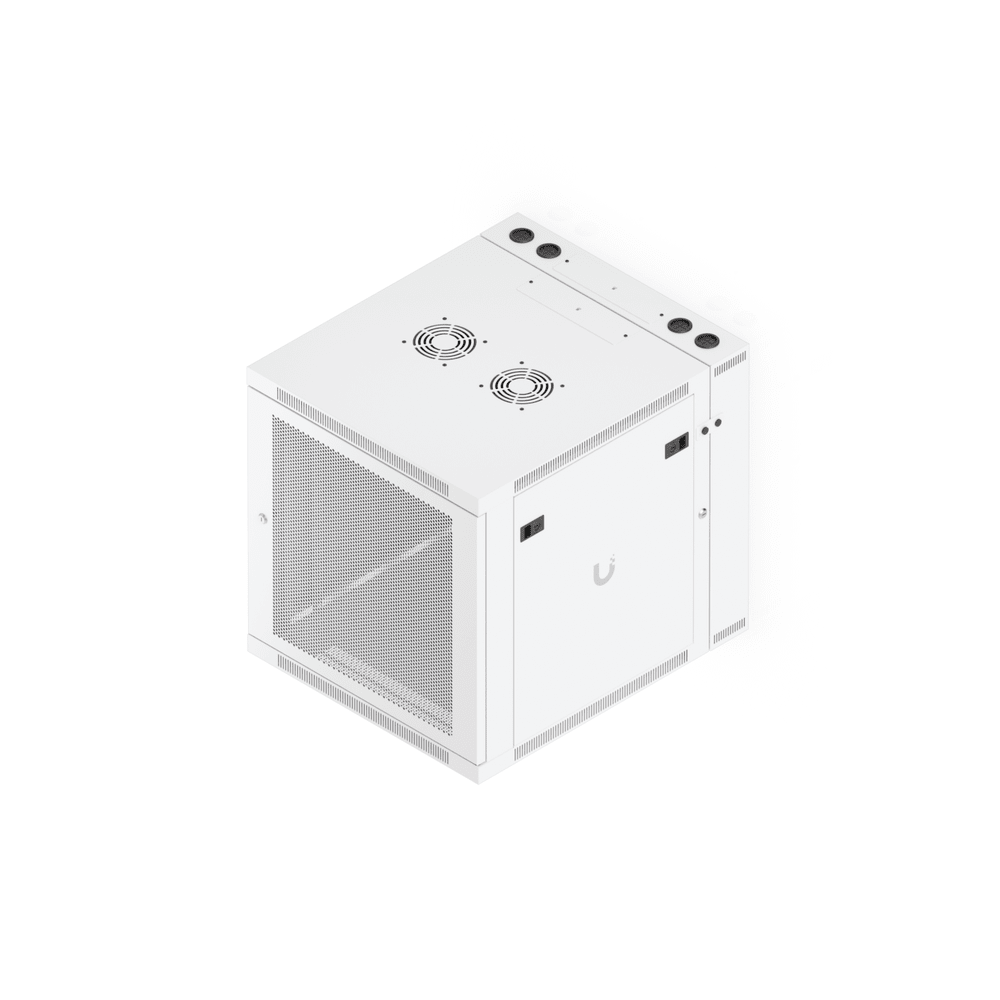

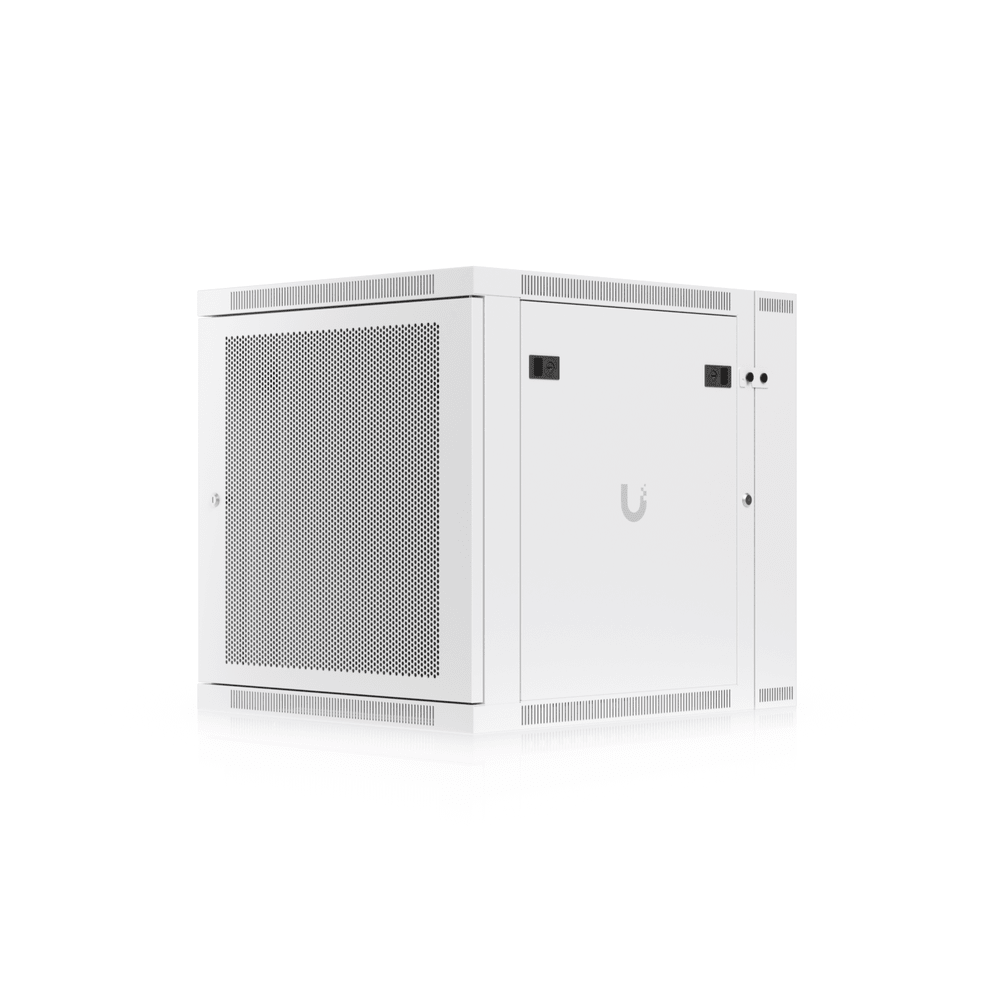

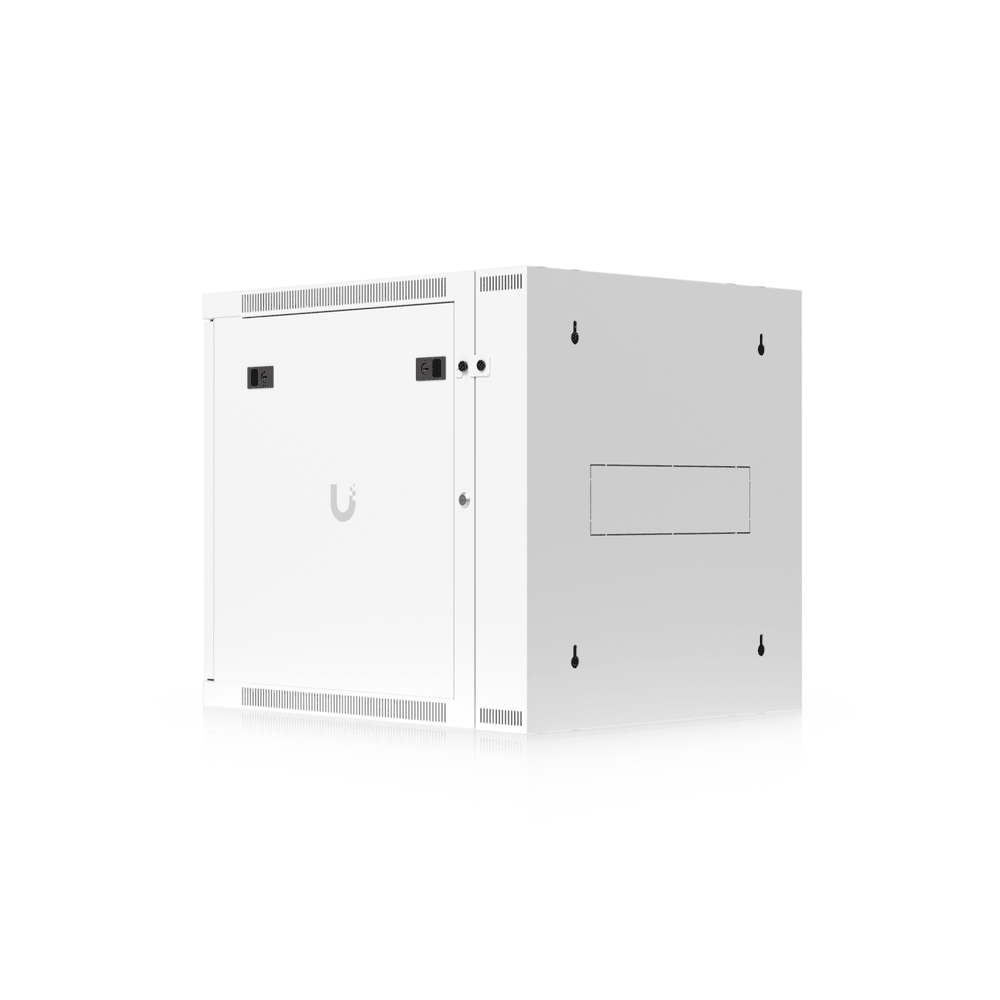

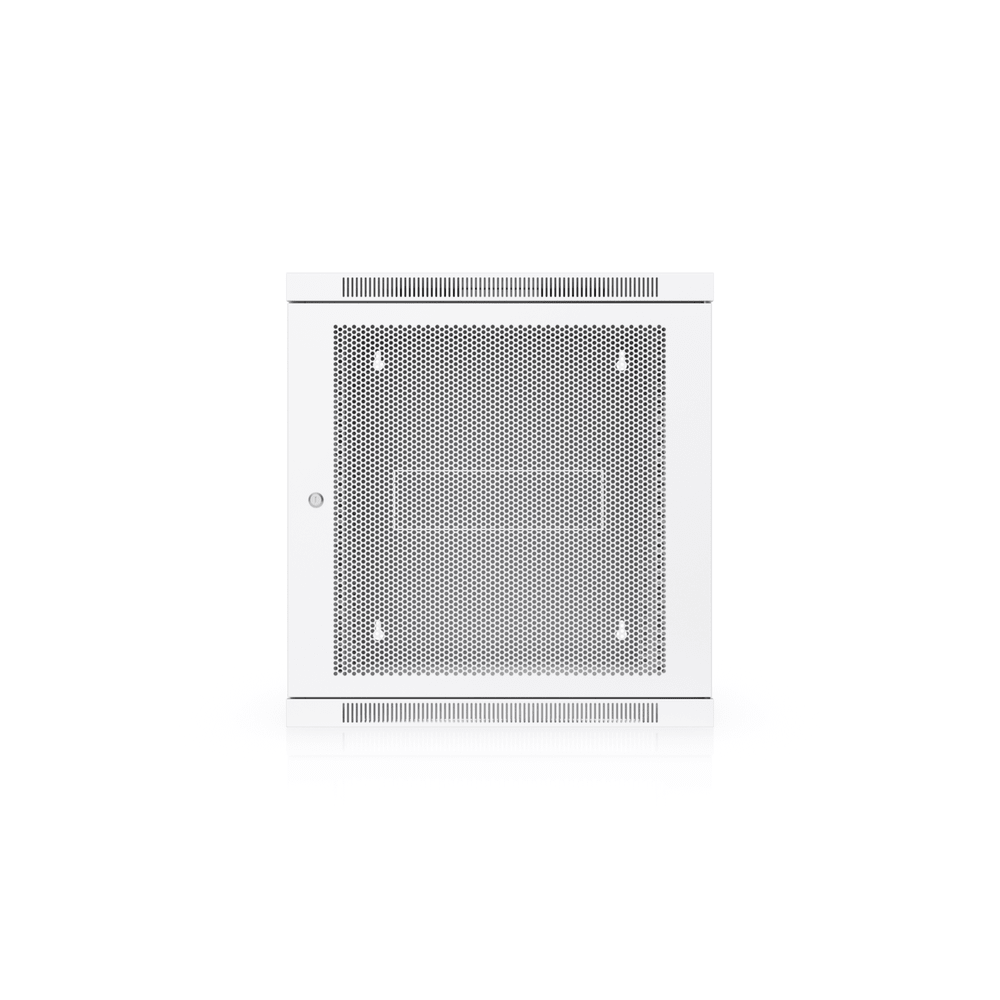

UACC‑Rack‑12U‑Wall‑SW‑P – Ubiquiti 12U Swing Wall‑Mount Rack Cabinet with Perforated Door
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti UACC‑Rack‑12U‑Wall‑SW‑P is a professional 12U swing wall‑mount rack cabinet designed for secure, space‑efficient network installations where airflow and rear access are essential. Constructed from durable SPCC steel with a white powder‑coated finish, this cabinet delivers strength, ventilation and a clean, professional appearance.
Supplied fully assembled, the UACC‑Rack‑12U‑Wall‑SW‑P features a lockable perforated front door combined with a rear swing‑out frame, allowing easy access to cabling and equipment without removing the cabinet from the wall. Integrated cooling fans, removable lockable side panels and adjustable mounting rails simplify installation, maintenance and cable management.
Key Features:
- 12U swing wall‑mount rack cabinet with up to 80 kg load capacity

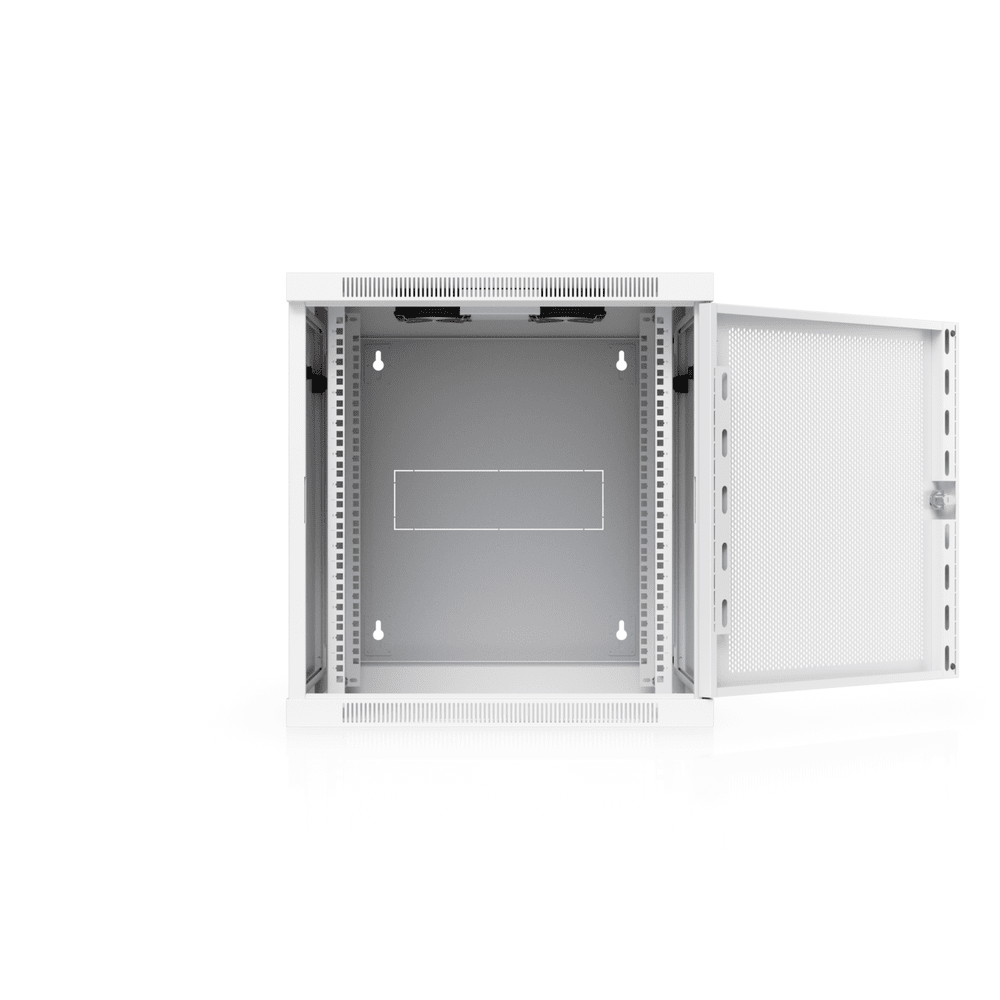

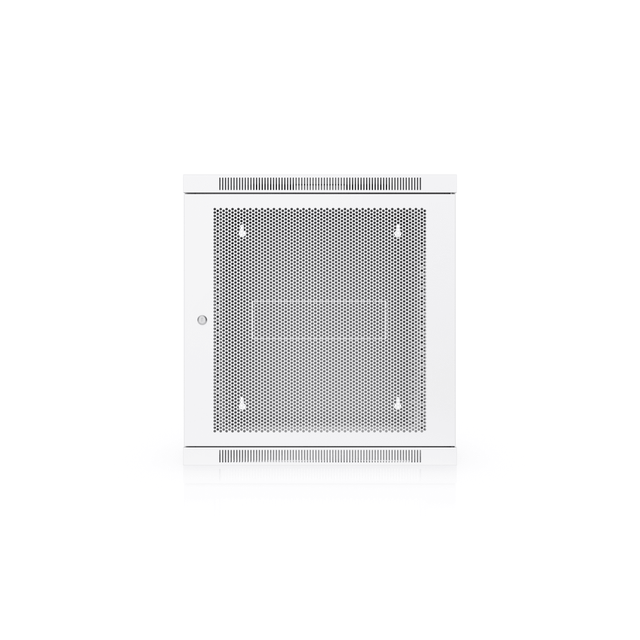

- Perforated front door for enhanced airflow

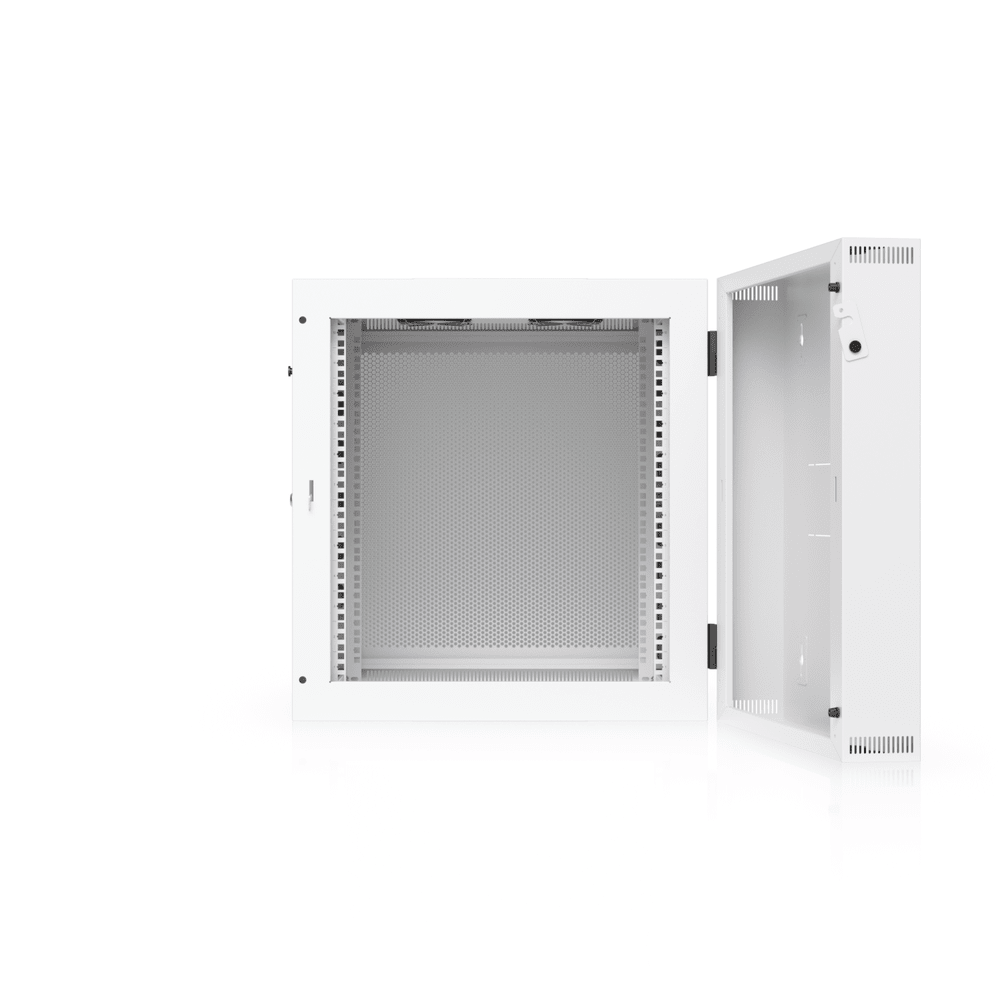

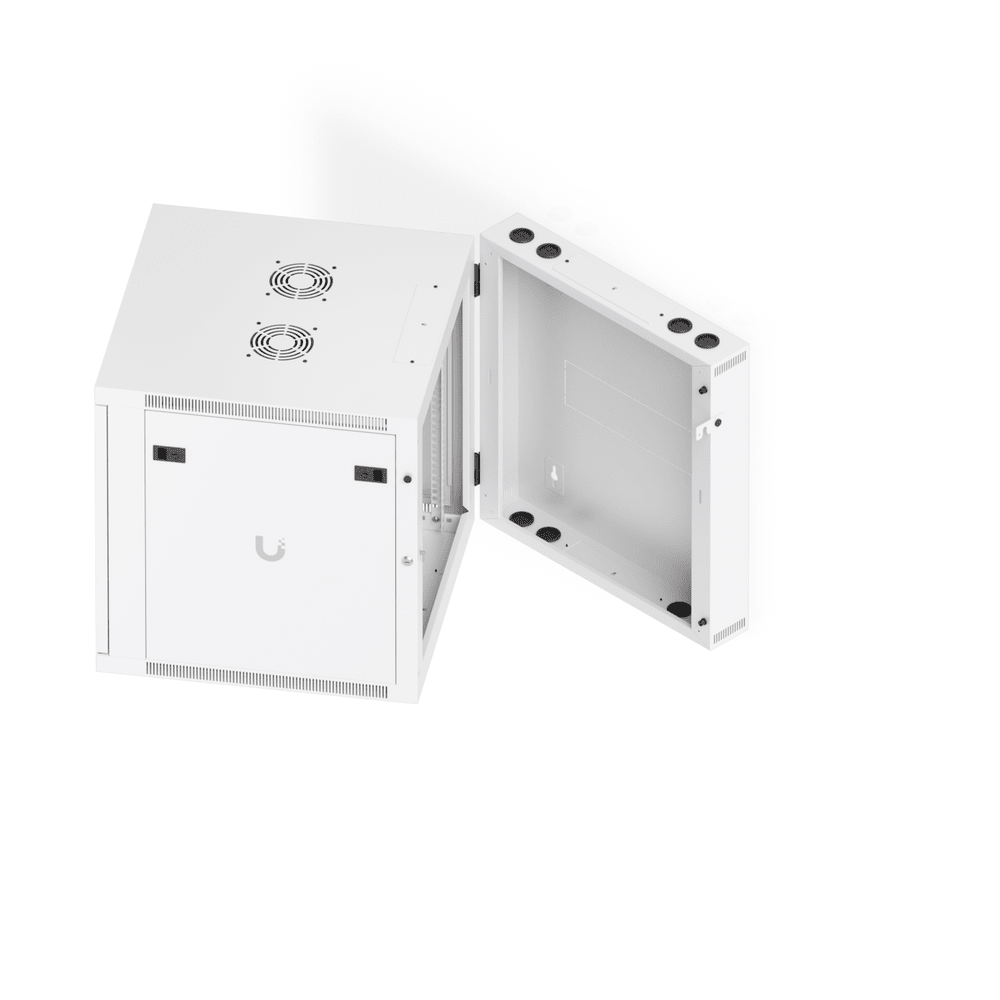

- Rear swing‑out frame for easy rear access

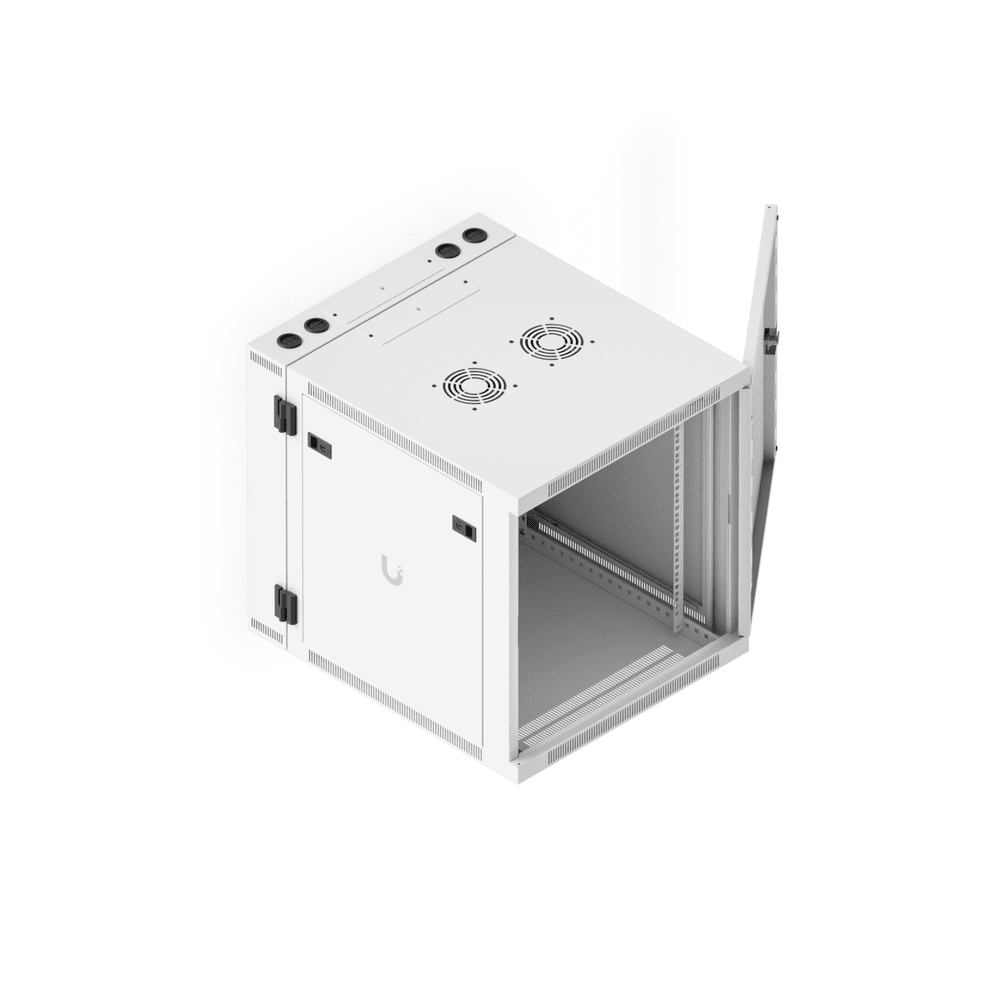

- Integrated fan module with ≤50 dB acoustic noise
- Adjustable mounting depth from 434–559 mm
- Removable and lockable side panels
Ideal for:
Offices, network rooms, retail back‑offices, schools and advanced home labs requiring frequent servicing access and improved ventilation.
Compatible Products:
Ubiquiti UniFi rack‑mount switches
Ubiquiti Cloud Gateways
Ubiquiti NVR and security appliances
Ubiquiti rack shelves and mounting accessories
FAQs:
Is the rack supplied assembled? Yes, it ships fully assembled.
Does it include active cooling? Yes, integrated fans are included.
What device depth is supported? Rack‑mount devices up to 559 mm deep are supported.
Frequently asked questions3 questions
Is the rack supplied assembled?
Does it include active cooling?
What device depth is supported?
Specifications19 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9") / Rack: 600 x 700 x 639 mm (23.6 x 27.6 x 25.2") |
| Weight | Packaging: 31.8 kg (70.1 lb) / Rack: 25.8 kg (56.9 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1.2 mm (0.05") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 12U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 434 mm (17.1") / Max. 559 mm (22") / Adjustable pitch 25 mm (1") |
| Rack Features · Max. Weight Capacity | 80 kg (176 lb) |
| Rack Features · Front Door | Perforated / Default left-hand outswing, reversible |
| Rack Features · Rear Door | Solid / Swing-out |
| Rack Features · Side Panels | (2) Solid, removable and lockable |
| Rack Features · Mounting | Wall mount |
| Rack Features · Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Rack Features · Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") / (2) Top: 235 x 62 mm (9.3 x 2.4") / (4) Top knockout: 35 mm (1.4") / (1) Bottom: 235 x 62 mm (9.3 x 2.4") / (4) Bottom knockout: 35 mm (1.4") |
| Rack Features · Security | (1) Front door lock / (1) Swing out door lock / (4) Side panel locks / (2) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
