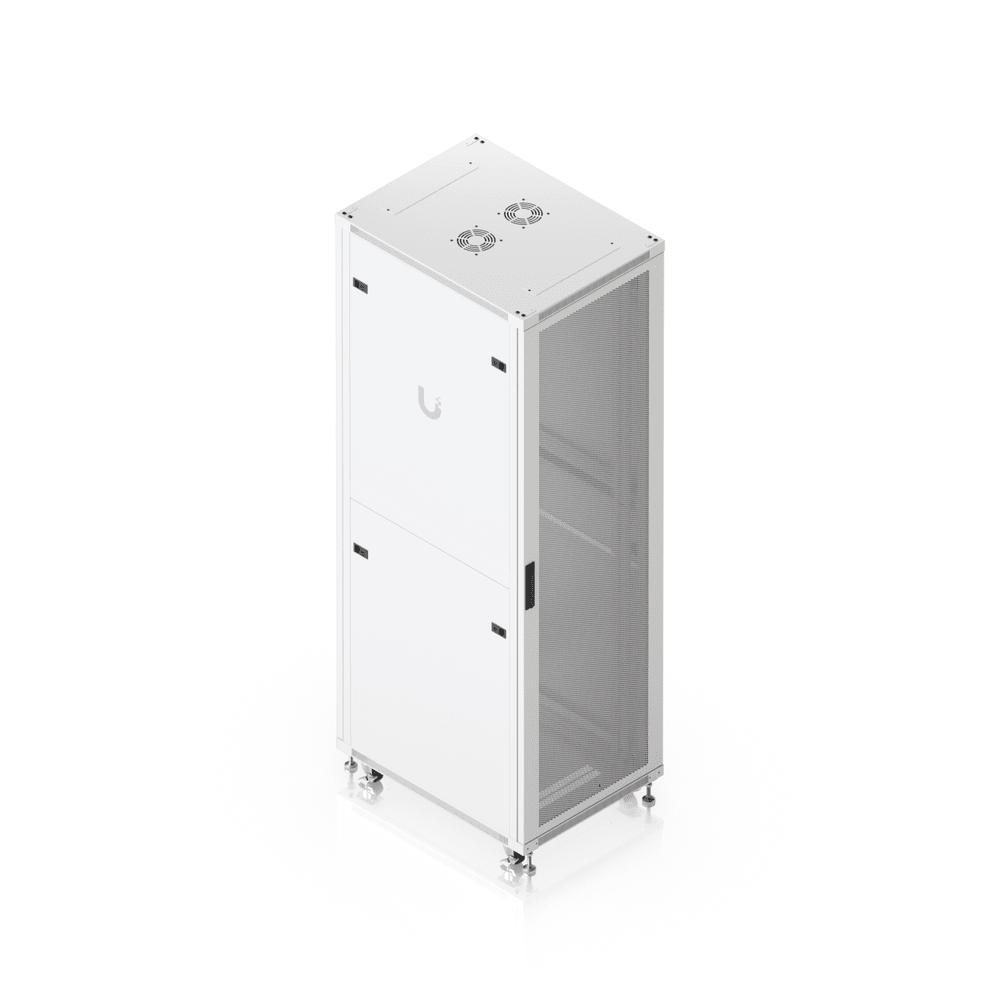

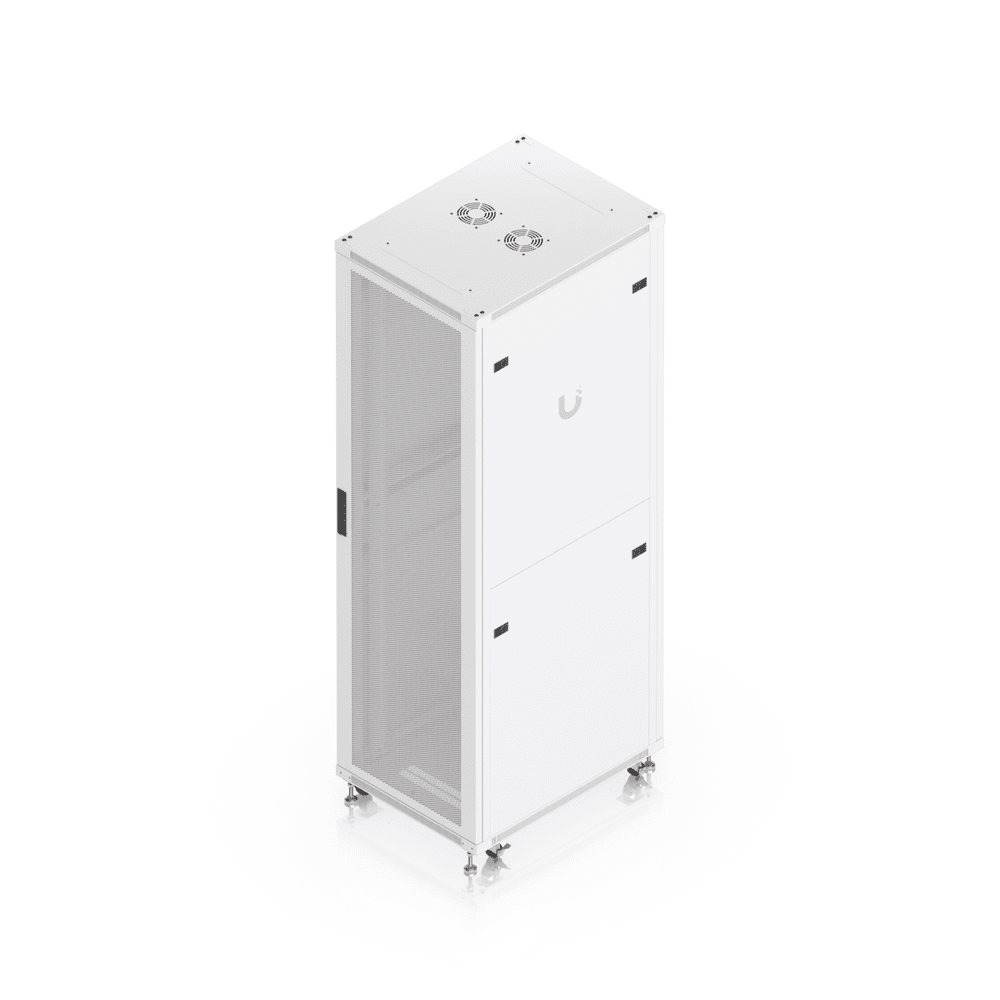

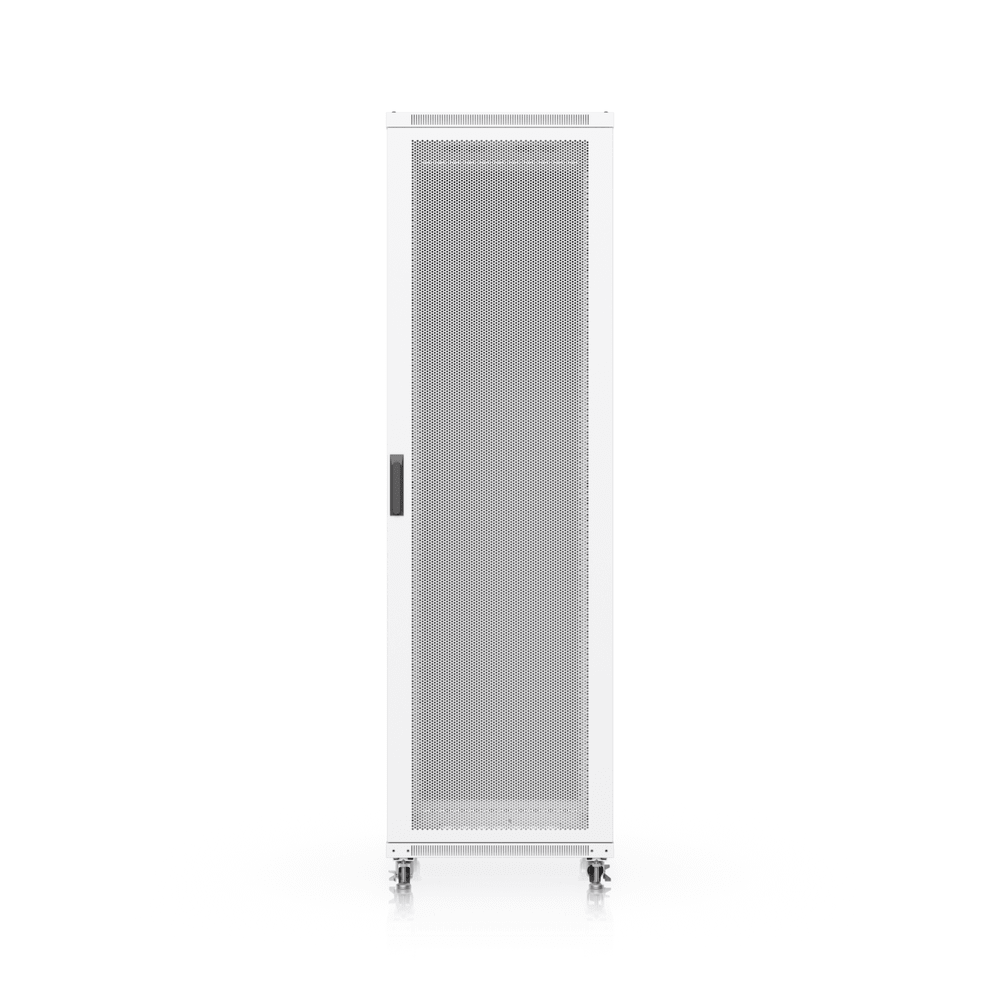

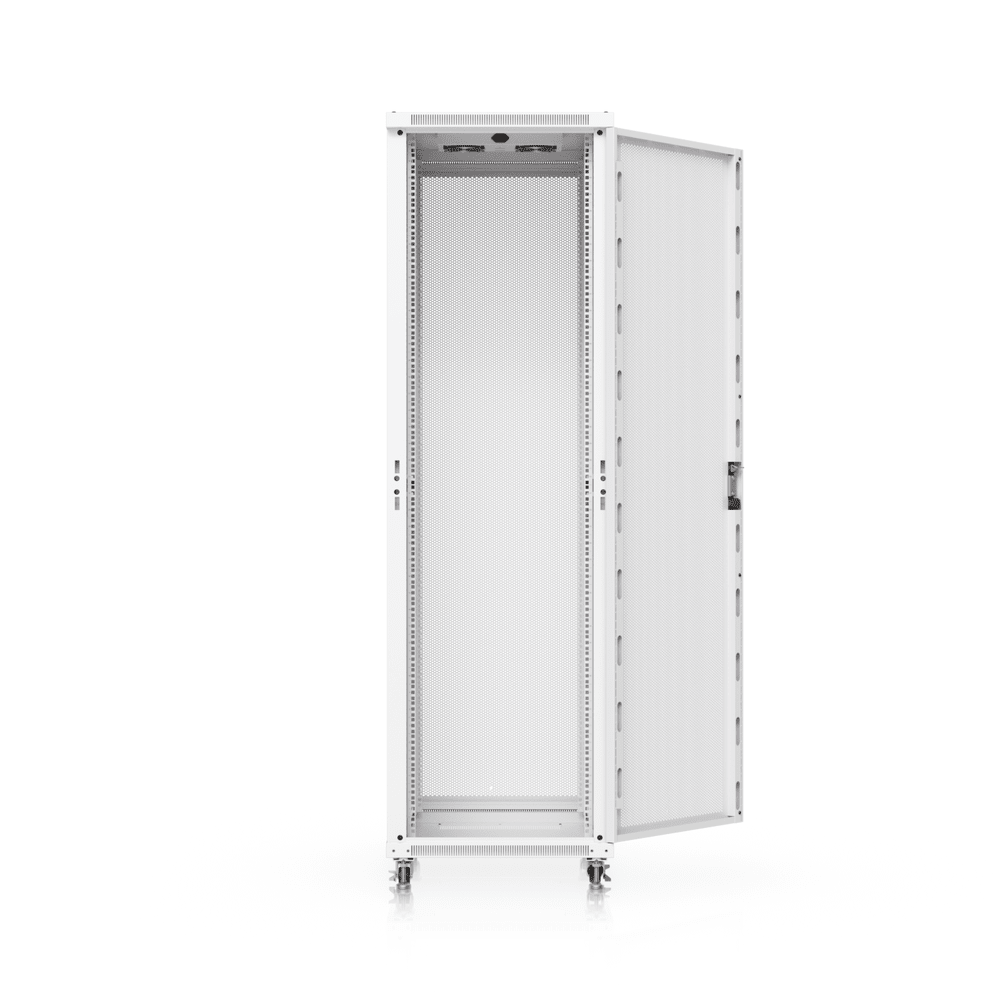

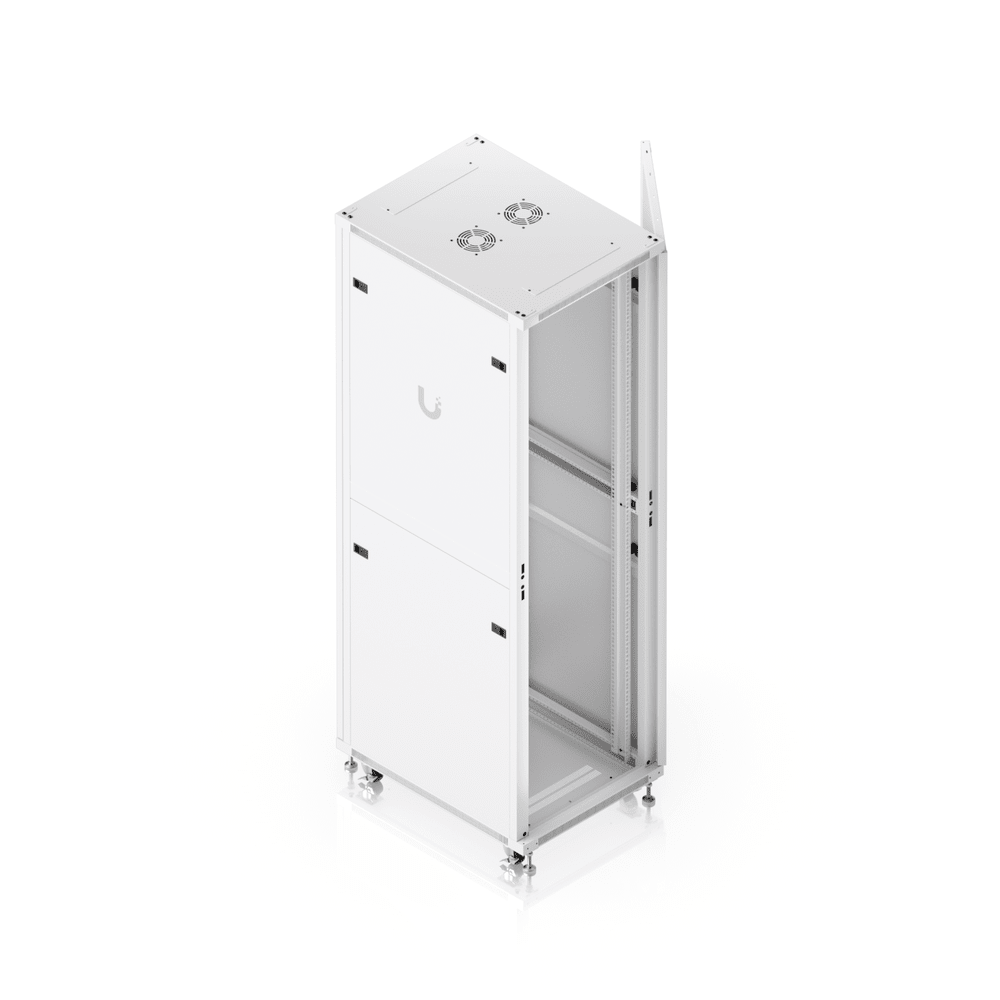

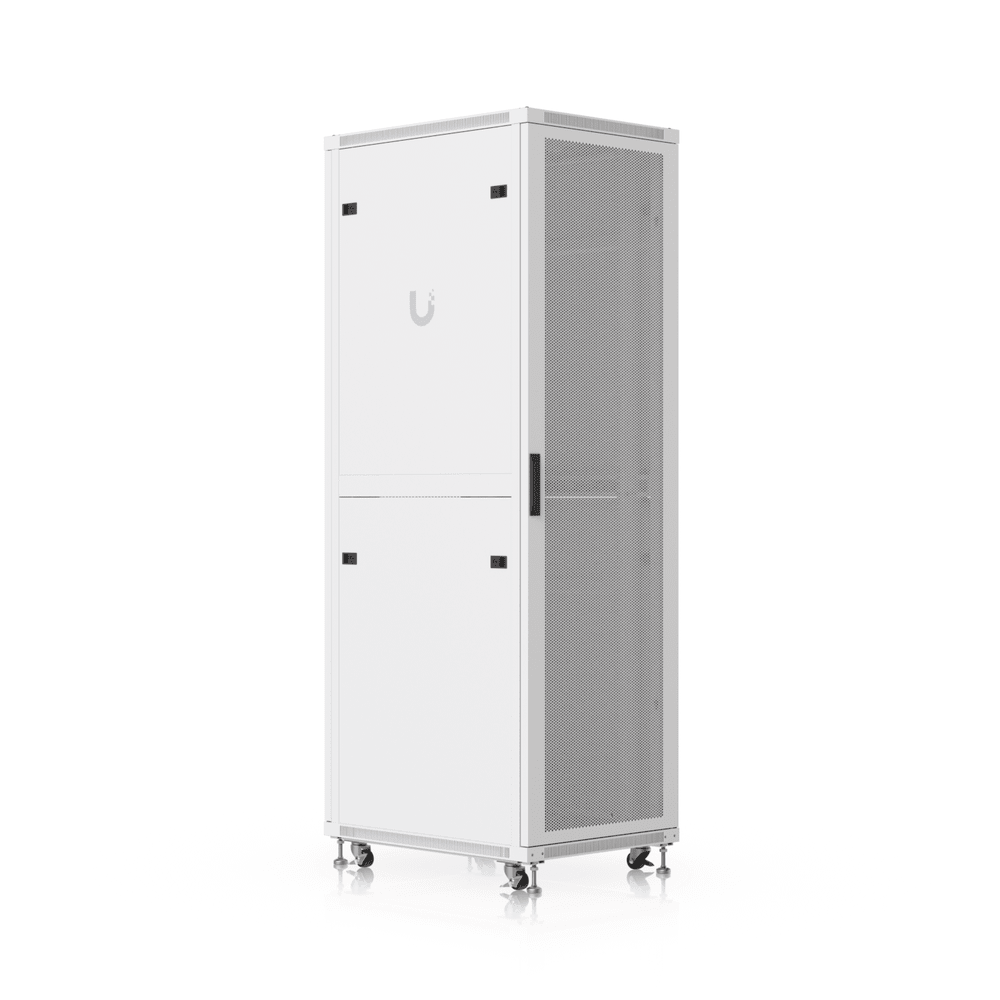

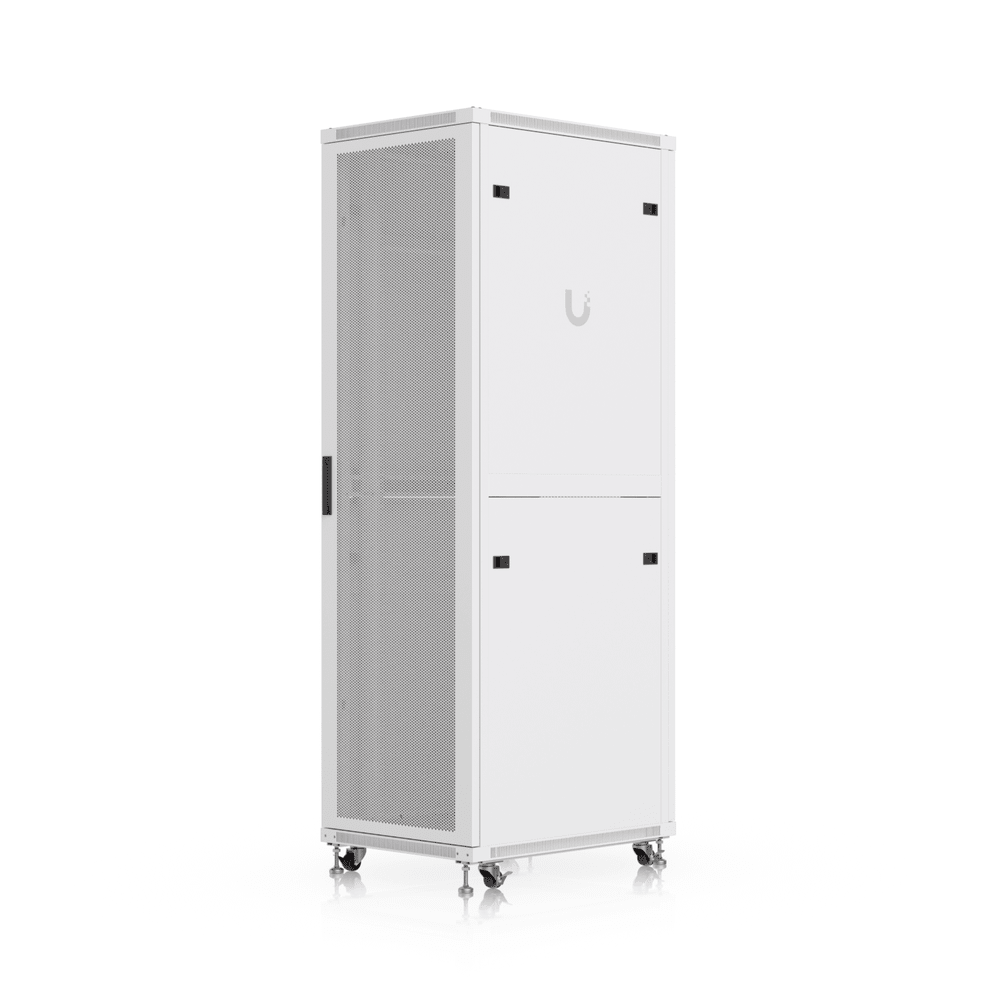

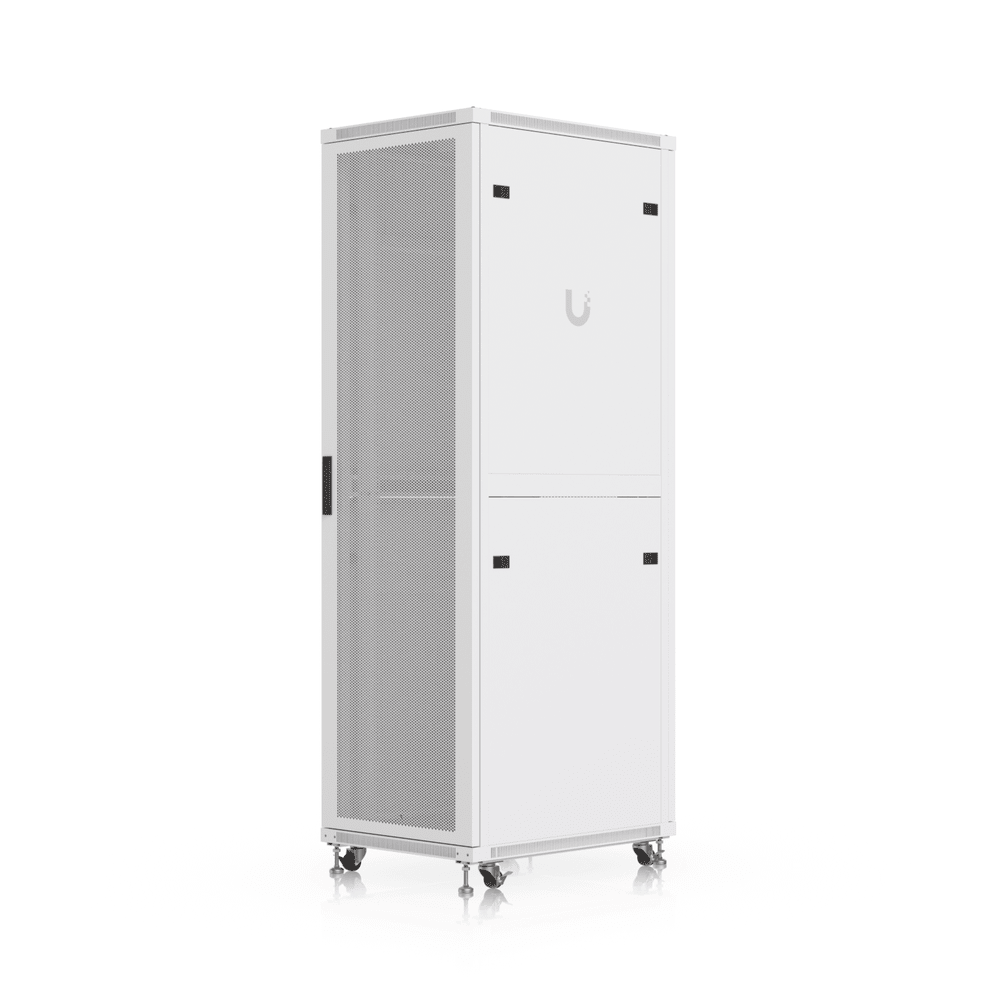

UACC‑Rack‑42U‑800‑P – Ubiquiti 42U Floor‑Standing Rack Cabinet with Perforated Doors
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti UACC‑Rack‑42U‑800‑P is a heavy‑duty 42U floor‑standing rack cabinet designed for enterprise and high‑density network environments where airflow, strength and accessibility are critical. Built from durable SPCC steel and finished in a white powder coat, this cabinet delivers professional‑grade reliability and long‑term durability.
Supplied fully assembled, the UACC‑Rack‑42U‑800‑P features lockable perforated front and rear doors to maximise airflow for high‑performance networking and server equipment. Integrated cooling fan modules, vertical cable management, removable lockable side panels and adjustable mounting rails ensure excellent ventilation, clean cable routing and easy maintenance.
Key Features:
- 42U floor‑standing rack cabinet with up to 800 kg static load capacity
- 800 mm depth supporting rack‑mount devices up to 682 mm deep
- Perforated front and rear doors for superior airflow
- Pre‑installed fan modules for active cooling
- Lockable castors and levelling feet for stability and positioning
- Removable, lockable side panels with vertical cable management
Ideal for:
Enterprise server rooms, data centres, managed service providers and large‑scale UniFi deployments requiring high airflow and heavy‑duty support.
Compatible Products:
Ubiquiti UniFi rack‑mount switches
Ubiquiti Cloud Gateways
Ubiquiti Protect NVR systems
Ubiquiti rack shelves, rails and power management accessories
FAQs:
Is the rack supplied assembled? Yes, it ships fully assembled.
Does it support heavy equipment? Yes, up to 800 kg static and 320 kg rolling load.
Is active cooling included? Yes, integrated fan modules are pre‑installed.
Frequently asked questions3 questions
Is the rack supplied assembled?
Does it support heavy equipment?
Is active cooling included?
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 740 x 965 x 2,223 mm (29.1 x 38 x 87.5") / Rack with caster: 600 x 800 x 2,050 mm (23.6 x 31.5 x 80.7") / Rack without caster: 600 x 800 x 1,966 mm (23.6 x 31.5 x 77.4") |
| Weight | Packaging: 110.4 kg (243.4 lb) / Rack: 84.6 kg (186.5 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1 mm (0.04") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 42U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 607.2 mm (23.9") / Max. 682.2 mm (26.9") / Adjustable pitch 15 mm (0.6") |
| Rack Features · Max. Weight Capacity | Static 800 kg (1764 lb) / Rolling 320 kg (705 lb) |
| Rack Features · Front Door | Perforated / Default left-hand outswing, reversible |
| Rack Features · Rear Door | Perforated / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (4) Solid, removable and lockable |
| Rack Features · Mounting | Floor stand |
| Rack Features · Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Cable Entry Opening | (2) Top: 335 x 52.5 mm (13.2 x 2.1") / (2) Bottom: 335 x 52.5 mm (13.2 x 2.1") |
| Rack Features · Security | (1) Front door lock / (1) Rear door lock / (8) Side panel locks / (3) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
