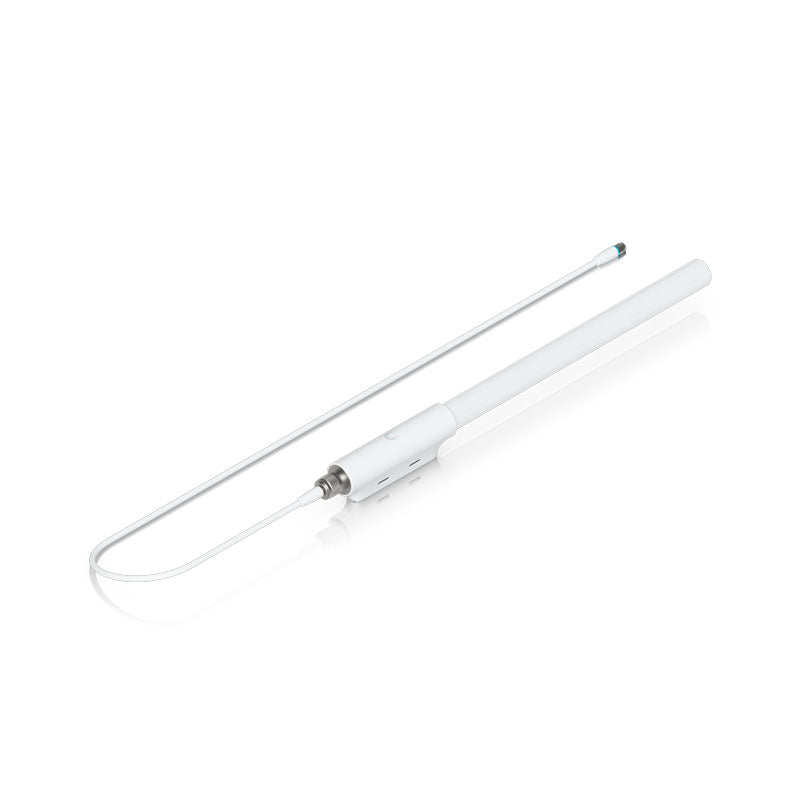

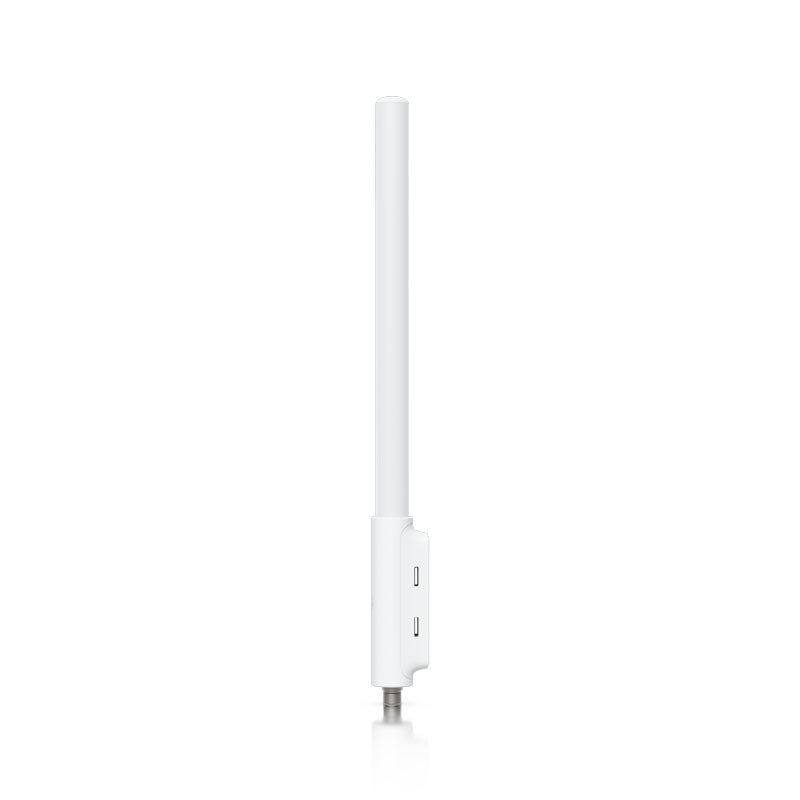

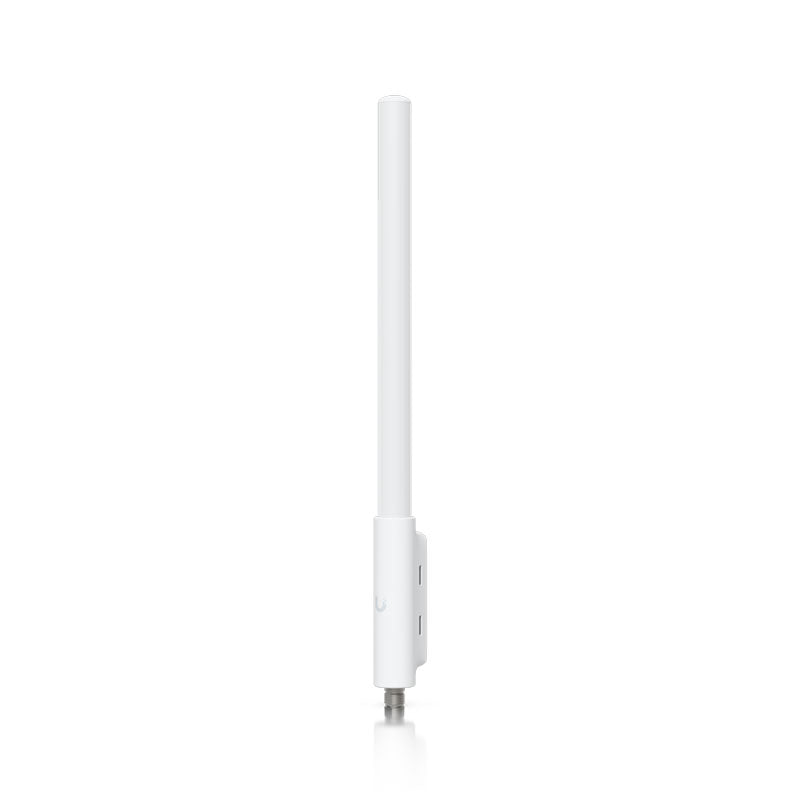

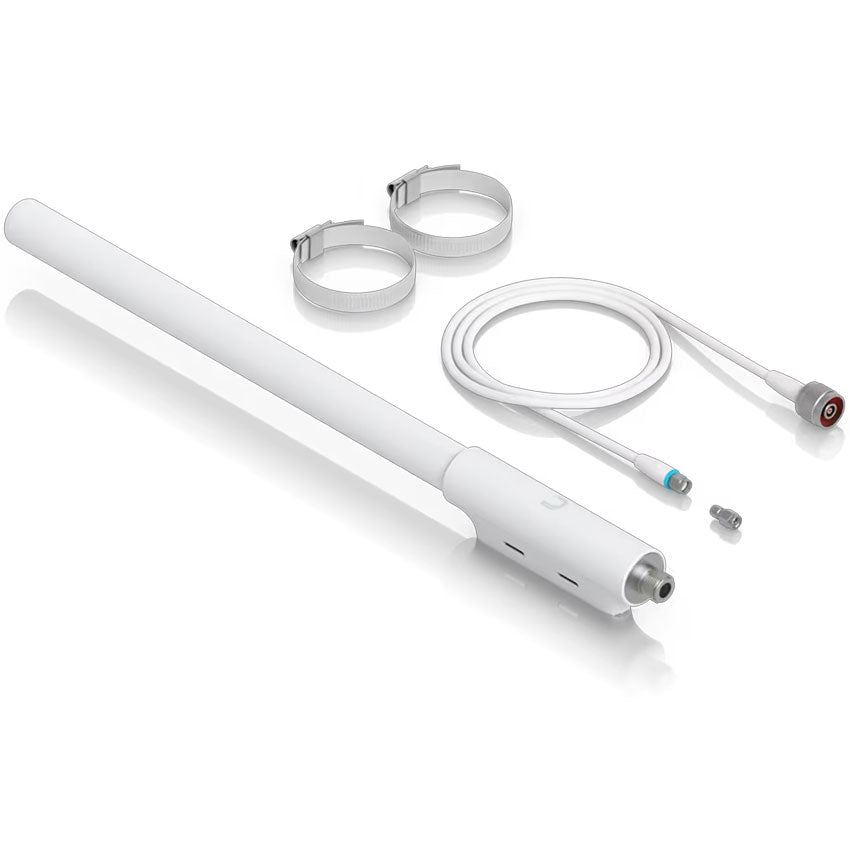

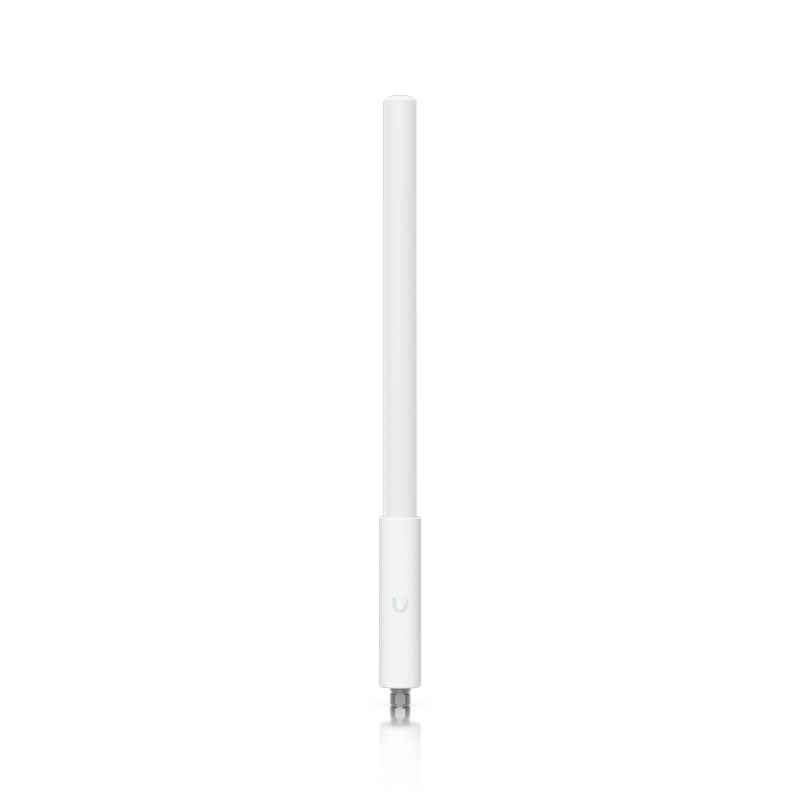

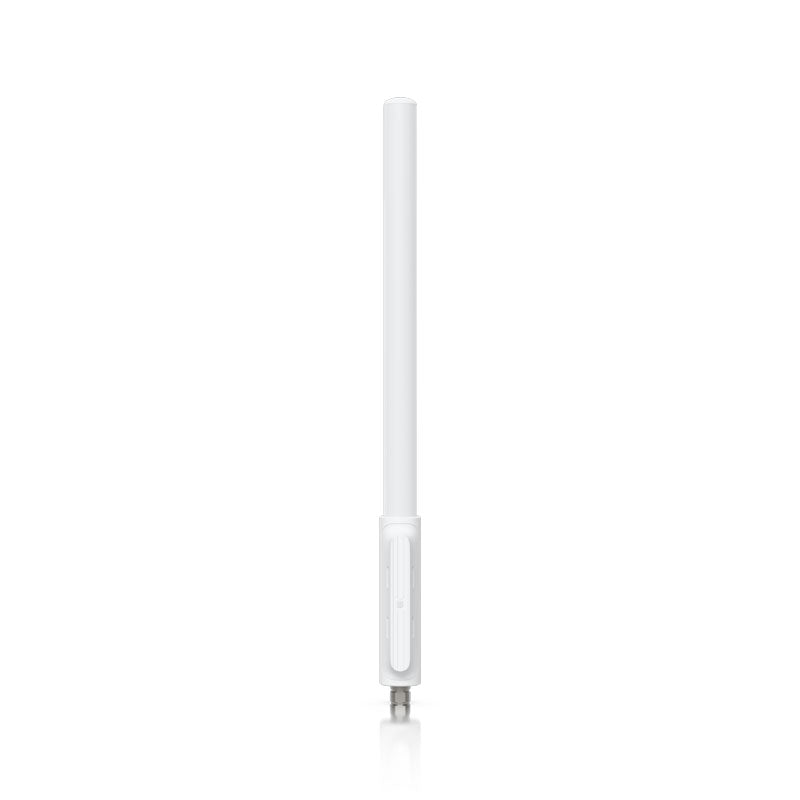

UACC-USL-ANT-HG Ubiquiti UniFi SuperLink High‑Gain Omnidirectional Antenna
Description
Description
The Ubiquiti UACC-USL-ANT-HG is a high‑gain omnidirectional antenna designed to significantly extend the range and reliability of the UniFi SuperLink ecosystem. Built for demanding outdoor environments, this antenna enhances long‑range wireless communication while maintaining stable, low‑latency performance for connected sensors and gateways.
Featuring a 7 dBi SuperLink gain and 4 dBi Bluetooth gain, the UACC-USL-ANT-HG enables line‑of‑sight SuperLink distances of up to 5 km, making it ideal for wide‑area deployments. Its IP67‑rated weatherproof enclosure ensures dependable operation in harsh conditions, including extreme temperatures, heavy rain, and strong winds.
Designed for seamless integration with UniFi Protect and SuperLink Gateways, this antenna uses a robust pole‑mount design with stainless‑steel hardware, delivering long‑term durability and consistent performance in outdoor installations.
Key Features:
- 7 dBi high‑gain SuperLink antenna for extended long‑range coverage
- Omnidirectional design for broad and consistent signal distribution
- IP67 outdoor‑rated enclosure for all‑weather reliability
- Up to 5 km SuperLink range in line‑of‑sight conditions
- Supports Bluetooth and SuperLink frequencies

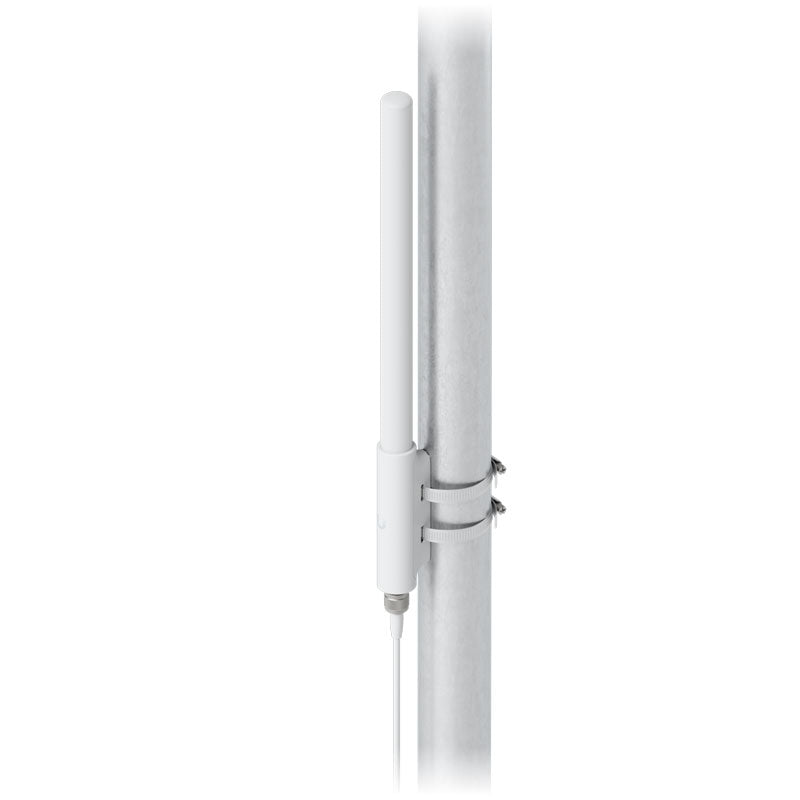

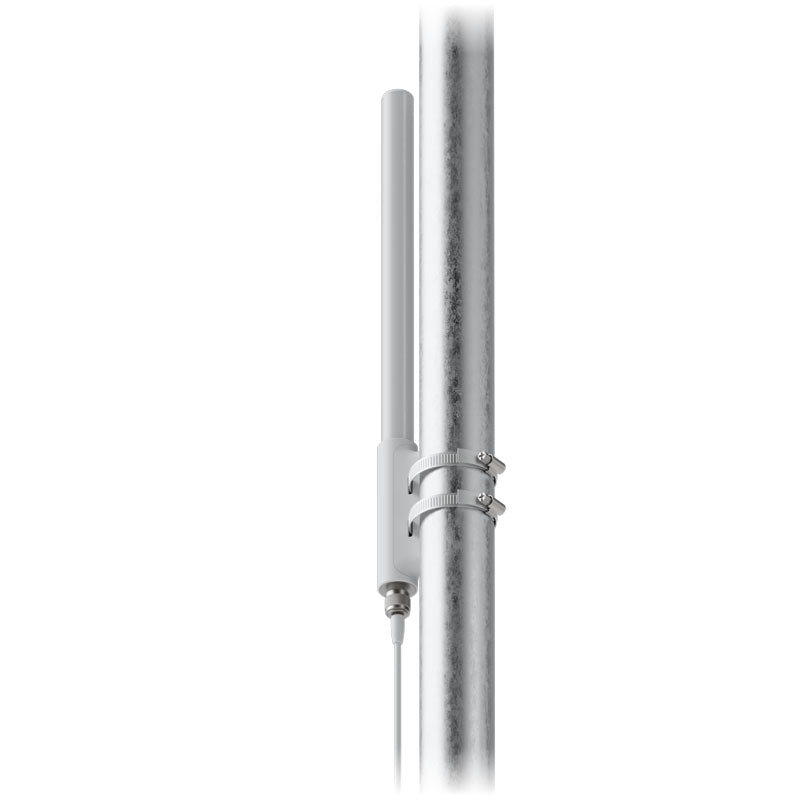

- Durable pole‑mount installation with stainless‑steel brackets
Ideal For:
Enterprise campuses, industrial sites, outdoor security deployments, smart infrastructure projects, and any UniFi Protect installation requiring extended SuperLink wireless coverage.
Compatible Products:
UniFi SuperLink Gateway (USL‑Gateway)
UniFi SuperLink G2 Gateway (USL‑G2‑Gateway‑HA)
Frequently asked questions3 questions
Is the UACC-USL-ANT-HG suitable for outdoor use?
What range can I expect?
Does it work with Bluetooth?
Specifications21 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | Device: 468.9 x 31.8 x 44.1 mm / (18.5 x 1.3 x 1.7") / With cable: 1458.4 x 31.8 x 44.1 mm / (57.4 x 1.3 x 1.7") / Cable: ⌀5.2 x 1000 mm / (⌀0.2 x 39.4") |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| UniFi Application Suite | Protect |
| Performance | |
| Operating Frequency · US | 860–930 MHz |
| Operating Frequency · EU | 860–930 MHz |
| Operating Frequency · Bluetooth | 2400–2480 MHz |
| Antenna Gain · Bluetooth | 4 dBi |
| Antenna Gain · SuperLink | 7 dBi |
| Max. Range · Bluetooth | Up to 100 m (328 ft) |
| Max. Range · SuperLink | 5 km (3.1 mi) |
| Hardware | |
| Weight | Device: 275 g (9.7 oz) / Cable: 65 g (2.3 oz) |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Antenna Connector | (1) RP-N Female |
| Antenna Cable | (1) RP-SMA Male / (1) RP-N Male |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
