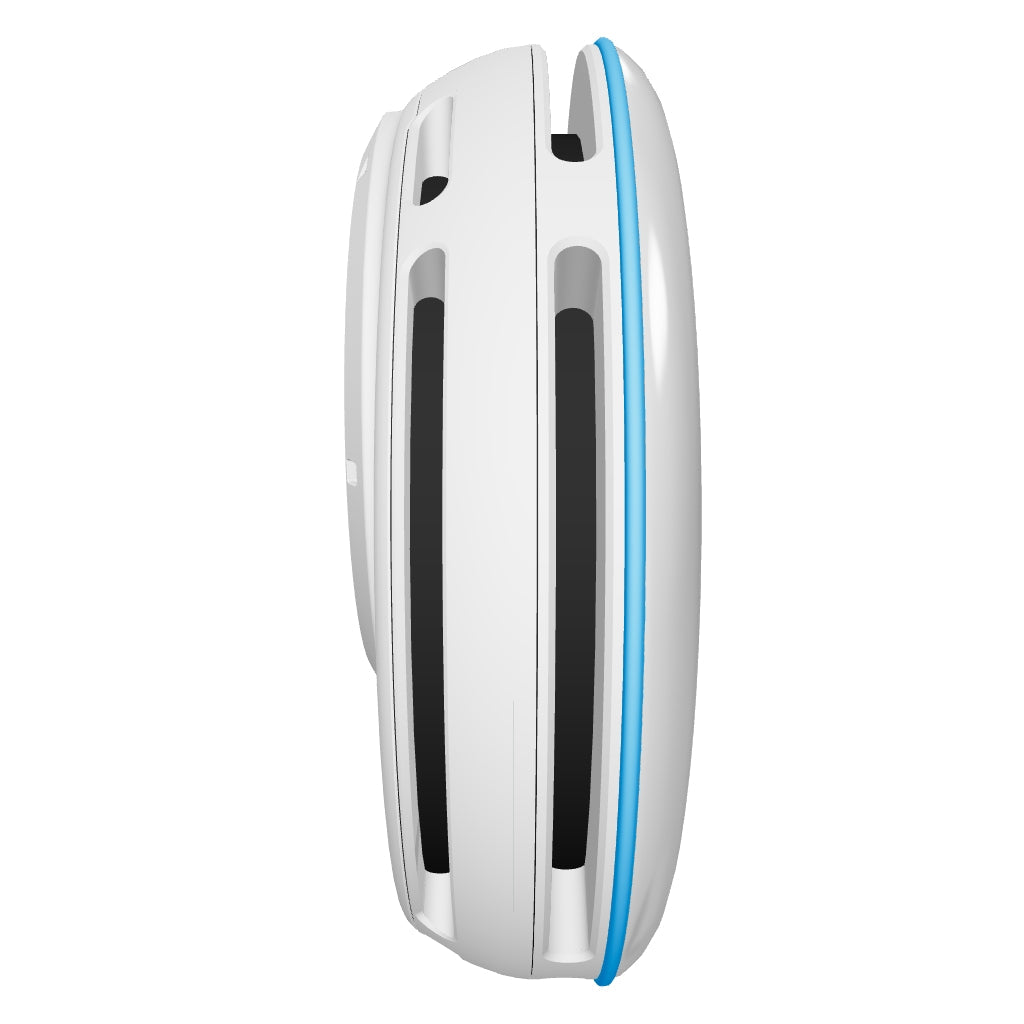

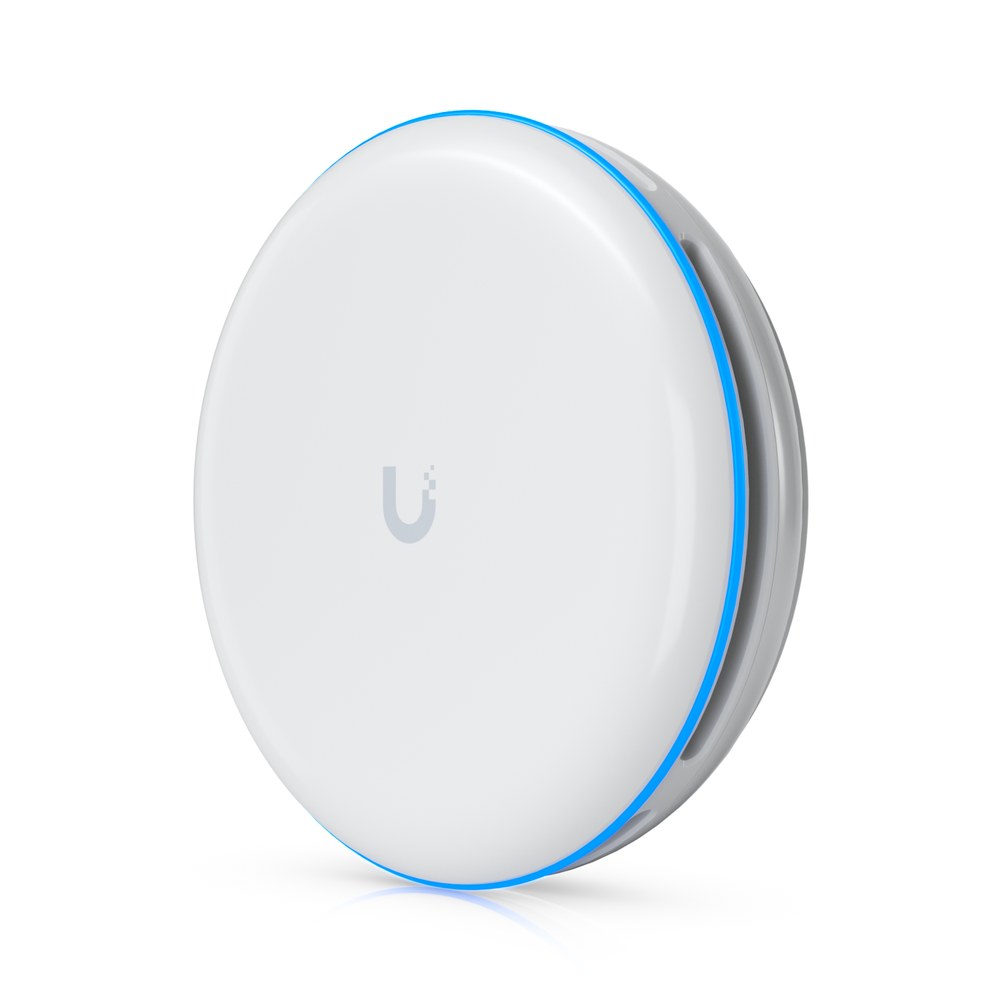

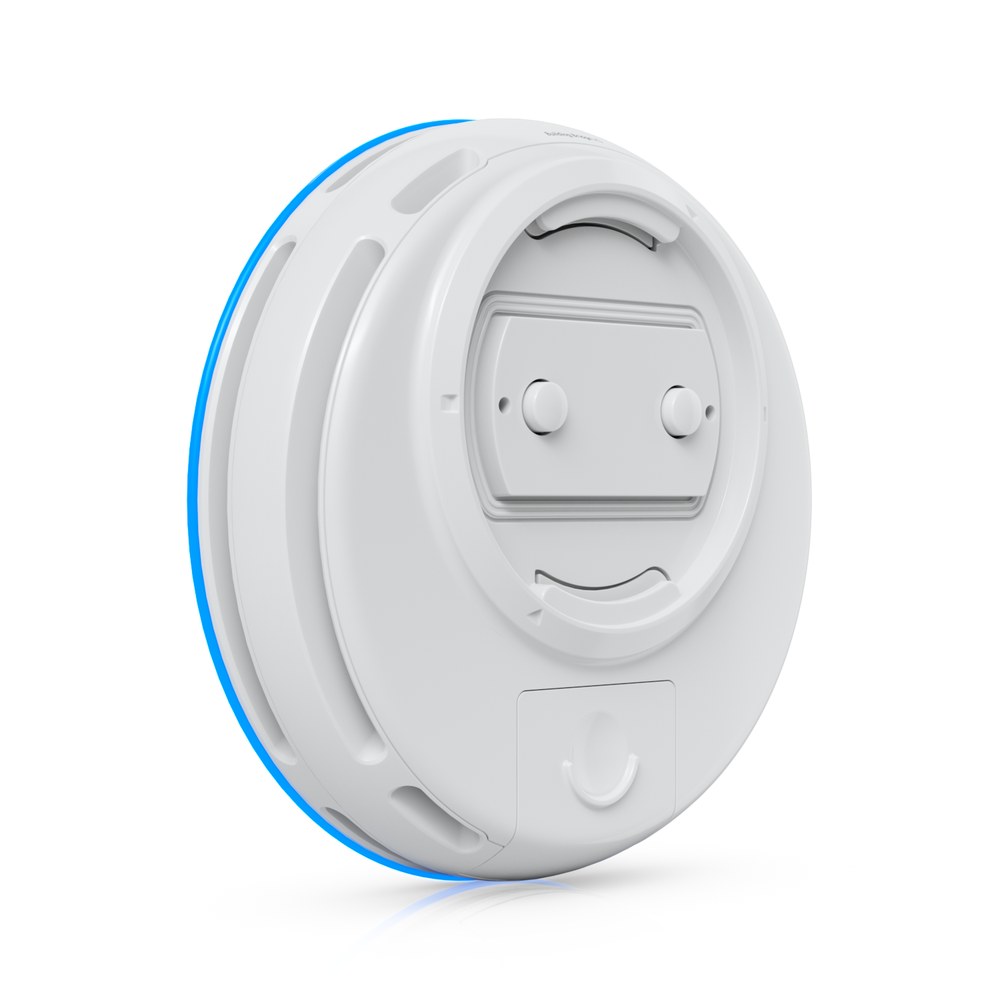

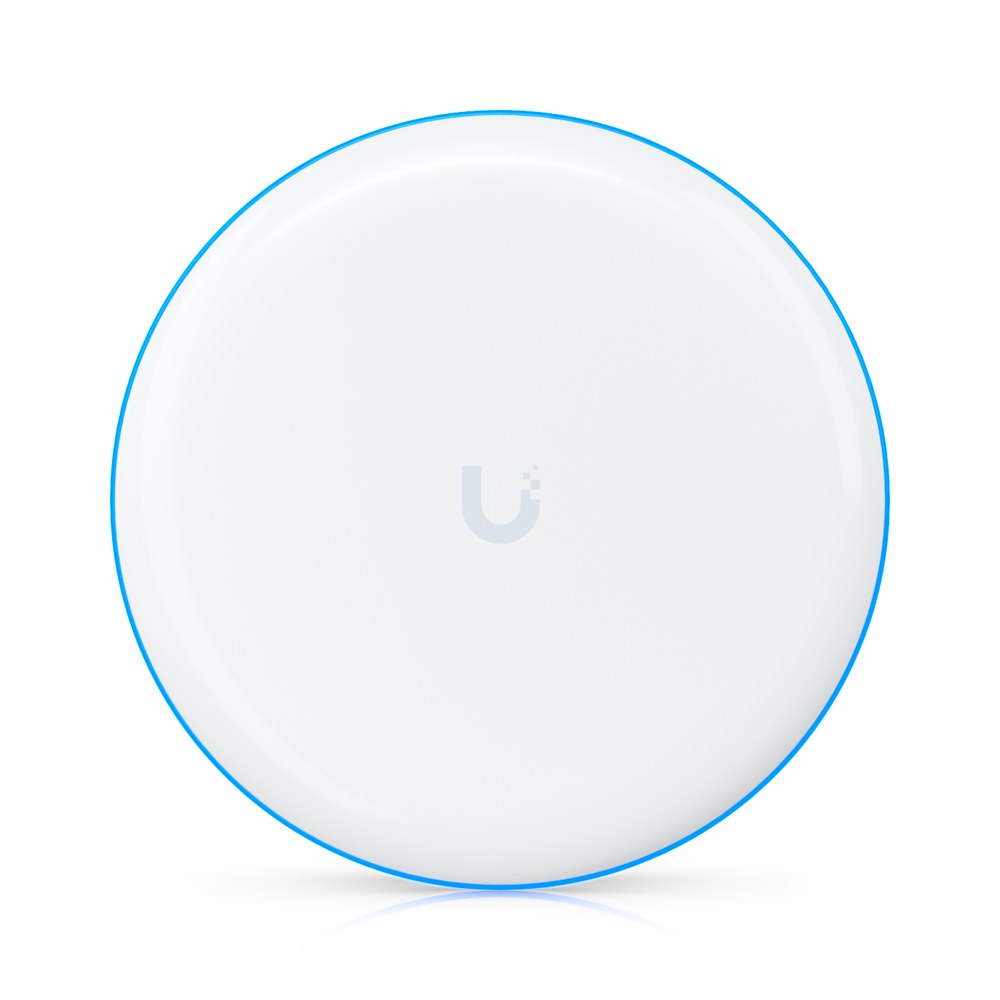

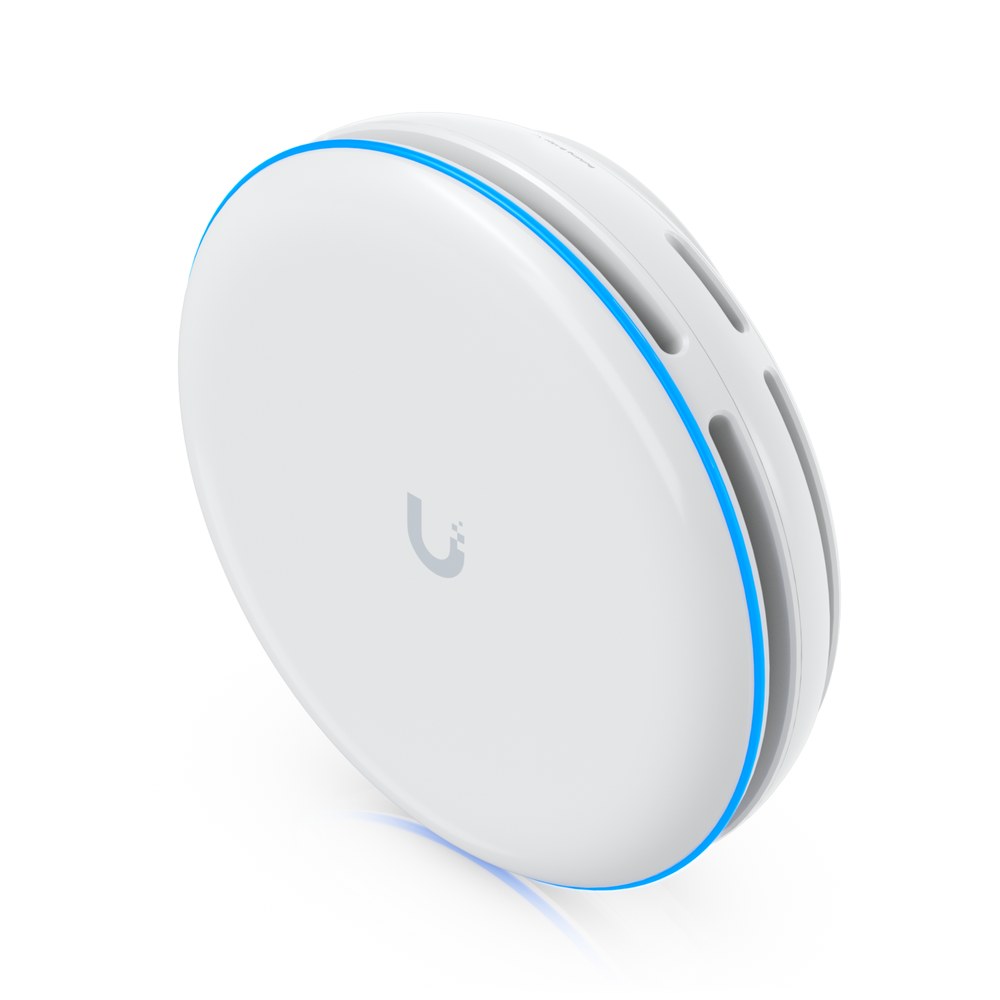

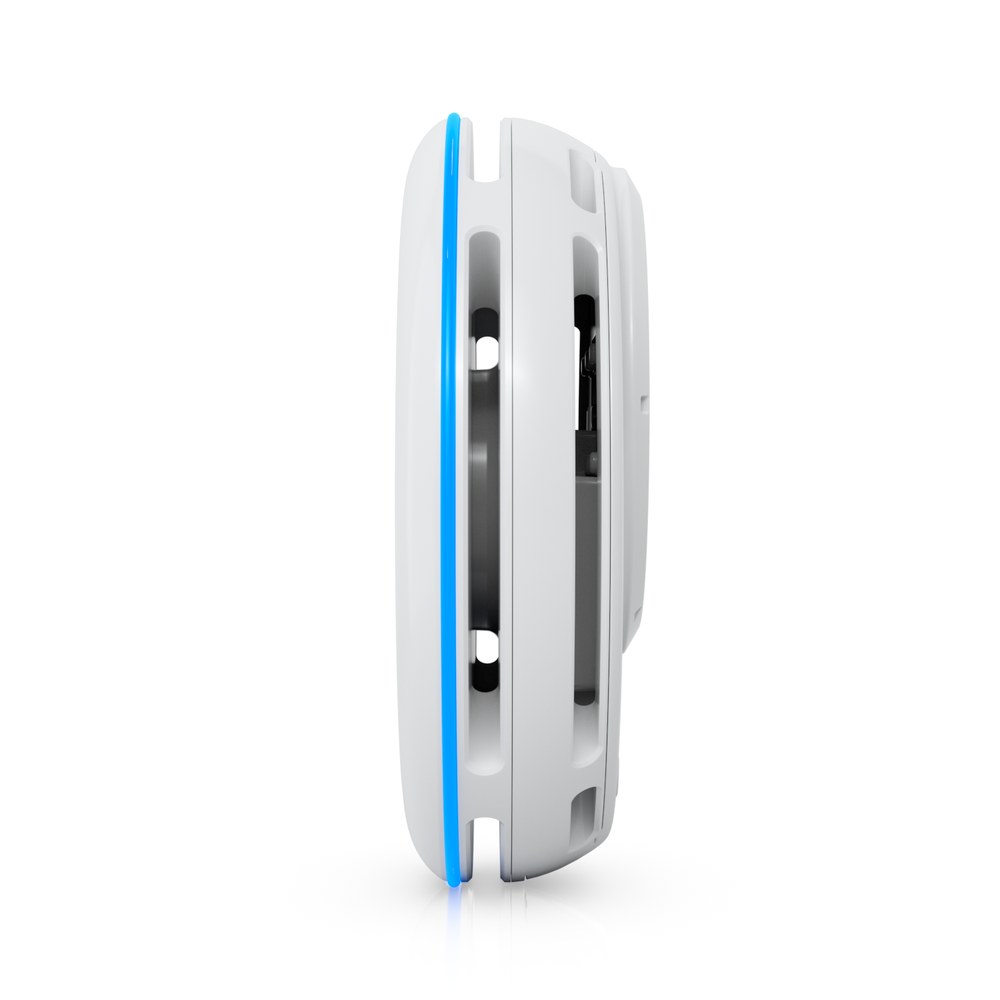

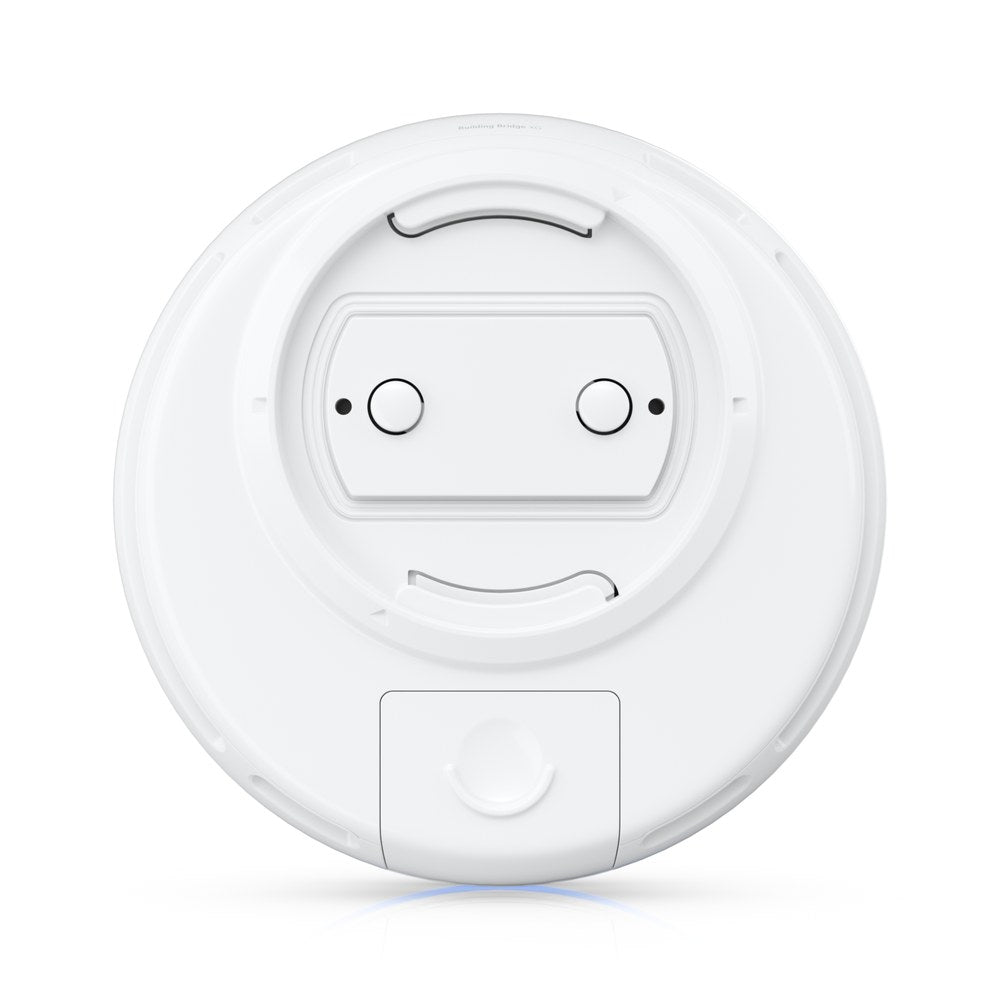

UBB-XG-Single - Ubiquiti Building Bridge XG 60 GHz Wireless Point-To-Point Bridge
Description
Description

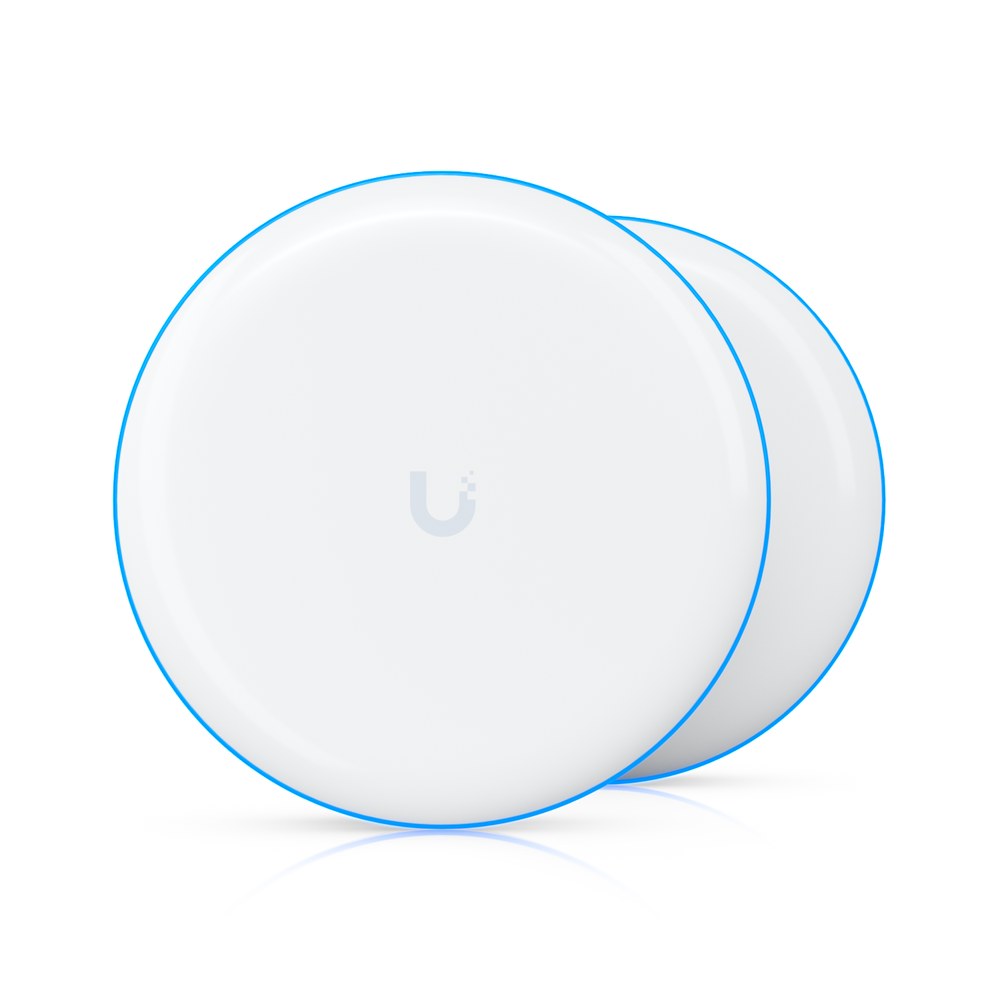

The Ubiquiti Building Bridge XG (UBB-XG-Single) is a high-performance 60 GHz wireless point-to-point bridge designed to deliver maximum performance with a 10G SFP+ uplink and a 5 GHz backup radio for reliable connectivity. With a coverage area of up to 500 m (1,640 ft), this WiFi 5 bridge is ideal for connecting buildings wirelessly with multi-gigabit speeds and dual-radio redundancy to ensure uninterrupted network performance.
Engineered for professional installations, the UBB-XG-Single features (1) GbE RJ45 port and (1) 1/10G SFP+ port, allowing seamless integration into high-capacity networks. The 60 GHz radio delivers data rates up to 6 Gbps, while the 5 GHz backup radio provides up to 866.6 Mbps, ensuring your connection remains stable even in challenging conditions. The device is IPX6 weatherproof and supports both wall and pole mounting, making it suitable for a wide range of outdoor deployment scenarios.
The single unit is ideal for replacement or spare and includes (1) PoE power adapter. Powered using PoE++ (48V, 0.65A) with a maximum power consumption of 31.2W, the UBB-XG integrates effortlessly into your existing UniFi ecosystem. The device is managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Key Features:
- 60 GHz point-to-point bridge with up to 6 Gbps throughput
- 10G SFP+ uplink for maximum performance and scalability
- 5 GHz backup radio (866.6 Mbps) for failover redundancy
- WiFi 5 (802.11ac) with 2×2 DL MU-MIMO
- 500 m (1,640 ft) coverage area

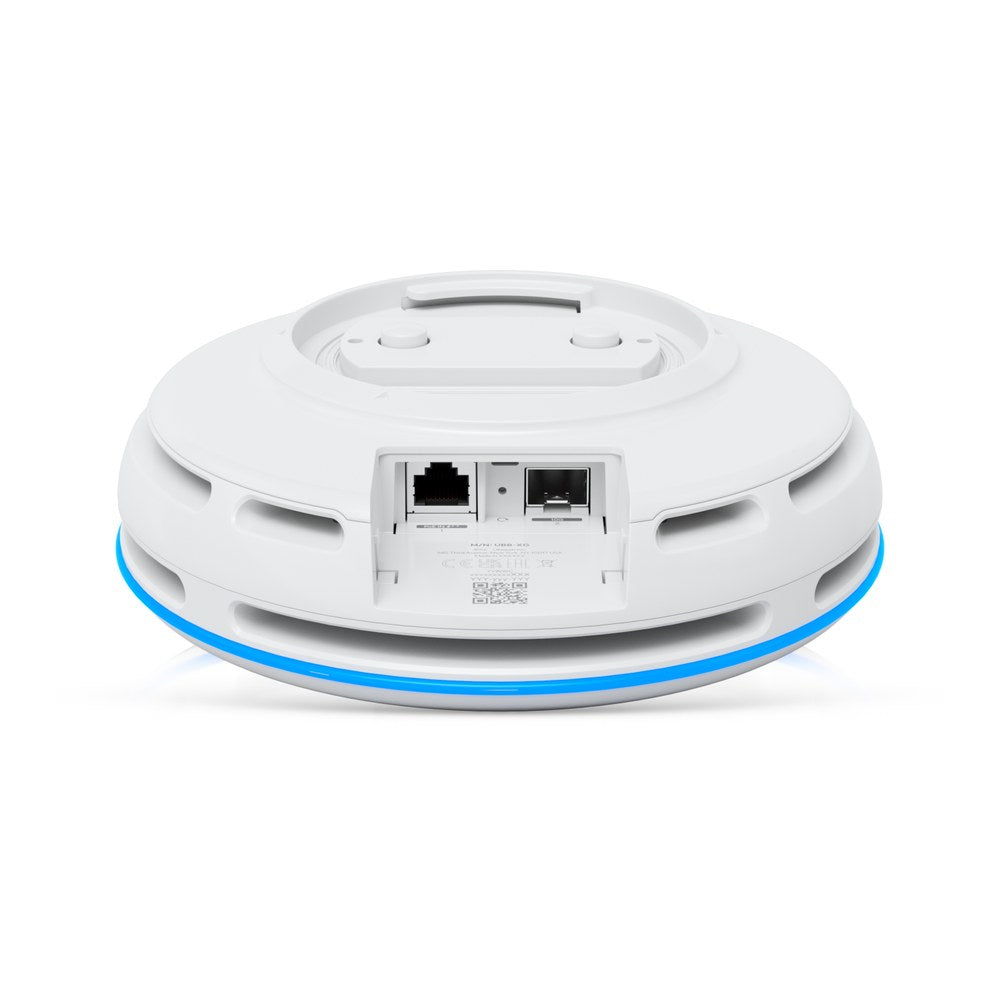

- (1) GbE RJ45 port and (1) 1/10G SFP+ port
- 60 GHz antenna gain: 21 dBi; 5 GHz antenna gain: 14 dBi
- IPX6 weatherproof rating
- Built-in LED alignment indicators (R/G/B)
- PoE++ power support (48VDC ±10%)
- 60G precision alignment pole mount included
- Managed via UniFi Network application
Ideal for: Businesses, educational institutions, and service providers requiring high-speed, reliable building-to-building wireless connectivity with 10 Gbps uplink capability and redundant radio backup for mission-critical applications.
Compatible Products
UniFi Switches: Pair the UBB-XG-Single with UniFi PoE++ switches or use the included PoE adapter. The 10G SFP+ port is ideal for connecting to switches with SFP+ uplinks such as the Switch Flex XG or Pro XG series for maximum throughput.
UniFi Consoles: The Building Bridge XG requires management through a UniFi Console (such as Dream Machine Pro, Cloud Gateway Ultra), Official UniFi Hosting, or a Self-Hosted UniFi Network Server for configuration and monitoring.
Mounting Accessories: The 60 GHz Precision Alignment Mount offers enhanced alignment and mounting flexibility for optimal performance in point-to-point installations.
Specifications37 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | ⌀191.8 x 59 mm / (⌀7.6 x 2.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 500 m (1,640 ft) |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE++ / Passive PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 60 GHz | 6 Gbps |
| Max. Data Rate · 5 GHz | 866.6 Mbps (BW80) |
| Antenna Gain · 60 GHz | 21 dBi |
| Antenna Gain · 5 GHz | 14 dBi |
| Antenna Gain · 2.4 GHz | 2 dBi (BLE) |
| Max. TX Power · 60 GHz | 16 dBm |
| Max. TX Power · 5 GHz | 23 dBm |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 48V DC ± 10% |
| Networking Interface | (1) GbE RJ45 port / (1) 1/10G SFP+ port |
| Weight | Device: 1.7 kg (3.8 lb) / With mount: 2.9 kg (6.3 lb) |
| Operating Modes | PtP |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet / Bluetooth |
| Channel Bandwidth | Main radio (60 GHz): 2160/4320 MHz / Backup radio (5 GHz): VHT 20/40/80 MHz |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory reset |
| LEDs · System | R/G/B |
| Operating Frequency | Main radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz |
| Bluetooth (MHz) | Worldwide: 2400 - 2483.5 MHz |
| Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Terragraph |
