Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-PRO-48-POE

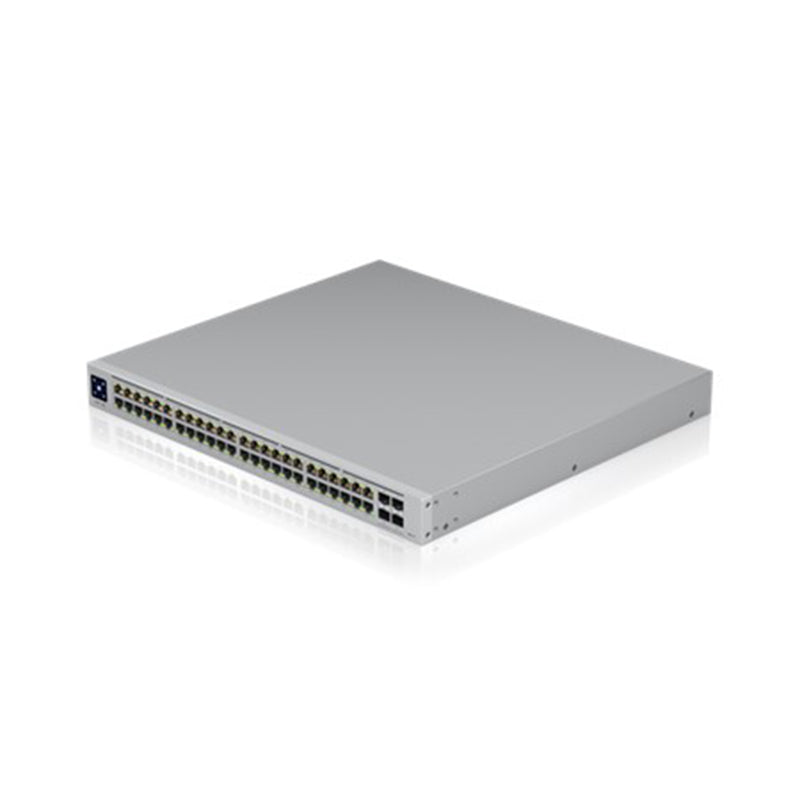

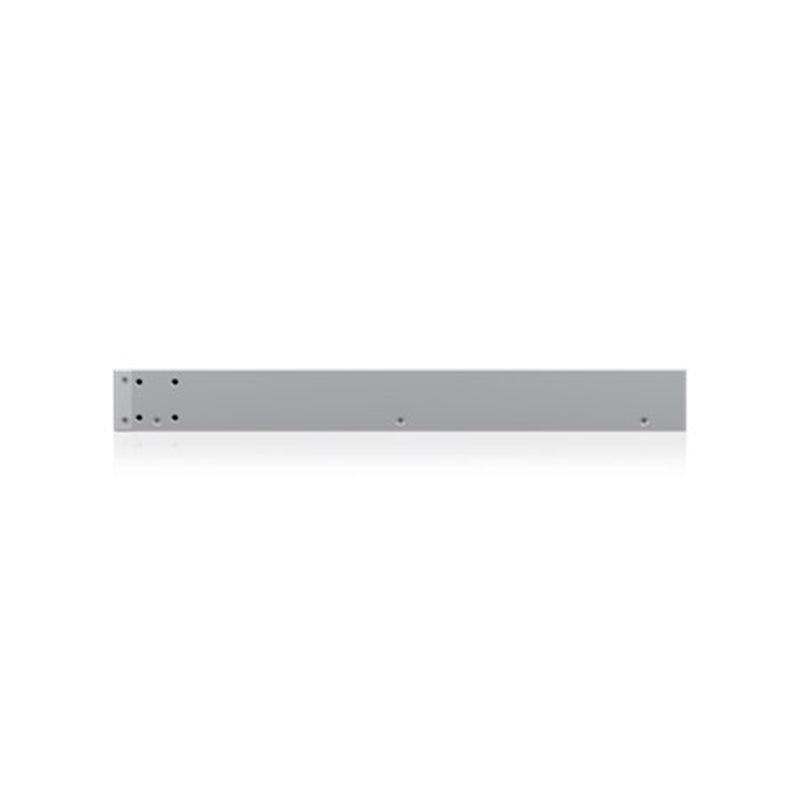

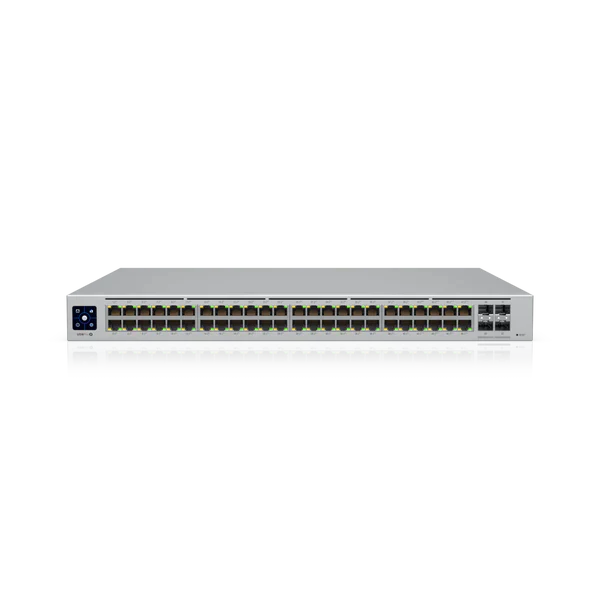

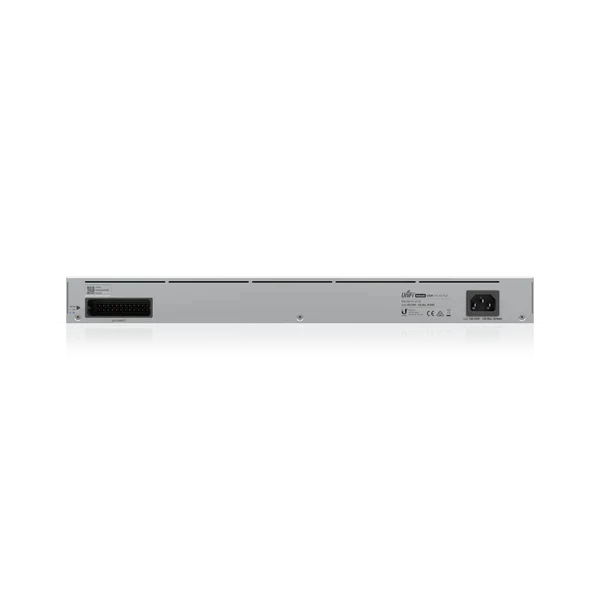

USW-Pro-48-PoE Ubiquiti UniFi Switch Pro 48 PoE
$2,185.69 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 3, PoE switch with (48) GbE RJ45 ports, including (40) PoE+ ports and (8) PoE++ ports, and (4) 10G SFP+ ports.
The Switch Pro 48 PoE (USW Pro 48 PoE) is a fully managed switch with (40) GbE, PoE+ RJ45 ports, (8) GbE, PoE++ RJ45 ports, and (4) 10G SFP+ ports. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server.
The USW Pro 48 PoE is the ideal access layer switch for any UniFi system. It combines up to 600W of PoE power with SmartPower RPS (USP RPS) power redundancy.
The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(1) 1.3" LCM color touchscreen with AR switch management
(40) GbE, PoE+ RJ45 ports
(8) GbE, PoE++ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
600W total PoE supply
Near-silent cooling
Layer 3 switching features
Managed with the UniFi Network application: Version 5.10.5 and later
Frequently asked questions5 questions
How many ports does the USW-Pro-48-PoE have, and which support PoE?
It has 48 GbE RJ45 ports, of which 40 are PoE+ and 8 are PoE++, plus 4 10G SFP+ ports. The RJ45 ports run at 1G/100M/10M, and the SFP+ ports at 10G/1G.
How much PoE power can this switch supply?
It provides 600W of total PoE power. Per-port output is up to 32W on PoE+ ports and 60W on PoE++ ports.
Does it support Layer 3 features and VLANs?
Yes. It is a Layer 3 managed switch with inter-VLAN routing, static routing and a DHCP server. It supports up to 1,000 VLANs and 256 IPv4 static routes.
Can it be connected to a backup power source?
Yes. It has a USP RPS DC input for SmartPower RPS power redundancy, in addition to its internal 660W AC/DC power supply (100–240V AC, 50/60 Hz).
How is the switch managed and what size is it?
It is managed through the UniFi Network application (version 5.10.5 and later), on the web or mobile app, and has a 1.3" colour touchscreen for on-device management. It is a 1U rack-mount unit measuring 442 x 400 x 44 mm.
Customer reviews
5.0
· 2 reviews
★★★★★Collected by reviews.io · Aug 2024
Nice Switch. Simple with Ubiquiti’s proprietary setup and online interface. Great features and port visibility for the price. Simply diagnose bad wiring with lost frame detection.
AlexSpecifications38 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442 x 400 x 44 mm / (17.4 x 15.7 x 1.7") |
| Port Layout · 1 GbE RJ45 | 48 (40 PoE+; 8 PoE++) / (1G/100M/10M) |
| Port Layout · 10G SFP+ | 4 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 176 Gbps |
| Total Non-Blocking Throughput | 88 Gbps |
| Forwarding Rate | 131 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 40 |
| PoE Ports · PoE++ | 8 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 60W (Excluding PoE Output) / 660W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 660W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 204.7 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) / With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 13790-20-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 5.10.5 and later< |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-PRO-48-POE · Ubiquiti's spec sheet
