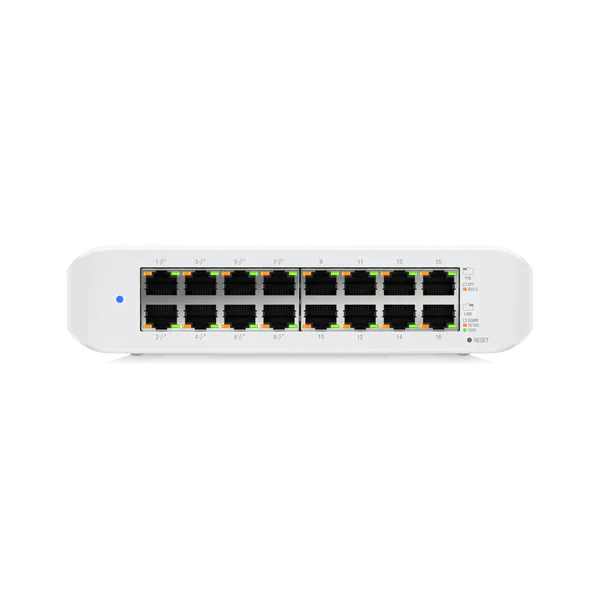

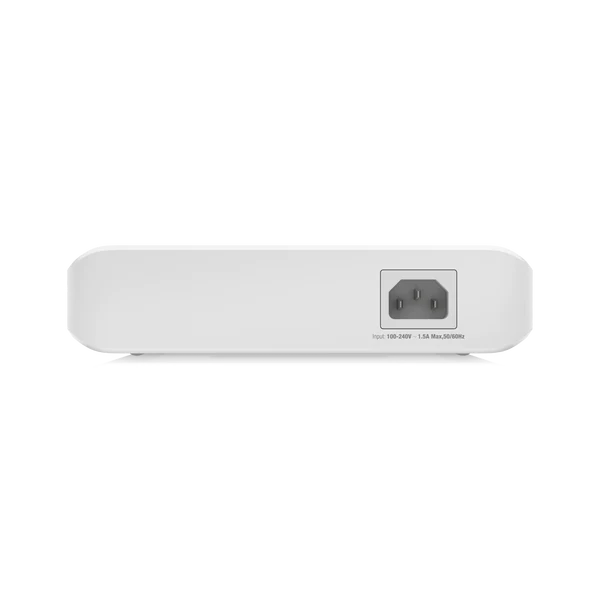

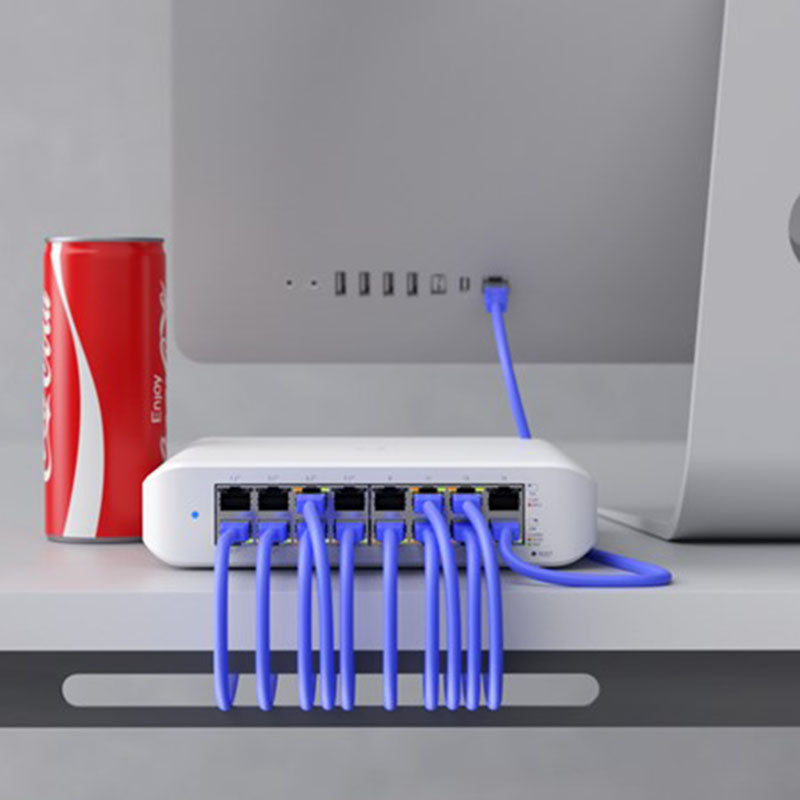

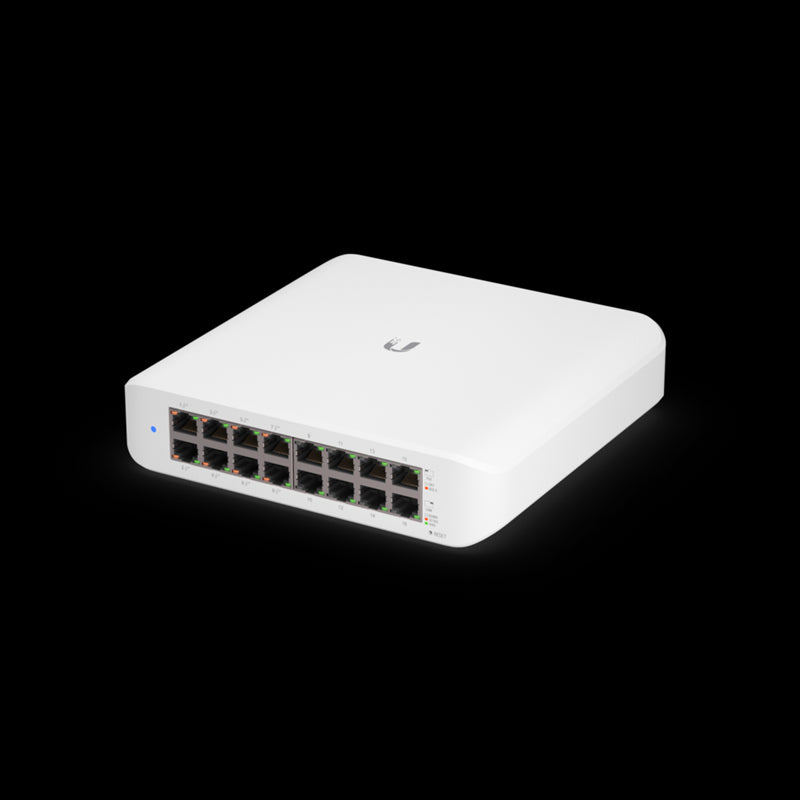

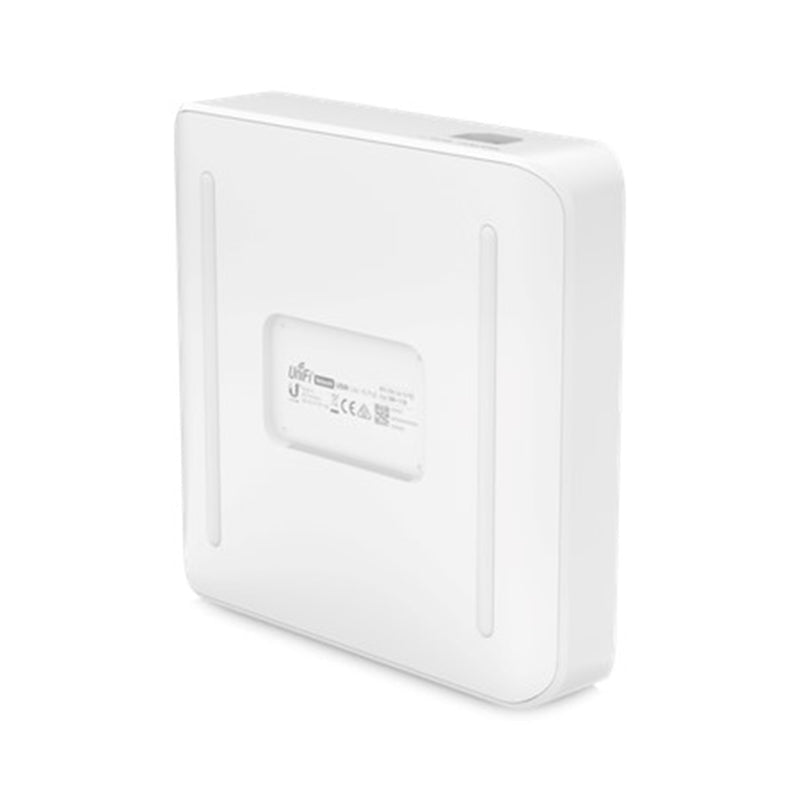

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
USW-LITE-16-POE
USW-Lite-16-PoE Ubiquiti UniFi Switch Lite 16 PoE
$390.30 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Layer 2, PoE switch with (16) GbE RJ45 ports, including (8) PoE+ ports.
The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices.
The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
(8) GbE, PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling
Wall-mountable (kit included)
Managed with the UniFi Network application: Version 5.13.5 and later
Frequently asked questions5 questions
How many ports does the USW-Lite-16-PoE have, and how many support PoE?
It has 16 Gigabit RJ45 ports that run at 1G, 100M or 10M. Eight of these are PoE+ ports, and the other eight are standard GbE ports.
How much total PoE power is available?
The switch provides 45W of total PoE supply, shared across its eight PoE+ ports. Each PoE+ port can deliver up to 32W, so the total budget limits how many high-draw devices can run at once.
How is the switch managed?
It is a fully managed Layer 2 switch controlled through the UniFi Network web application and mobile app, so it can be monitored and configured remotely. It supports up to 1,000 VLANs.
Is the USW-Lite-16-PoE silent, and can it be wall-mounted?
Yes, it uses fanless, silent cooling. It is a compact desktop unit that can also be wall-mounted, and a wall-mount kit is included.
What power supply does it use?
It has an internal 60W AC/DC power supply with a universal 100–240V AC, 50/60 Hz input. Maximum power consumption is 15W excluding PoE output and 60W including PoE output.
Customer reviews
5.0
· 4 reviews
★★★★★Collected by reviews.io · Aug 2024
Great Network Switch!
Wade
★★★★★Collected by reviews.io · Aug 2024
Small and powerful , great price for small deployment in clients home networks
Ty
★★★★★Collected by reviews.io · Apr 2024
Awesome product
KevinSpecifications29 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 192 x 185 x 44 mm / (7.6 x 7.3 x 1.7") |
| Port Layout · 1 GbE RJ45 | 16 (8 PoE+) / (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 45W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 32 Gbps |
| Total Non-Blocking Throughput | 16 Gbps |
| Forwarding Rate | 24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 8 |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. Power Consumption | 15W (Excluding PoE Output) / 60W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Heat Dissipation | 51.2 (Excluding PoE Output) |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 7.2.94 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model USW-LITE-16-POE · Ubiquiti's spec sheet
