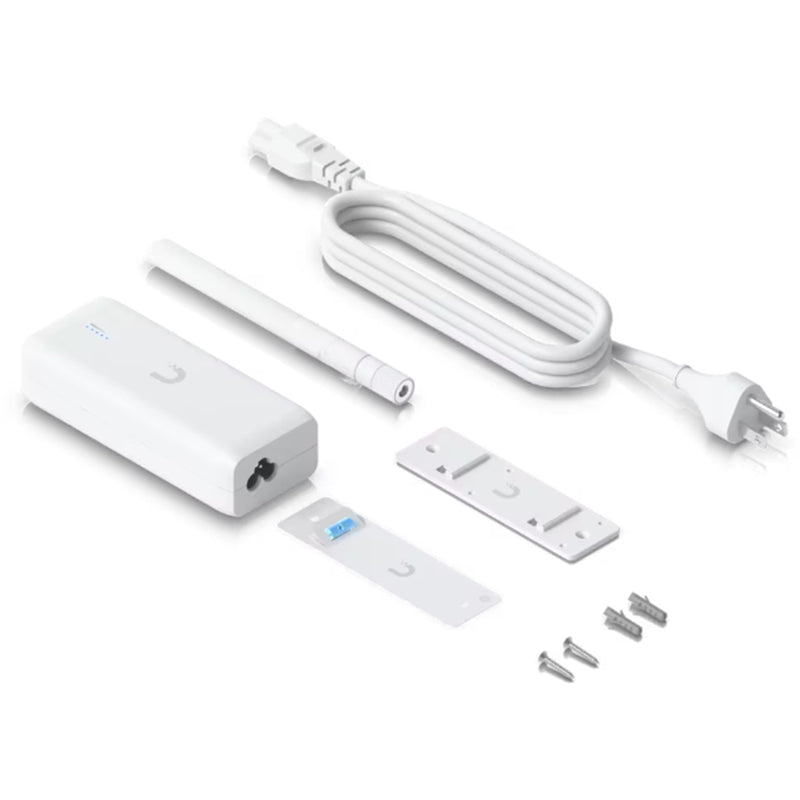

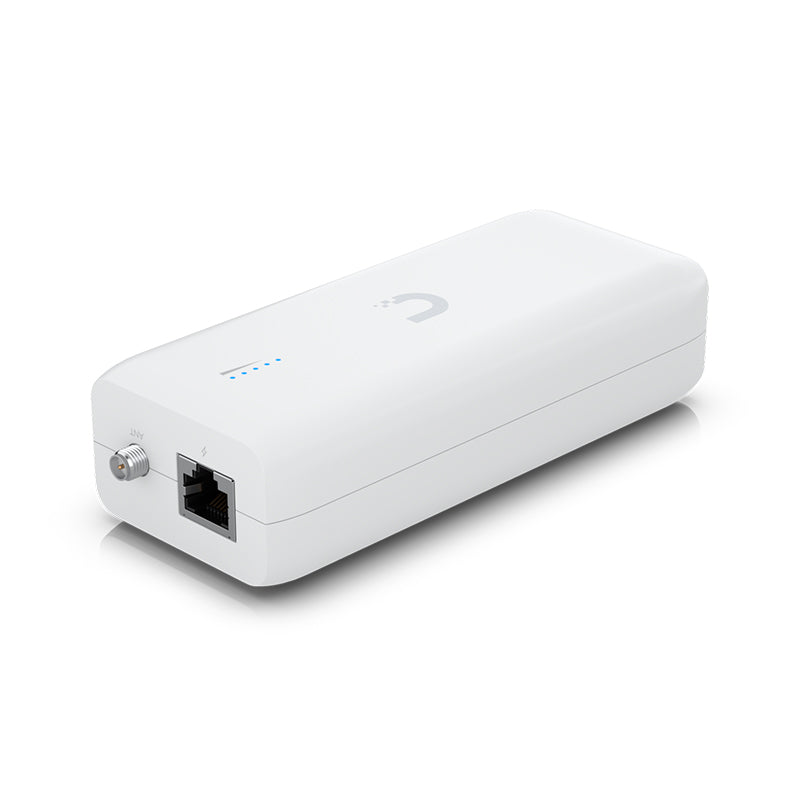

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UDB
UDB Ubiquiti UniFi Device Bridge
$214.37 AUD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description

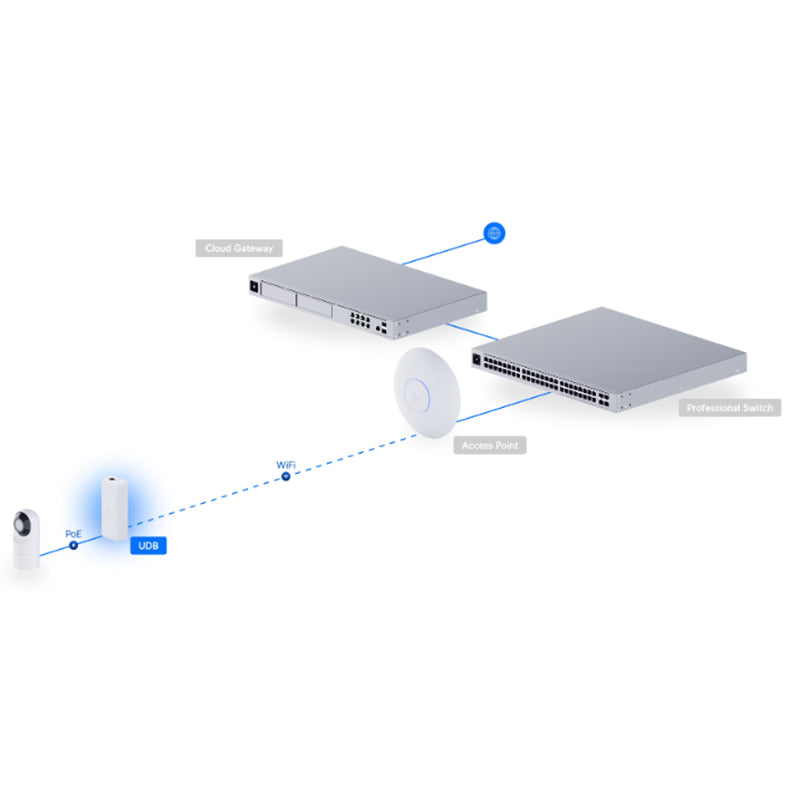

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Features:
(1) GbE LAN port that provides up to 15W of PoE
5 GHz band with up to 867 Mbps throughput rate
Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Note. UniFi Consoles and APs must have the latest software updates installed.
Customer reviews
5.0
· 1 review
Specifications29 specifications · 3 sections
| Overview | |
|---|---|

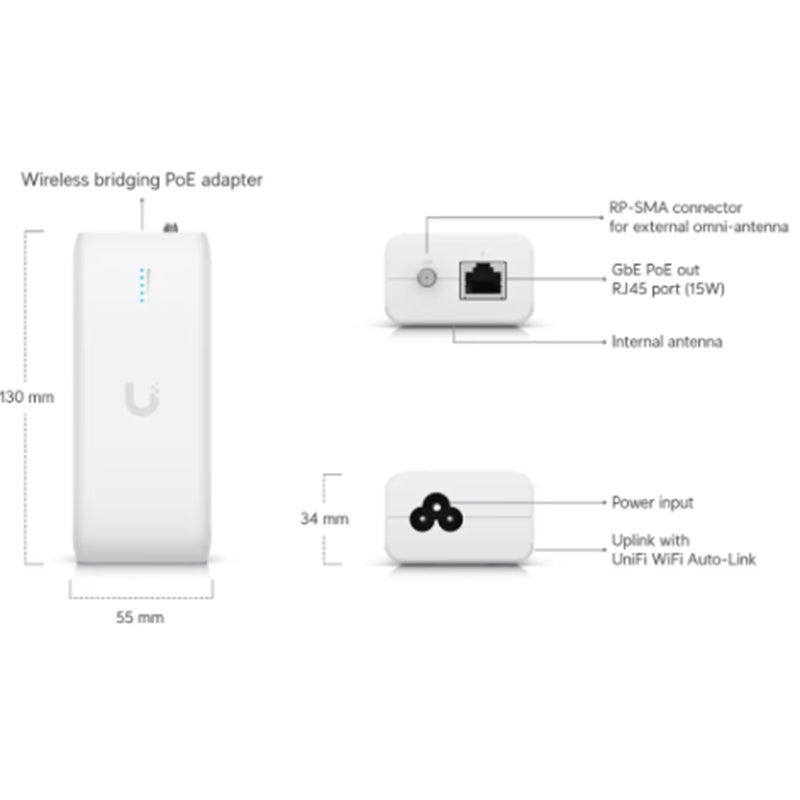

| Dimensions | 130 x 55 x 34 mm / (5.1 x 2.2 x 1.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |

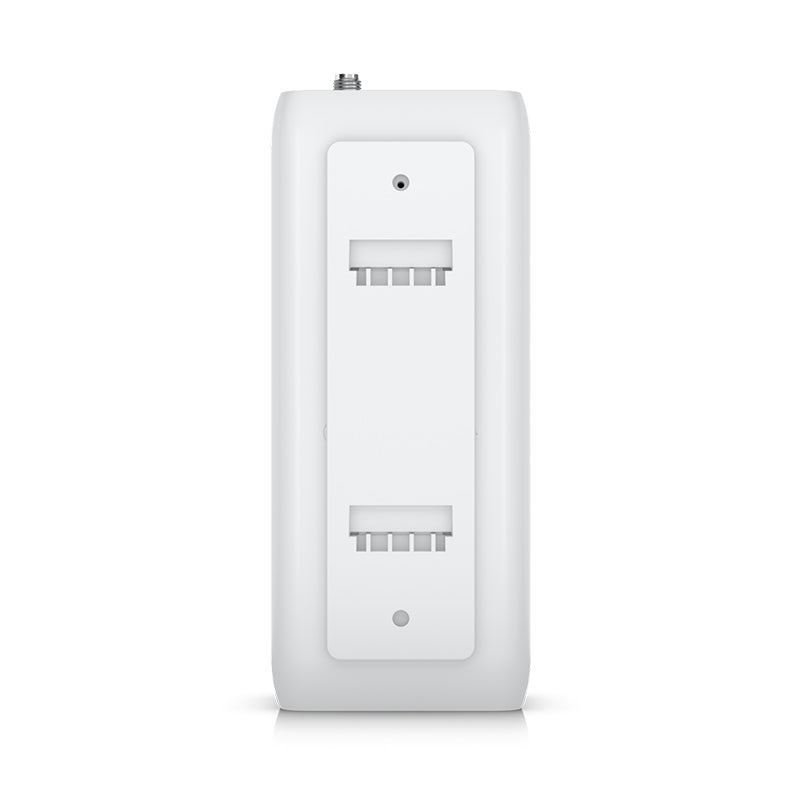

| Mounting Locations | Wall, table |
| Mounting | Wall (Included) |

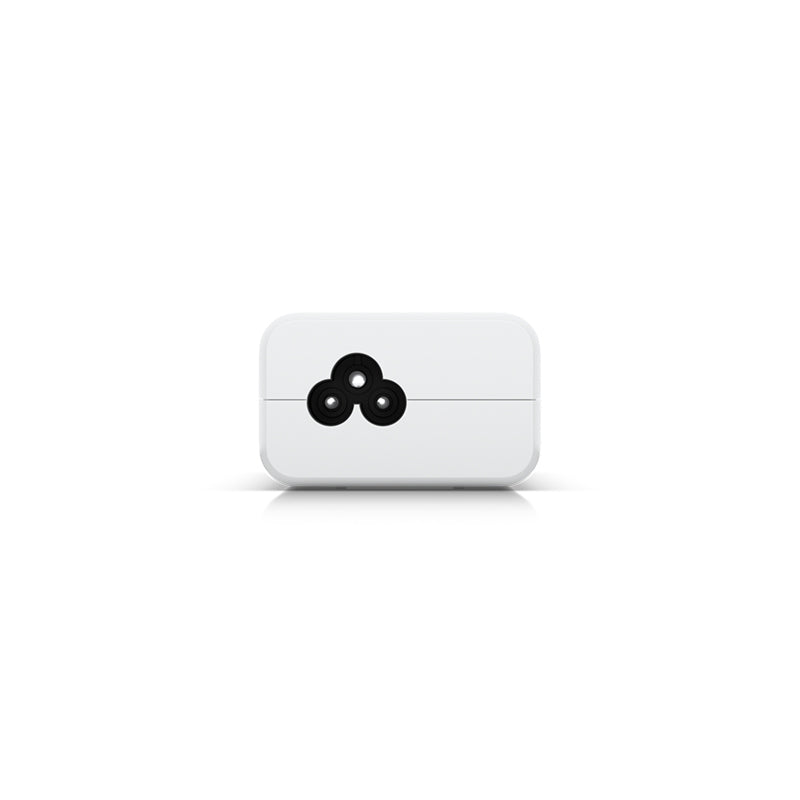

| Power Method | 100–240V AC, 0.45A Max., 50/60 Hz |
| Performance | |
| MIMO · 5 GHz | 2 x 2 |
| Max. Data Rate · 5 GHz | 866.7 Mbps (BW80) |
| Antenna Gain · 5 GHz | Internal: 5 dBi / External omni: 4 dBi, 360° x 30° |
| Max. TX Power · 5 GHz | 21 dBm |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 25W (AC input) / 10W (Excluding PoE output) |
| Supported Voltage Range | 100–240V AC |

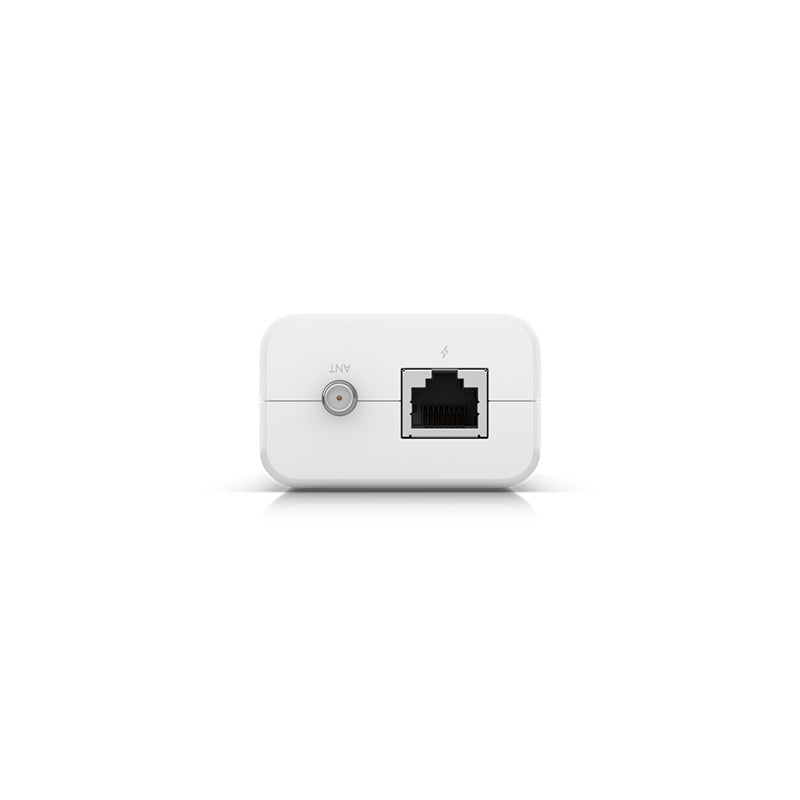

| Networking Interface | (1) GbE RJ45 port |
| Antennas | (1) Internal antenna / (1) RP-SMA connector for external omni-antenna |
| Management | WiFi |
| Channel Bandwidth | 20/40/80 (MHz) |
| Weight | 200 g (7.1 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

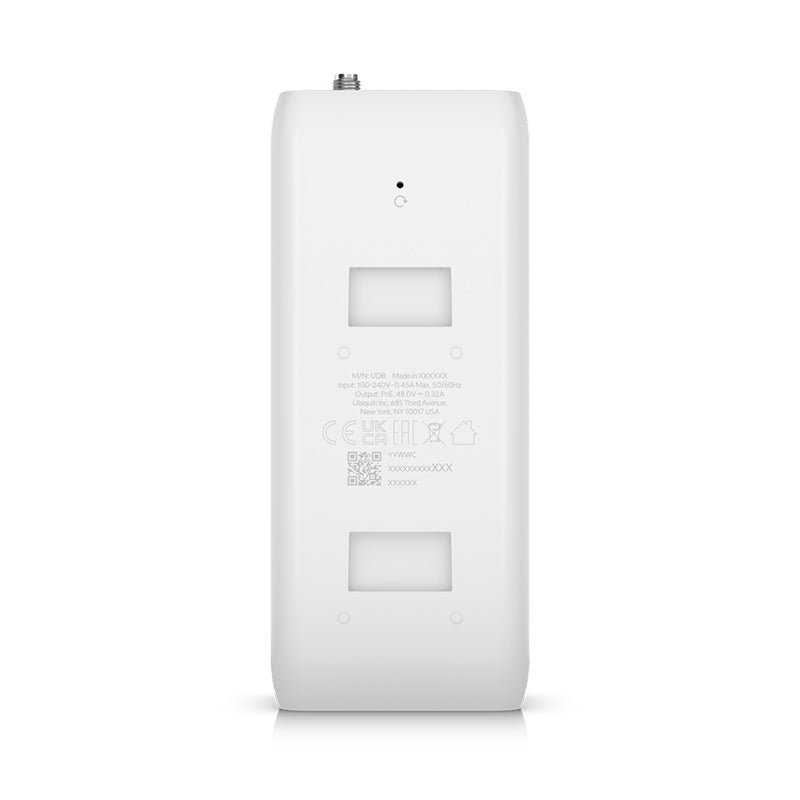

| Button | (1) Factory reset |

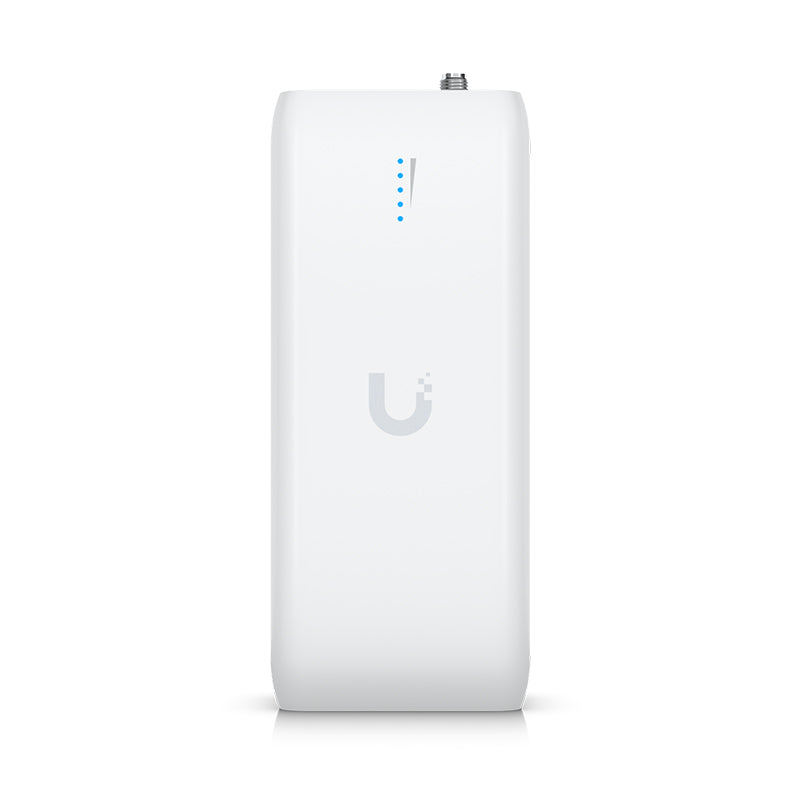

| LEDs · System | (4) Blue: signal / (1) White/blue: indicator |
| Certifications | CE, FCC, IC, Anatel: 03885-25-08356 |
| Operating Frequency | US/CA: / U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz / / Worldwide: / 5150 - 5875 MHz |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model UDB · Ubiquiti's spec sheet
